Caveats:
(1) The Oculink interface does not support hot-swapping, so be sure to turn off the power when plugging or unplugging cables.
(2) The Oculink port has a "fixed lock" design, when unplugging the OCULINK port, you need to press the switch to unlock it.
(3) The built-in power supply is for Dock use only, please do not use it for other purposes.
(4) Hot plugging and unplugging is only available for TGX devices.
Main Features:
AOOSTAR AG01 EGPU Dock adopts an open metal body design, an aluminum alloy profile middle frame, and measures 22.5 x 11 x 6cm, 1.5KG, and the graphics card is not limited in length.

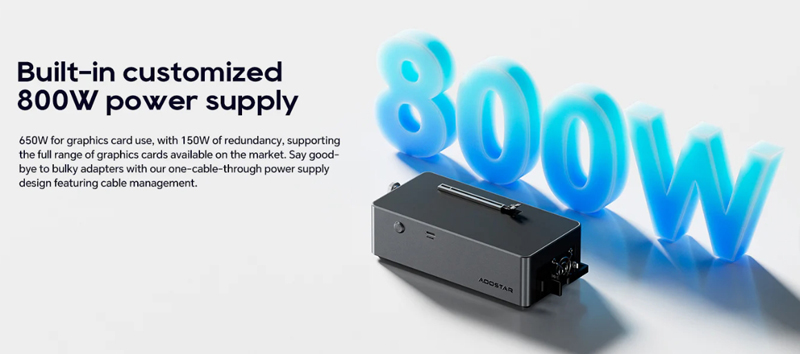

AOOSTAR AG01 has a built-in customized 800W power supply, which can realize the power supply one-line communication and comes with a hub design.
Compatible with
AOOSTAR AG01 is compatible with most of the EGPUs on the market today.
OCuLink & TGX Ports
The OCuLink interface provides 64Gbps of effective bandwidth for PCIe 4.0 x4 lanes, and the dock is hot-swappable for the TGX interface of the 2024 Lenovo ThinkBook 14+ / 16+ Core Edition laptops.
Specification:
Power: 800W
Interface configuration: 1 OCuLink interface, 3 x 8-pin graphics card power connectors
Device support: Built-in PCIE x16 interface, the maximum power consumption of the graphics card supports 600W, which basically meets the needs of most existing graphics cards
Power input: AC 220V~ 50/60Hz
OS: Support Mac & Windows (Win 11 22h2 or higher recommended)
Size: 22.5CM*11CM*6CM
What In Box
- 1 x AOOSTAR AG02 EGPU Dock
- 1 x Oculink cable
- 1 x Power supply
- 2 x Switch Cable
- * The GPU is not included.
