Quick View

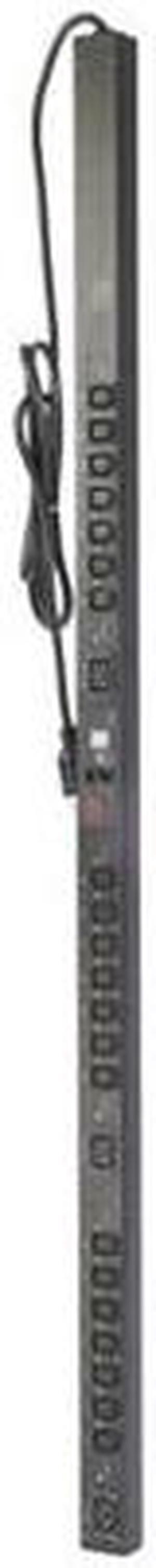

APC Basic Rack 3680VA PDUInput Voltage: 230 V ACFeatures: Package Contents:
Basic Rack 3680VA PDU
Installation Guide
Toolless Mounting Kit
Current:16 A Input Current
16 A Output Current
Number of Output Connections:20
4
Output Receptacles:20 x IEC 320-C13
4 x IEC 320-C19
Power Rating:3.68 kVA
Power Rating:3.68 kVA
Product Name:Basic Rack 3680VA PDU
Color:Black
Input Receptacles:IEC 320-C20
Product Type:PDU
Form Factor:Zero U
Form Factor:Zero U Rack-mountableDimensions: 64.0" Height x 2.2" Width x 1.7" DepthWeight: 10.70 lbModel #: AP7552
Quick View
APC AP9607 Interface Expander SmartSlot CardType: Expansion CardCompatibility: SmartUPS
MatrixUPS
Symmetra Power Array
Silcon UPSSpecifications: Proprietary Slot Type: SmartSlot
Ports: 2 x DB-9 Serial
Temperature:
32°F (0°C) to 95°F (35°C) Operating
5°F (-15°C) to 149°F (65°C) Storage
Humidity:
0 to 95% Relative Humidity Operating
0 to 95% Relative Humidity Storage
Altitude:
0 ftto 10000 ft Operating
0 ftto 50000 ft StorageParts: 2 years limitedModel #: AP9607
Quick View
APC AP9628 5000VA Step-Down Rack-mountable TransformerType: Step Down TransformerSpecifications: Output Connections: 1x Hard Wire 3-wire (H N + G)
Nominal Input Voltage: 208V
Input Frequency: 60 Hz +/- 3 Hz
Input Connections: Hard Wire 3-wire (2PH + G)
Number of Power Cords: 1
Maximum Input Current per phase: 26A
Load Capacity: 5000 VA
Operating Environment: 32 - 104 °F (0 - 40 °C)
Operating Relative Humidity: 0 - 95%
Operating Elevation: 0-10000 feet (0-3000 meters)
Storage Temperature: -13 - 149 °F (-25 - 65 °C)
Storage Relative Humidity: 0 - 95%
Storage Elevation: 0-50000 feet (0-15000 meters)
Regulatory Approvals: CSA, UL 1778, UL ListedDimensions: 3.50" x 17.50" x 24.00" (H x W x D)Weight: 95.00 lbs.Model #: AP9628
Quick View
APC AP9620 Legacy Communications SmartSlot CardType: ModuleCompatibility: UPSSpecifications: Options that provide additional monitoring and control functionality.
Interfaces/Ports Details:
1 x USB USB 2.0
1 x DB-9 Serial
1 x LED
Color: Black
Environmental Compliance: RoHS 7b Exemption,REACH: Contains No SVHCsDimensions: 1.50" x 4.75" x 4.50"Model #: AP9620
Quick View
APC AP9631 UPS Network Management Card 2 with Environmental MonitoringType: Management CardSpecifications: Operating Environment: 0 - 45 Degree Celcius
Operating Relative Humidity: 0 - 95 %
Operating Elevation: 0 - 10000 Feet
Storage Temperature: -5 - 45 Degree Celcius
Storage Relative Humidity: 0 - 95 %
Storage Elevation: 0 - 50000 Feet
Approvals AS/NZS 3548 (C-Tick) Class A, EN 55022 Class A, EN 55024, FCC Part 15 Class A, GOST, ICES-003, VCCI Class A
RoHS CompliantDimensions: 1.50" x 4.75" x 4.50"Weight: 0.20 lb.Model #: AP9631
Quick View

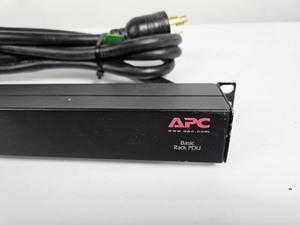

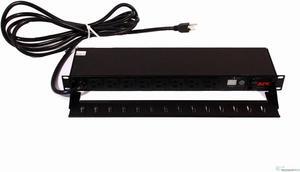

APC Rack Mount PDU, Basic 200V-230V/16A, (12) Outlets, 1U Horizontal Rackmount (AP9565)Certifications: cUL Listed, CE, Queensland Australia, UL 60950, UL Listed, VDEROHS: YesInput Voltage: 200V, 208V, 230VInput Frequency: 50/60 HzModel #: AP9565
Quick View

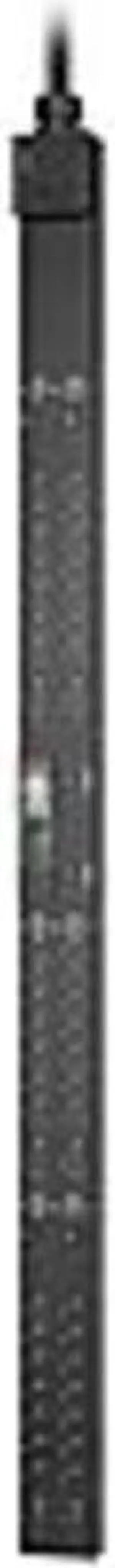

Used - Good APC AP7940 Switched 0U 200V, 208V 20A 10 ft Rack PDUStyle: RackRemote Management Protocol: HTTP, SNMP & TelnetRack Mounting Kit: Includes: Cord retention bracket(s), Rack Mounting brackets, Toolless Mounting Kit, User ManualCertifications: cUL Listed, CSA, FCC Part 15 Class A, ICES-003, Industry Canada, METI Denan, PSE, UL 60950, UL Listed, VCCIModel #: AP7940
Quick View
APC AP9878 C19 to C14 Power CordType: Power CordSpecifications: Output Connections: 1 x IEC 320 C19
Input Connections: IEC-320 C14
Cord Length: 6.5 Feet
Maximum Line Current per phase: 10AModel #: AP9878
Quick View
$269.99 $255 .99 – Save: $14.00 (5%) Free Shipping
