Specification: Service Voltage: 24 V
MCOV: 33 V
Clamping Voltage: 39 V
Protection Modes: Line-Ground (All)
Surge Current Rating: 20,000 A
Max Continuous Current: 5 A
Data Rate: 200 kbps to 2 Mbps

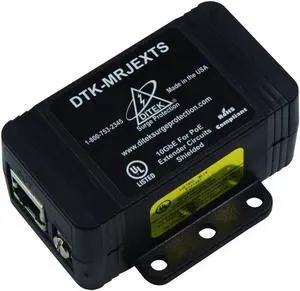

Specification: Service Voltage: 48 V
MCOV: 64 V
Clamping Voltage: 72 V
Protection Modes: Line-Ground (All); All 8 pins are protected
Surge Current Rating: 30 A / pair
Max. Continuous Current: 1.5 A
Power Handling: 72 Watts / pair ; 144 Watts / port
Data Rate: Gigabit Ethernet
Dissipation: 3000 W / pair (10/1000 µs impulse)
Specifications: 4K Support: Yes
Bus Type: USB-C
Chipset ID: Genesys Logic - GL3523 (USB Hub), Realtek - RTL8153 (LAN), Parade Technologies - PS176 (HDMI)
Displays Supported: 1
Fast-Charge Port(s): No
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Connector Type: 1 - USB Type-C (24 pin) USB 3.0 Male
OS Compatibility: Windows 7, 8, 8.1, 10 / Mac OS 10.10 to 10.12 / Chrome OS
Note:
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
A 4K-capable display is required to achieve 4K x 2...
