Certifications: Tested to UL60950-1: 2007 R10.14 (USA), CAN/CSA-C22.2 NO. 60650-1-07+A1: 2011+A2: 2014 (Canada), Class A Part 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Front Panel LEDs: 8 LEDs display power on-off status for each C13 output receptacle, plus 2 additional LEDs to indicate input power status for primary and secondary inputs
Certifications: Tested to UL 60950-1 (USA, Canada), CE (EU), NOM (Mexico), GOST (Russia), EN55032:2015 and EN62040-2:2006, FCC Class A (Emissions), TAA Compliant
Features: Power Rating:5.76 kVA
Form Factor:Horizontal Rackmount
Toolless-mount
Vertical Rackmount
Product Type:PDU
Color:Black
Power Rating:5.76 kVA
Form Factor:Horizontal Rackmount
Toolless-mount
Vertical Rackmount
Input Receptacles:NEMA L21-20P
Product Name:Metered Rack PDU
Output Receptacles:24 x NEMA 5-20R
6 x NEMA L6-20R
Package Contents:
Metered Rack PDU
Installation Guide
Rack Mounting Brackets
Safety Guide
Serial Configuration Cable
Features: Package Contents:
Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19
Installation Guide
Rack Mounting Brackets
Safety Guide
Serial Configuration Cable
Number of Output Connections:12
30
Output Receptacles:12 x IEC 60320 C19
30 x IEC 60320 C13
Power Rating:17.30 kVA
Power Rating:17.30 kVA
Current:24 A Derated Input Current
24 A Total Current Draw Per Phase
30 A Input Current Per Phase
30 A Line Current Per Phase
Color:Black
Product Type:PDU

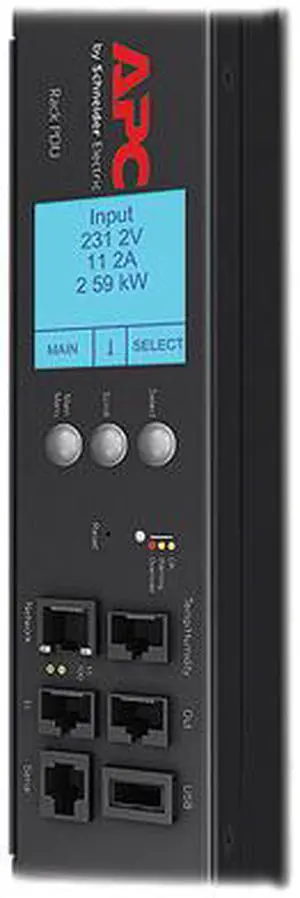

Product Name:Rack PDU 2G, Metered, ZeroU, 17.3kW, 240V, (30) C13 & (12) C19
Form Factor:Zero U
Form Factor:Zero U Rack-mountable
Dimensions: 72.0" Height x 2.2" Width x 2.0" Depth
Front Panel LEDs: Front panel LEDs confirm amp (A) / kilowatt (kW) / voltage (V) / frequency (Hz) and power factor (PF) reporting information; Additional set of LEDs indicate Source A and Source B inputs for preferred, available and in-use status
Certifications: Tested to UL/CSA 60950-1 (USA, Canada), FCC Class A (Emissions), NOM (Mexico)
Specifications: Form Factor: Horizontal
Number of Power Outlets: 8
Rack-Mountable: Yes
Load Capacity: 1920 VA
Maximum Output Voltage: 240V
Maximum Total Current: 20A
Maximum Total Current Draw per Phase: 20A
Nominal Input Voltage: 110V - 240V
Nominal Output Voltage: 110V - 240V
Phase Power: Single phase power adapter
Power Cord Included: 10 ft [3m] C19 to NEMA5-20p
Regulatory Derated Input Current (North America): 16A
Surge Protection: 3600 Joules
Input Connector(s): 1 - IEC C20 (16A, 3 conductor) Power Plug Input
Output Connectors: 8 - IEC C13 (10A, 3 conductor) Power Receptacle Receptacle Output
Input Voltage: 110V - 240V AC
Included in Package
1 x rack-mount PDU
1 x 10 ft [3m] C19 to NEMA5-20p power cord
4 x M5 screws
4 x M5 cage nuts
1 x instruction manual
