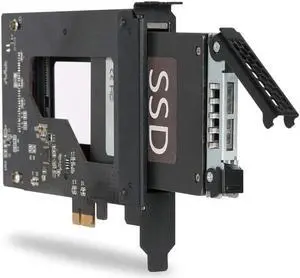

Mobile Rack Drives Support: 1 x 2.5" Drive to PCI Slot
Mobile Rack Interface: SATA I/II/III
Specifications: Max. HD Capacity: 500 GB
Enclosure Type: Aluminum and Steel
Compatible Drives: 2.5" SATA
Host Connectors: 1 - 7 pin SATA DATA Male
Host Connectors: 1 - 15 pin SATA Power Male
Drive Connectors: 1 - 7 pin SATA DATA Female
Drive Connectors: 1 - 15 pin SATA Power Female
Specifications: Supports any computer cases with an available 3.5" drive bay (both screw-on type or tool-less type)
Converts an available 3.5" HDD bay drive to accommodate two 2.5" HDD or SSD (Solid State Drive)
Constructed from robust SECC steel to ensure maximum structural integrity.
Specifications: Drive Connectors: 1 - 29 pin SAS SFF-8482 Female Female
Host Connectors: 1 - 22 pin SATA DATA and Power Combo Male Male
1.70" x 7.10" x 5.70"
14.10 oz.
Mobile Rack Drives Support: 1 x 3.5" Drives to 5.25" Bay
Mobile Rack Interface: SATA I/II
Specifications: Hard Drive Compatibility: 3.5-Inch SATA/300(SATA II) or SATA/150 (SATA I) Hard Drives
System Requirements: PC or Mac with a 5.25 Inch Drive Bay
Drive Drawer Dimensions: 7.5" x 5.8" x 1.6"
Cooling Fan: Ball-Bearing Fan
Fan Dimensions: 40 x 40 x 10mm
Fan Enclosure: Plastic
Drive Drawer Enclosure: Aluminum
Drive Size: Supports up to 750Gb hard drive
Note: Unit is model specific and is not meant for use with different models of drive drawer unless otherwise stated
Specifications: Convert any 2 2.5" Hardrive into a 3.5" drive bay
Compatible with all types of 2.5" hard drive. Including SSD DRIVES!!!
Quick and easy installation
For use in 3.5" internal drive bay
Screw pack included to mount the drives
Internal 3.5" Drive Bays: 8 x 3.5" HDD positions, 2 x Extra positions for either 3,5" or 2,5" drives, 1 x slim-line slot loading optical drive location
Specifications: Color: Black
Drive Connectors: 1 - SFF-8482 (29 pin; Data & Power; Internal SAS) Receptacle
Drive Installation: Removable
Drive Size: 2.5in
Drive Type: SAS & SATA
Enclosure Type: Plastic
Fan(s): No
Host Connectors: 1 - SATA Data & Power Combo (7+15 pin) Plug
Key Lock: No
Max Drive Height: 0.59 in [15 mm]
Number of 2.5 inch bays: 1
Number of Drives: 1
Mobile Rack Drives Support: Multi 2.5" Drives to 3.5" Bay
Mobile Rack Interface: SATA I/II
Specifications: Product name: DataPort 25 SATA 6G
Host (I/O) Ports: (1) SATA: up to 6 Gbps
Drive Types Supported:
SATA 2.5" drives
SATA SSD (solid state drives)
SATA Speed: 6G
Insertion Rating: up to 30,000 carrier insertions
Number of bays: 2
Number of LEDs: 2
Description of LEDs: Power, drive activity
Construction material(s): Rugged all-metal construction
Dimensions: 6.10" x 4.02" x 1.02" (155mm x 102mm x 26mm)
Weight: 0.90 lbs. (0.41 kg)
Compliancy: FCC, CE, RoHS
Mobile Rack Drives Support: 1 x 3.5" Drives to 5.25" Bay
Mobile Rack Interface: SATA I/II/III/SAS
Specifications: Product name: DX115 SAS/SATA 6G
Host (I/O) Ports: (1) SAS/SATA: Up to 6 Gbps
Drive Types Supported:
SATA 3.5" drives
SAS 3.5" drives
SATA Speed: 6G
Insertion Rating: up to 30,000 carrier insertions
Number of bays: 1
Number of LEDs: 2
Description of LEDs: Drive activity
LEDs on each bay: Power and drive access
Construction material(s): Rugged metal construction
Dimensions: 8.07" x 5.83" x 1.61" (205mm x 148mm x 41mm)
Weight: 2.50 lbs. (1.13 kg)
Populated Weight: 4.15 lbs. (1.88 kg)
Compliancy: FCC, CE, RoHS, C-Tick
Mobile Rack Drives Support: 2.5" & 3.5" Drives to 1 x 5.25" Bay
Mobile Rack Interface: SATA I/II/III/SAS
Specifications: Case Style: Removable Drive Case
Bays: 1 x 3.5" - 1/3H Internal
Drive Support: 1
Drive Type:
SAS
Serial ATA/300
Interfaces/Ports: 1 x SAS Internal
Color: Black
Form Factor: Internal Hot-swappable
Bays Required: 1 x 5.25" - 1/2H Front Accessible
Specifications: Support Drive Size: 4 x M.2 SSD (2230~22110)
Compatible Drive Type: NVMe PCIe Gen 4x4
Number of Drives: 4
Support Drive Length: 30mm - 110mm
Drive Bay: 1 x 5.25" half height bay
Host Interface: 4 x OCuLink(SFF-8612), pin-out defined by SFF-9402 Rev 1.1
Power Input: 2 x 15pin SATA power connector
Transfer Rate: Up to 64Gbps (Depending on SSD Speed)
Support SSD Capacity: No Limitation
Drive Cooling (Active): 2 x 40*40*20mm Fan
Structure / Material: Full Metal
Drive Security: 2 segment key lock
Support Hot-Plug: Yes (host must support hot-plug function)
Drive Activity LED Indication: Drive power: solid green; Drive access: flashing green
M.2 Connector Insertion Rate: 5,000
Humidity: 5%~65% RH
Operating Temperature: 0°C to 60°C (32°F to 140...
