PANAMAX M-5500 MAX 5500 Audio Video ACRegenerator

Be the first to review this product...
  • Power Conditioner / Surge Protector
  • Black
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the PANAMAX M-5500

Model
Brand PANAMAX
Model M-5500
Details
Type Power Conditioner / Surge Protector
Color Black
Specifications AC SPECIFICATIONS
Protect or Disconnect Circuitry: Yes
Thermal Fusing: Yes
Catastrophic Surge Circuit: Yes
Single Pulse Energy Dissipation: 2325 Joules
Spike Capacity: 91,000A
EMI/RFI Noise Filtration: 50dB - 120dB
Line Voltage: 120VAC, 50/60 Hz
Clamping Level (TVSS Voltage): 330V
Initial Clamping Level: 141V RMS/200V Peak
SurgeGate Plus: Yes
Overvoltage Shutoff: 137VAC
Undervoltage Shutoff: 95VAC
Protection Modes: L-N, N-G, L-G
Maximum Current Rating: 15A (1800W)
Response Time: <1ns

TELCO SPECIFICATIONS
SignalPerfect Circuitry: Yes
Fuseless / Auto Resettable: Yes
Clamping Level: 260v
Capacitance: 30pf (approx.)
Suppression Modes: Metallic & Longitudinal
Wires Protected: 1 pair, (4,5)
Connectors: RJ-11/45

COAX SPECIFICATIONS
Antenna/Cable Lines Protected: 2
Antenna/Cable Clamping: 0.7v
Antenna/Cable Attenuation: (5MHz-950MHz) <1dB
Satellite Lines Protected: 2
Satellite Clamping: 27v
Satellite Attenuation: (950MHz-2.20GHz) <1dB
Coax Connectors: Female

PRODUCT FEATURES
Number of Outlets: 11
Always On Outlets: up to 9
Switched Outlets: up to 4
Delayed Outlets: 2
Cord Length: 10 ft.
Connections: Straight
Length: 12"
Width: 17"
Height: 3.5"
Weight: 33 lbs
Features

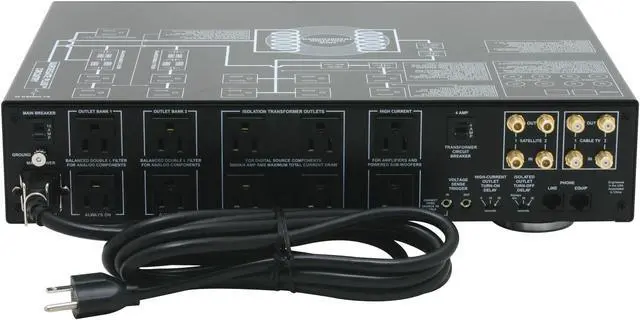

Features Tri-Power Filtration System
Four AC outlets are for digital source components and are completely isolated from the rest of the system.
Four more outlets use separate “balanced double L" filtration circuits to eliminate EMI/RFI noise.
Two delayed turn-on outlets provide clean, filtered power without limiting the current available to the connected equipment.

SurgeGate Plus Circuitry
A Power monitoring system that acts as a gate to prevent unsafe voltages from damaging sensitive electronic equipment. It automatically detects a prolonged over or undervoltage condition and disconnects the power to equipment, then reconnects it when the power returns to a safe level. This special circuitry acts as a gate to prevent unsafe voltages from damaging sensitive equipment.

SignalPerfect Technology
For 4 coaxial (2 satellite TV & 2 off-air/cable TV) lines and 1 pay-per-view telephone line provides optimized, application specific protection against signal line surges.

Protect or Disconnect Technology
Protection circuitry for catastrophic surges.

Convenience Features

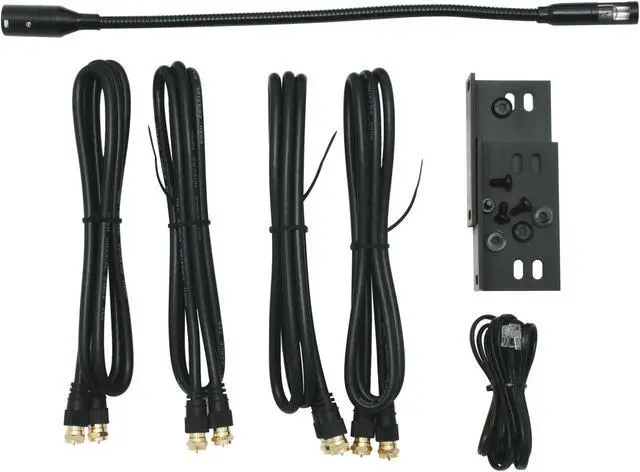

Detachable gooseneck lamp with dimmer control provides lighting for A/V equipment. DC Voltage trigger input and pass-through output for initiating a start-up/shut-down sequence. Backlit, analog Voltmeter and Ammeter indicates line voltage and current draw. On/Off, dimmer control on front panel.
