Peerless IM760PU 32"-71" In-Wall TV Wall Mount LED & LCD HDTV up to VESA 600x400 max load 200 lbs,Compatible with Samsung, Vizio, Sony, Panasonic, LG, and Toshiba TV
Used - Like New Product Type
- Max. load 200 lbs.
- Cable Management
- VESA Compatible
- Can be inverted to position screen to the right or left Stud-locating tabs adjust 1/4" left or right to accommodate stud spacing
- 5.56" - 23.74" Depth
+
+
Overview
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now

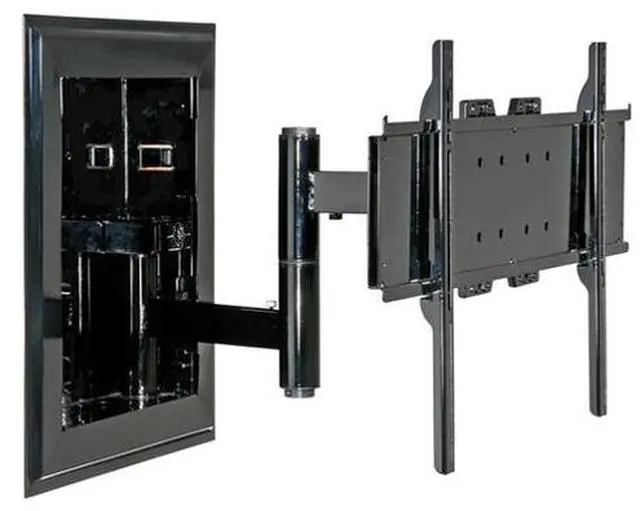

Peerless In-Wall TV Mount - IM760PU 32"-71"
Maximize your flat panel experience by installing it in the wall with Peerless-AV universal in-wall mounting solution for up to 71" displays. Installation is quick and easy thanks to the mount’s stud-locating tabs that fit the in-wall box snugly between 16" wood stud centers. View the flat panel display in its virtually no-profile home position, or extend the arm over 19" to watch it anywhere else within the room.
Features
- IM760PU models include universal adaptor plate to fit displays with mouting hole patterns up to 730 x 433mm (28.75" x 17.05")
- Can be inverted to position display to the right or left
- Universal brackets easily hook onto wall plate for an easy installation
- Decorative trim ring included for a clean installation
- Installs between 16" (406mm) wood stud centers
- Stud-locating tabs adjust ¼" (6mm) left or right to accommodate stud spacing
- Removable gang box and cable management access plates make installation easy
- Simplified Installation Stud locating tabs adjust 1/4" left or right to accommodate stud spacing
- In-Wall BoxInstalls between 16" centers

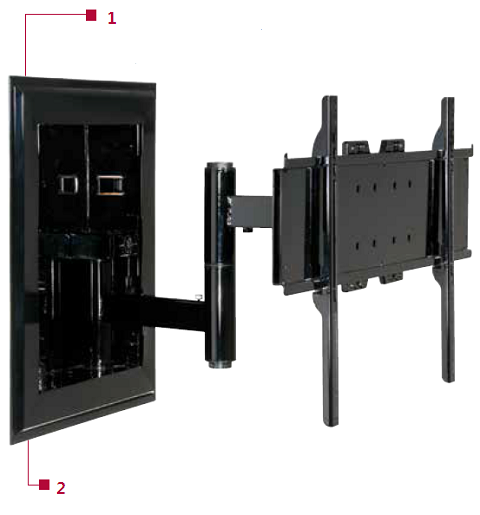

Removeable outlet receptacle
Stud locating tabs
Specifications
| Minimum to Maximum Screen Size: | 32" to 71" |
| VESA Pattern: | 600 x 400 |
| Mounting Pattern: | 730 x 433mm (28.75 x 17.05") |
| Weight Capacity: | 200lb (91kg) |
| Color: | Black |
| Finish: | High Gloss |
| Security Features: | Non-Security Hardware |
| Tilt: | +10 / -5 |
| Swivel Yaw: | +45 / -45 |
| Roll: | +7 / -7 |
| Distance from Wall: | 2.14 - 19.88" (54 - 505mm) |

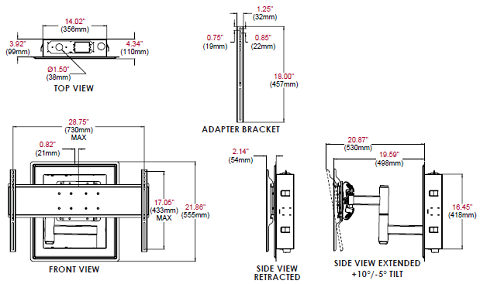

| Product Dimensions: | 30.75 x 21.86 x 4.34 - 23.80" (780 x 555 x 110 - 604mm) |
| Ship Dimensions: | 27.1875 x 8.625 x 32" (690.6 x 219.1 x 812.8mm) |
| Shipping Weight: | 58.49lb (26.53kg) |
| UPC Code: | 735029255154 |
