PLANET Technology - IGS-624HPT - Planet IGS-624HPT Ethernet Switch - 4 Ports - 2 Layer Supported - Modular - Optical

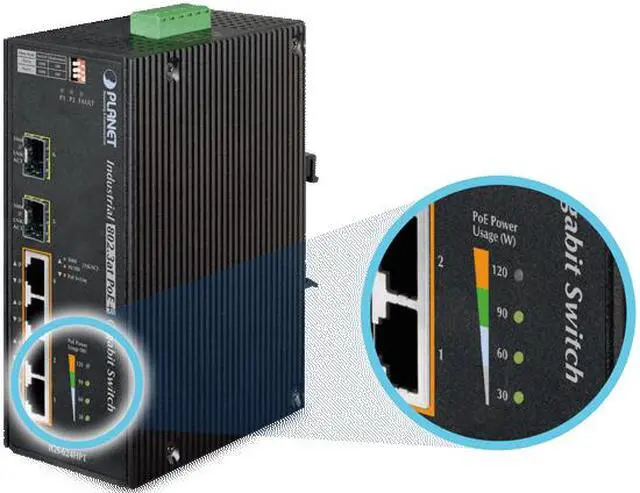

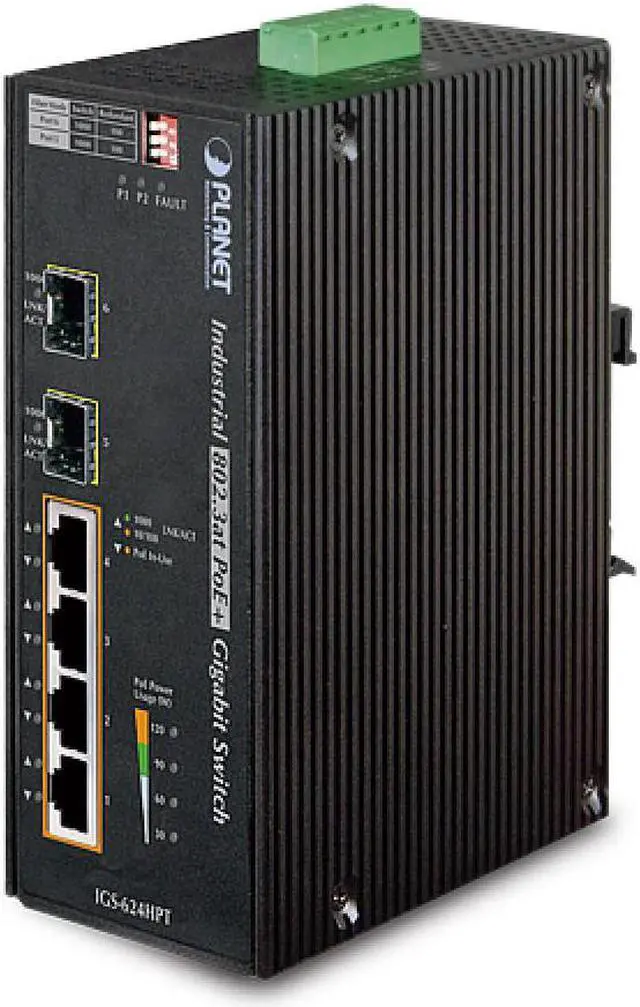

Long Distance High Power PoE and Gigabit Data Extension Solution The PLANET IGS-624HPT is an Industrial Gigabit 802.3 at PoE+ Switch providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It provides 4-port 10/100/1000Base-T copper with 802.3 af/at PoE injector and 2 extra 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGS-624HPT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.

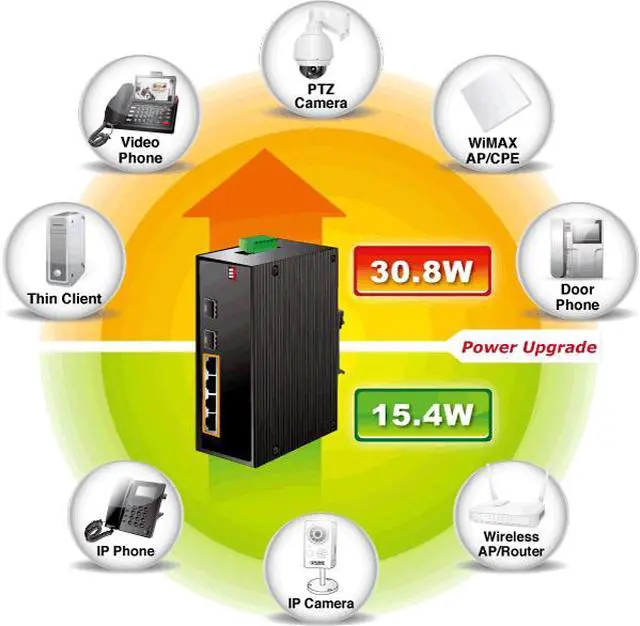

High Power PoE for Security and Public Service Applications To fulfill the demand of High Power PoE for network applications, the IGS-624HPT provides 4 10/100/1000Mbps ports featuring both IEEE 802.3 af and IEEE 802.3 at Power over Ethernet Plus (PoE+) that combine up to 30-watt of power output and data per port over one Cat. 5E / 6 Ethernet cable. With totally 120-watt PoE output capability on the whole system, the IGS-624HPT is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi-channel ( 802.11 a / b / g / n) outdoor wireless LAN access points and other PoE network devices by providing double PoE power, rather than the current conventional 802.3 af PoE.

Product Type: Ethernet Switch
Power Source: PoE
Layer Supported: 2
Product Type: Ethernet Switch
Manufacturer Part Number: IGS-624HPT
Power Source: PoE
Layer Supported: 2
Weight (Approximate): 3.39 lb
Form Factor: Wall Mountable
Form Factor: Rail-mountable
Network Technology: 10/100/1000Base-T
Network Technology: 1000Base-X
Network Technology: 100Base-FX
Network Technology: 1000Base-SX/LX
Network Technology: 1000Base-T
Form Factor: Wall Mountable
Form Factor: Rail-mountable
Manufacturer: PLANET
Technology Corp Product Model: IGS-624HPT
Product Name: IGS-624HPT Ethernet Switch
Network Technology: 10/100/1000Base-T
Network Technology: 1000Base-X
Network Technology: 100Base-FX
Network Technology: 1000Base-SX/LX
Network Technology: 1000Base-T
Brand Name: Planet
Brand Name: Planet
Expansion Slot Type: SFP
Expansion Slot Type: SFP
Height: 2.8
Width: 6
Depth: 4.2
Manageable: No
Ethernet Technology: Fast Ethernet
Ethernet Technology: Gigabit Ethernet Number of Total
Expansion Slots: 2
Stack Port: No
Media Type Supported: Twisted Pair
Media Type Supported: Optical Fiber Total Number of
Network Ports: 4
Port/Expansion Slot Details: Gigabit
Ethernet Manageable: No
Ethernet Technology: Fast Ethernet
Ethernet Technology: Gigabit Ethernet Number of Total
Expansion Slots: 2 Number of
SFP Slots: 2
Modular: Yes
Uplink Port: No
Stack Port: No
Media Type Supported: Twisted Pair
Media Type Supported: Optical Fiber Total Number of
Network Ports: 4
Shared SFP Slot: No
Port/Expansion Slot Details: 2 x Gigabit Ethernet Expansion Slot Port/Expansion Slot Details: 4 x Gigabit Ethernet Network
