MPPT Charge Controller 60 amp, 12V 24V Auto 60A Solar Panel Charge Regulator, Max 100V Input with LCD Display for Lead-Acid Sealed Gel AGM Flooded Lithium Battery
- AUTOMATICALLY DETECTS 12V/24VMax 100VDC SYSTEMS,Dual USB give your electronic product MAX 5V 2.4A.Support sealed,Gel,Flooded Lead-acid battery and lithium battery.Three stages(constant current, constant voltage, floating charge)
- POSITIVE GROUND MPPT CONTROLLER - The solar panel charge controller is equipped with high tracking efficiency up to 99%, hardly wasting the energy from solar panels.with three load Timer:ON/OFF mode,PV&Time control mode,PV voltage control mode,Dual Time control mode.

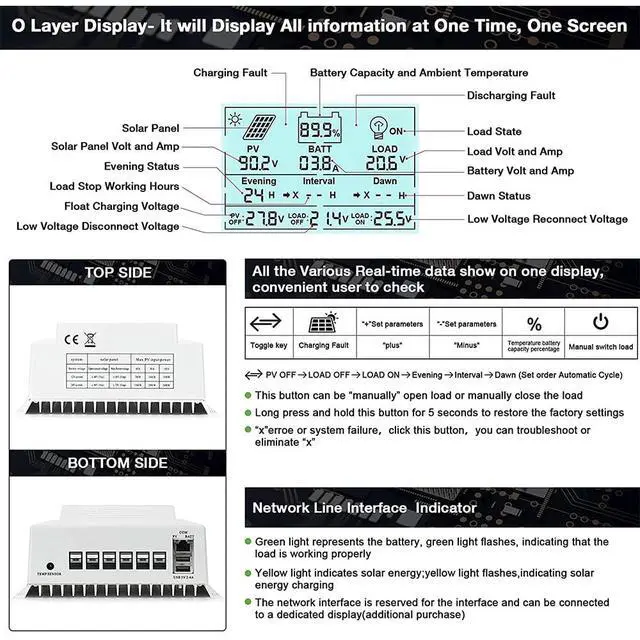

- MULTIFUNCTIONAL LCD DISPLAYS - All the Various Real-time data shown on the same one display, it's convenient for users to check the data. And the MPPT charge controller 60 amp supports manual switch load and 5 seconds to restore the factory settings.LED shows if solar panels and battery are really connected to the controller.Lightning protection function.Convenient to check.
- MULTI-PROTECTION AND MULTI-STAGE CHARGING - Built-in intelligent protection against reverse polarity, reverse discharge, overload, short-circuiting, under voltage and reverse current. Multi-stage charging includes constant current, constant voltage and floating charge, and temperature compensation increase your battery life and improve your system's performance.
- 360 DAY SATISFACTORY GUARANTEE - We offer a 360 Day 100% SATISFACTORY warranty for our customers.Contact us if you have any question.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

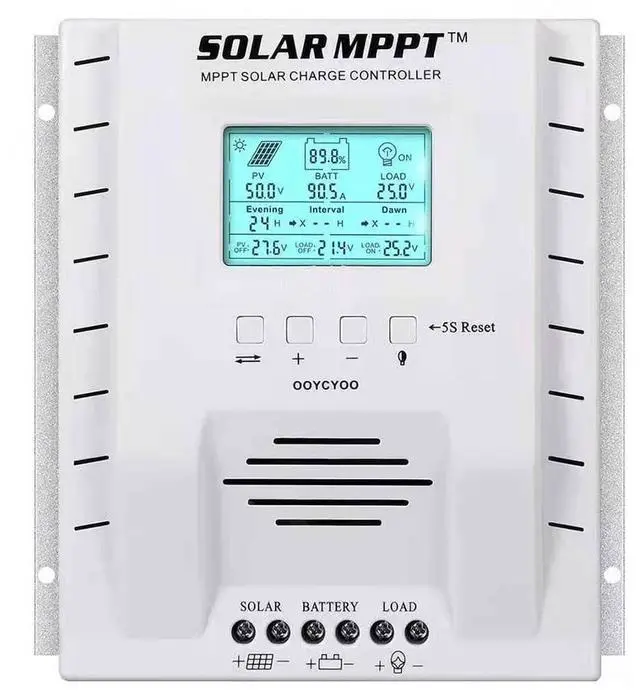

MPPT Solar Charge Controller P60 ,60A , 12V/24V Auto Work
P60A mppt solar charge controller is P series new upgrade versionBetter funcations and advanced technology .
Added Features:
Blacklight LCD Display
The display directly shows the amount of charge: KWH, without the need for other measuring instruments
Two new vents are added for scientifically designed convection cooling.
More Safety Protection
Maximum DC/DC transfer efficiency is as high as 98.7%

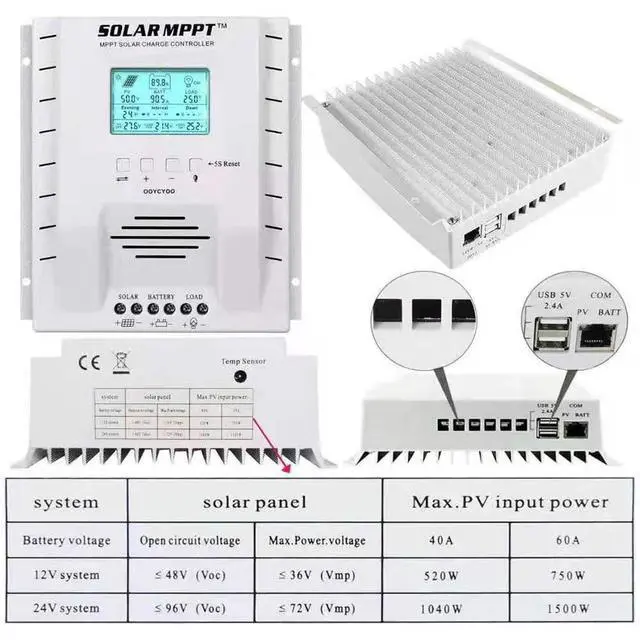

P60 Technical datas :
Rated charge current:60A
12V system:open circuit voltage 96V(Voc) maximum. PV input power:720W
24V battery system:Open circuit voltage 96V(Voc) maximum.PV input power:1440W
System nominal voltage :12V/24VDC Auto identifying
Battery voltage range: 9V~32V
Max.PV open circuit voltage:100VDC
Power terminal:10 AWG
Dimension: 7.78*7.78*3.2in
Weight : 3.3(ib)
Protection function:
PV Over Current/power
PV Short Circuit
PV Reverse Polarity
Night Reverse Charging
Battery Reverse Polarity
Battery Over Voltage
Battery Over Discharge
Battery Overheating,Controller Overheating
Lithium Battery Low Temperature
Load Short Circuit
Load Overload
TVS High Voltage Transients

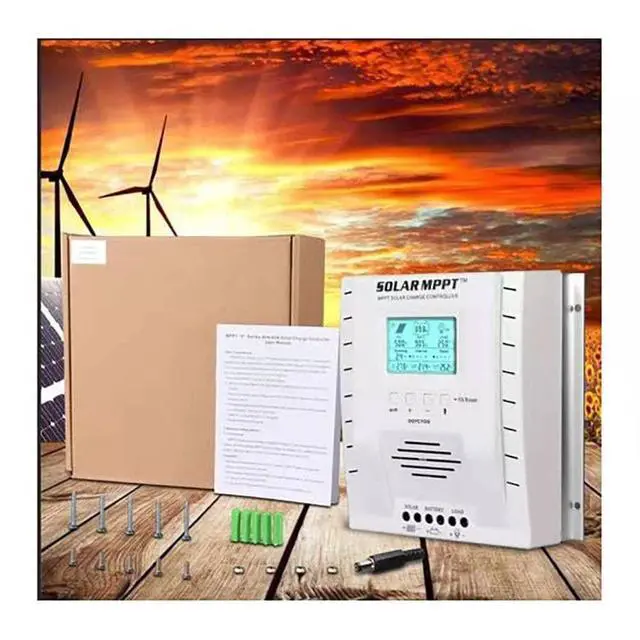

Package List:
1 x 60A MPPT Solar Charge Controller P60
1 x Temperature sensor
1 x User Manual (English)
