Feature
Advanced Maximum Power Point Tracking (MPPT) technology, with efficiency no less than 99%.
High quality components, perfecting system performance, with maximum conversion efficiency of 98.5%.
Ultra-fast tracking speed and great tracking efficiency.
Wide MPP operating voltage range.
12/24VDC automatically identifying system voltage.
LCD panel display design, dynamically displaying tool?s operating data and working condition.
Support 3 charging lead-acid battery options: Sealed, Gel, Flooded.
Battery temperature compensation function.
General Safety Information
- Read all of the instructions and cautions in the manual before beginning the installation.
- There are no serviceable parts for this controller. Do NOT disassemble or attempt to repair the controller.
- Do NOT allow water to enter the controller.
- Make sure all connections going into and from the controller are tight.
OOYCYOO MPPT SOLAR CHARGE CONTROLLER

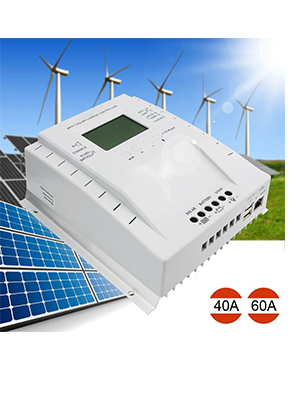

40A/60A/80A/100A MPPT Solar Charge Controller w/ LCD Display
The OOYCYOO 40A/60A/80A/100A P/K series MPPT Charge Controller is an intelligent positive ground controller. Built with protections against reverse polarity, short-circuiting, overheating, and more, this MPPT controller is also capable of self-diagnosing itself in the event of an error.
The solar panel charge controller is equipped with high tracking efficiency up to 99%, hardly wasting the energy from solar panels.with three load Timer
TRUE MPPT
- MPPT Technology High Tracking Efficiency > 99%
- The maximum power point tracking is automatically traced
- Max Input Power: 12V battery @ 500W | 24V battery @ 1000W

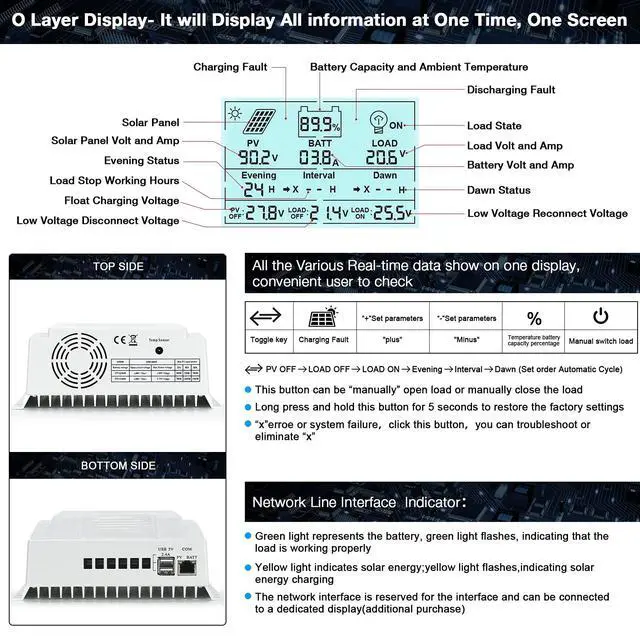

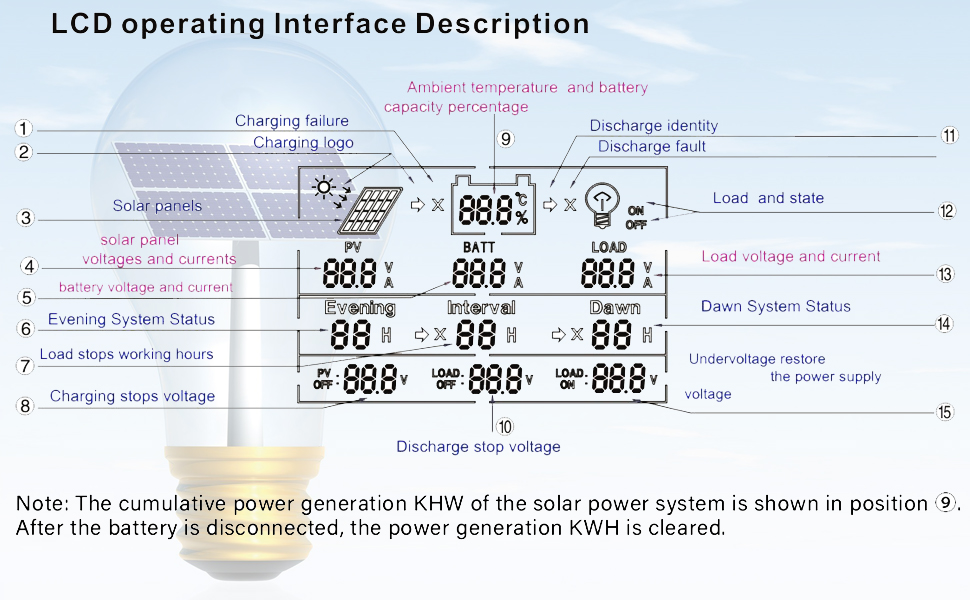

All the Various Real-time data shown on the same one display
- Display: Volt, Amaps, %, ?
- Parameter user can reset
- 'Manually' open load or manually close the load.
- Long press and hold togglr key button for 5 seconds to restore the factory settings

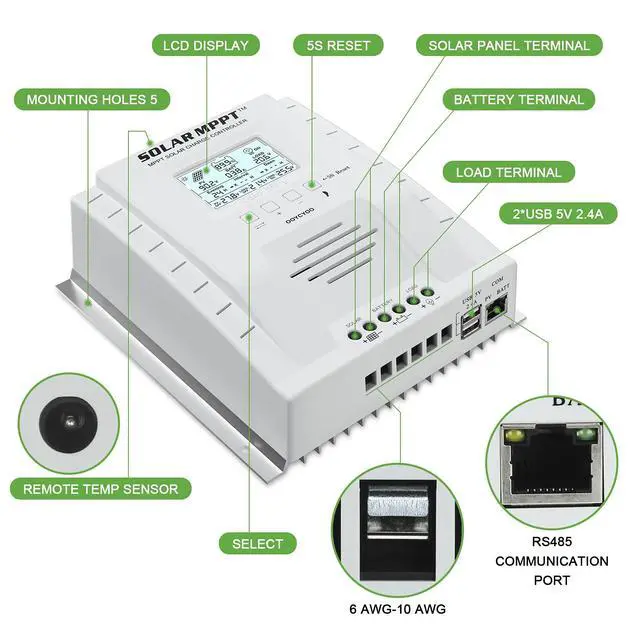

USB 5V/2.4A and Indicator
- Power terminals: 10 AWG
- Dual USB 5V/2A Output for phone charging
- (LCD485) Indicator: Green light flashes, indicating that the load is working properly;
- Yellow light flashes, indicating solar energy charging

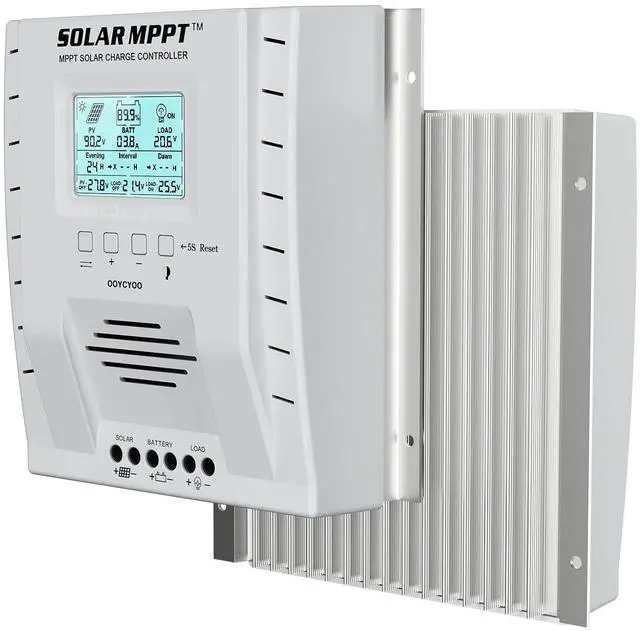

Die-cast Aluminum Design
- Aluminum Heat sink:For efficient heat dissipation.
- Install the charge controller vertically in place where it will not be exposed to direct sunlight and high temperature
MPPT technology
Automatically detect 12V or 24V DC system voltages
Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
Various optional batteries
Deep cycle Sealed, Gel, Flooded and Lithium (12.8V LFP) battery option ready
Charges over-discharged lithium batteries

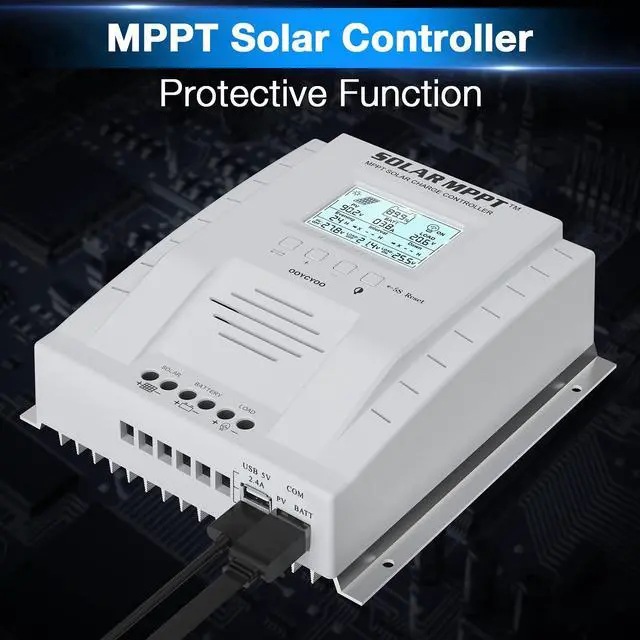

Protection System
Electronic protection: Overcharging, over-discharging, overload, and short circuit.
Reverse protection: Any combination of solar module and battery, without causing damage to any component
Customize charge controller
Customizable charging voltages
Positive ground charge controller

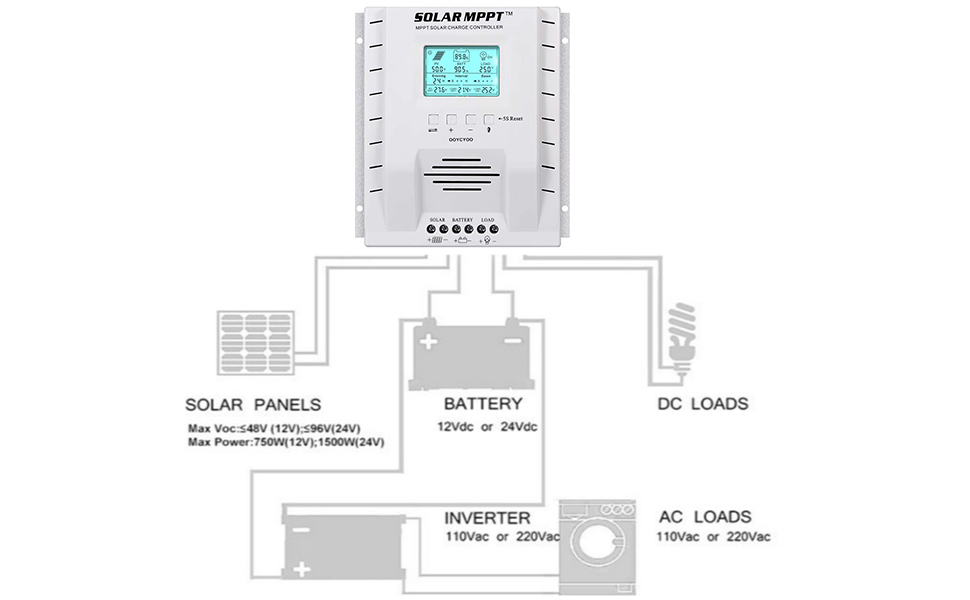

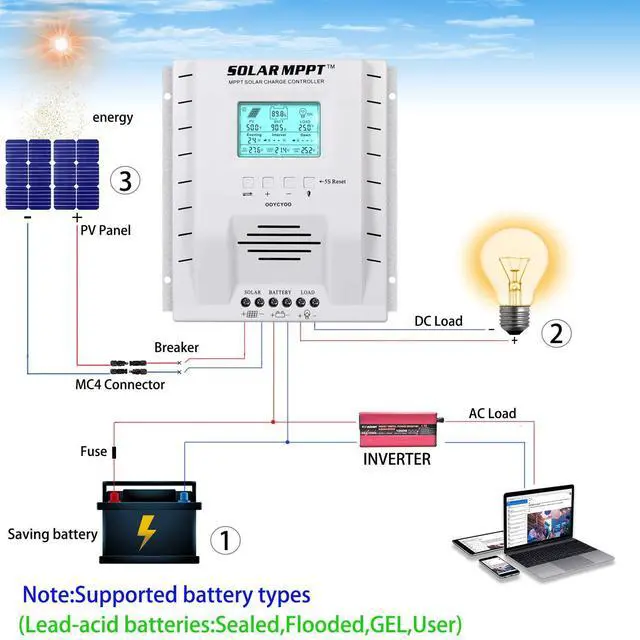

HOW TO WIRE YOUR SOLAR CONTROLLER?
Turn the adjusting screw counterclockwise until the plate moves downward.
Please peel off the coating of the cable tip by about 8 to 10 mm,Then Insert the wire into the new opening between the plate and the "top" of the terminal hole.
When turning the adjuster clockwise, the plate moves upward and crushes the wire in the hole of the terminal.
Make sure all connections going into and from the controller are tight.
IMPORTANT NOTE:
Make sure your battery must be atleast 60% charged prior to connecting to controller.
Always connect your battery first
Never connect your solar panel array to the controller without a battery.
Careful your input power and voltage does not exceed the max.
