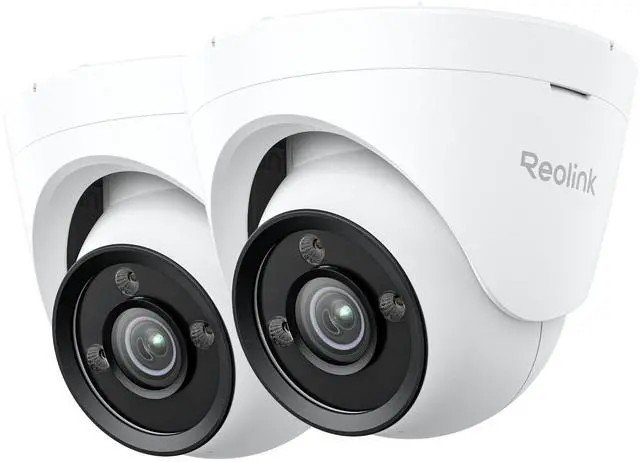

The Reolink CX820 is an 8MP 4K PoE outdoor dome camera with ColorX color night vision, HDR, and smart person, vehicle, and animal detection, suited to homeowners and small businesses seeking detailed, wired security coverage.
Recommended For
- Homeowners or small-property operators who can run Ethernet and PoE to a fixed outdoor view—such as a porch, driveway, or side entrance—and want 4K recording with person, vehicle, or animal alerts.
- People monitoring entrances, driveways, or yards with some ambient light who want to see nighttime footage in color; CX820 owners report strong results with street or exterior lighting, while performance is less suited to completely dark scenes.
- Users building a wired Reolink or local-recording setup who want an outdoor camera with smart person, vehicle, and animal detection rather than a battery-powered camera.
- Property owners who need a fixed, aimed view—such as a particular gate or doorway—and value low-light color footage more than camera movement or optical zoom.
Spec Summary
| Attribute | Value |
|---|
| Best For | Outdoor wired surveillance with color night vision, two-way audio, and person, animal, and vehicle detection |
|---|
| Camera And Resolution | 8 MP dome network camera capturing up to 3840 × 2160 (4K) |
|---|
| Video And Imaging | Fixed-focal lens with 10× digital zoom; main stream at 2–25 fps (default 25 fps) and substream at 4–15 fps (default 10 fps) |
|---|
| Night Vision And Lighting | Color night vision with three 2.8 W, 3000 K spotlights rated at 400 lumens |
|---|
| Detection And Recording | Smart detection for people, animals, and vehicles; supports motion-triggered, scheduled, and continuous 24/7 recording |
|---|
| Network And Connectivity | Wired RJ45 connection with ONVIF support and HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, and P2P protocols; no wireless connection |
|---|
| Power | PoE via IEEE 802.3af, 48 V active, or 12 V DC input at 1 A; under 12 W |
|---|
| Audio | Two-way audio |
|---|
| Storage | MicroSD card slot supports cards up to 256 GB |
|---|
| Mounting And Physical Specifications | Wall or ceiling mounting; white finish; 117.4 mm diameter × 103.8 mm; weighs 515 g |
|---|
| Operating Conditions | Operating temperature: −10°C to +55°C (14°F to 131°F); operating humidity: 10%–90% |
|---|
| Software And Compatibility | Reolink App/Client for Windows and macOS computers, and iOS and Android smartphones |
|---|
| Model And Package | Reolink ColorX Series CX820; package contents list one camera and one 1 m network cable |
|---|
