Compatible Reolink NVR: Hw_N5MB01, Hw_N6MB01 or Hw_N7MB01 under the latest firmware version for 16MP. But for Hw_H3MB18, Hw_N3MB01 or Hw_N2MB02, previews in 6MP resolution on the monitor UI. Not support the third-party NVR.
Accurately detect person/vehicle/animal movements for you, greatly reducing false alarms.

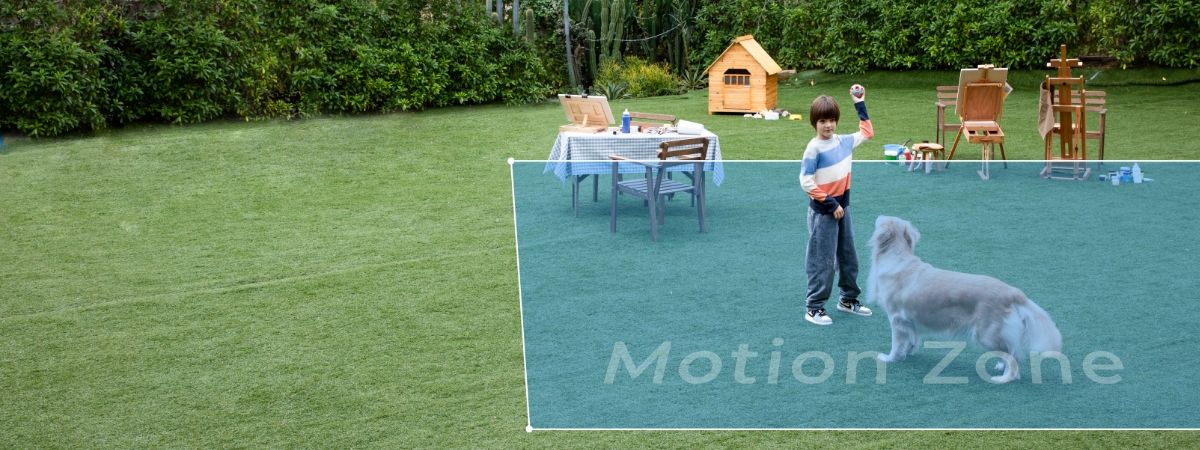

Decide which motion zone will be detected. You won't receive alerts from the areas you have erased.
Motion-triggered spotlights and custom siren will be activated to warn off intruders and alert you.

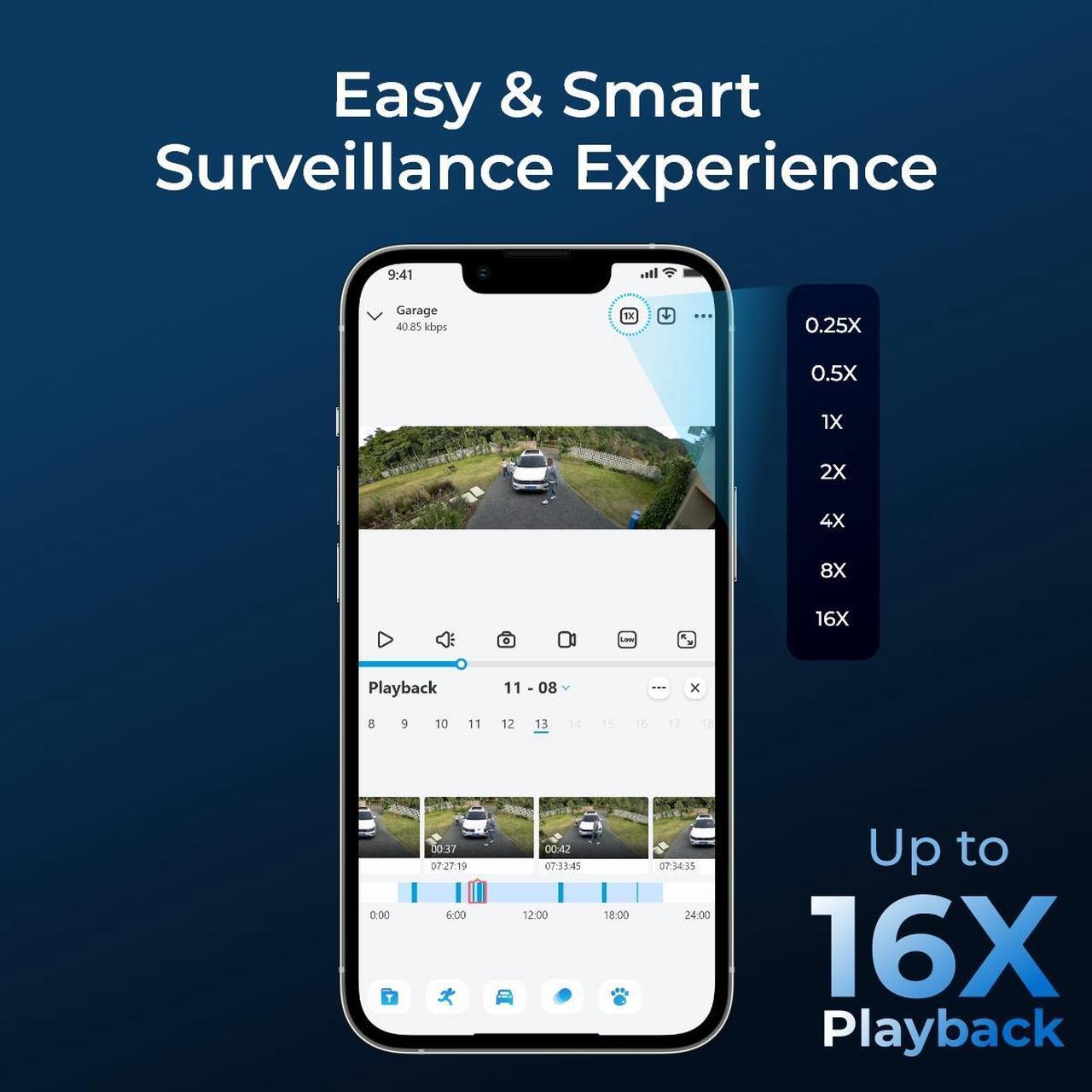

Observe hours, days, or even weeks of footage in just a few minutes easily.

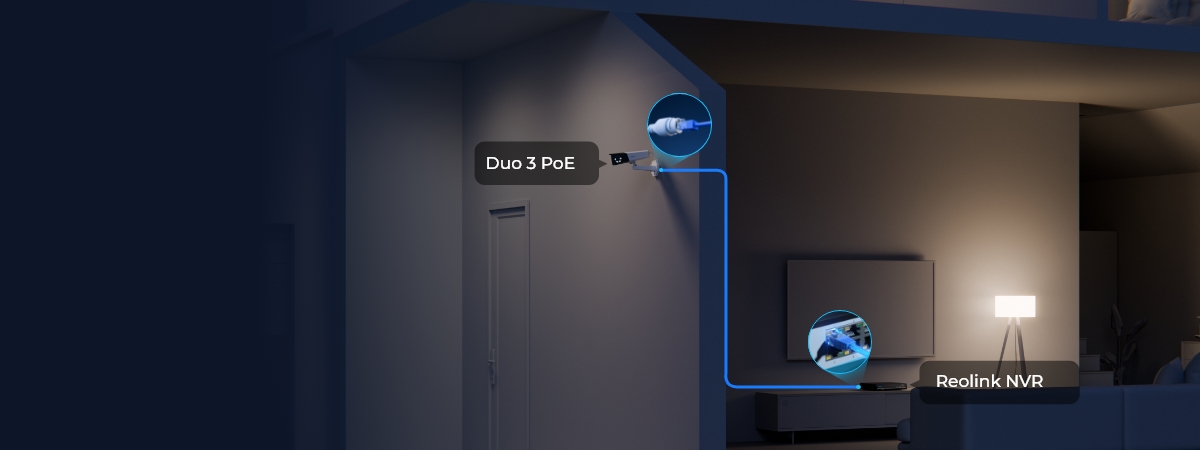

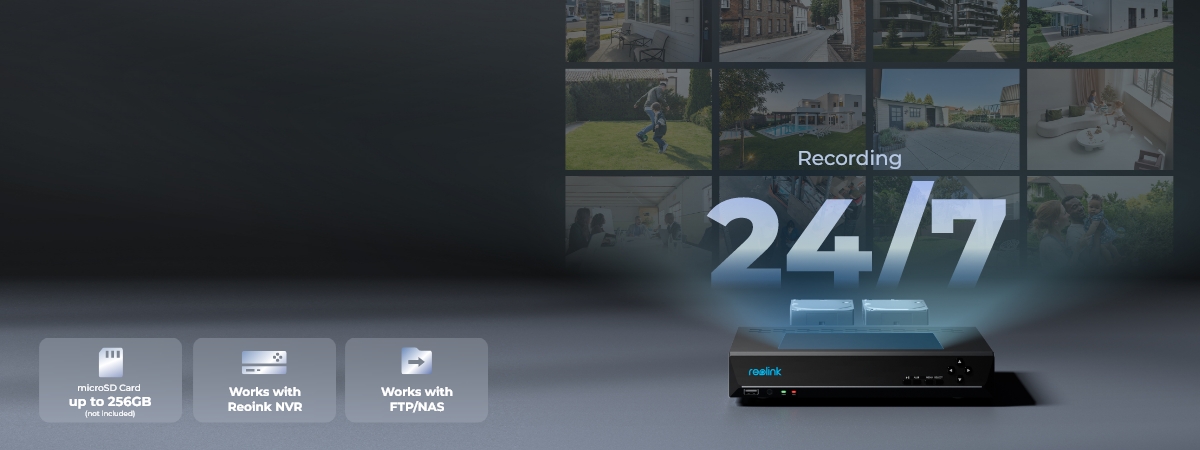

Connect RLC-840A to Reolink NVR for large storage. Keep 24/7 recording and enjoy lasting security.
Supports max.12 devices to live stream at the same time (2 mainstreams & 10 substreams).
| Image Sensor | 1/2.7" |
|---|---|
| Video Format | H.265 |
| Day&Night | IR-cut filter &uto-switching |
| Spotlight | 8pcs/5W/6500K/560 Lumens |
| Power | DC12V /2A |
| Storage | Micro SD Card Slot (support up to 256GB micro SD card),Reolink NVR |
| Compatible Reolink NVR | If the hardware version is Hw_H3MB18, Hw_N3MB01 or Hw_N2MB02, you need to upgrade the firmware to the latest version, and we recommend that you set the main stream resolution to 4096*1536 when you preview. If the mainstream resolution is set to 7680*2160, the image will not be displayed successfully. |
| Max User Access | 20 users (1 admin account & 19 user&administrator accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Default Video Info | 7680×2160(16MP)@20FPS Lens f=2.8mm fixed, F=1.6 |
|---|---|
| Field of View | Horizontal: 180° Vertical: 55° |

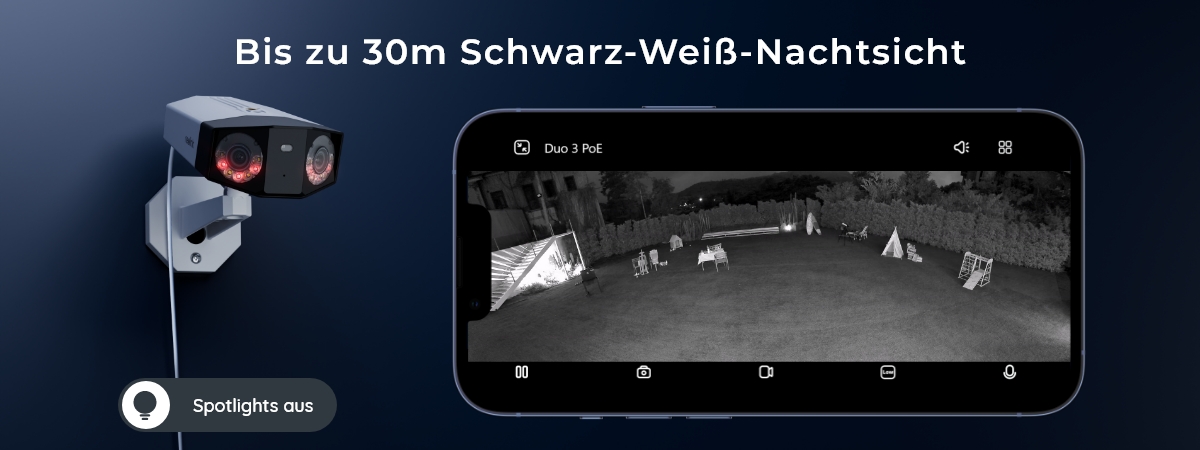

| Infrared | 30 Meters(LED: 6pcs/20mil/850nm) |
| Record Mod | Motion Recording ;schedule recording; 24/7 recording |
| Network | One 10M/100Mbps RJ45 |
| Compatible Reolink NVR | Hw_N5MB01, Hw_N6MB01 or Hw_N7MB01 under the latest firmware version. |
| Browsers Supported | Edge, Chrome, Firefox, Safari OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android |
| Audio In/Out | Built-in microphone and speaker |
