See super sharp details in 4K videos at 25fps high frame rate. Enjoy a top-notch visual experience.

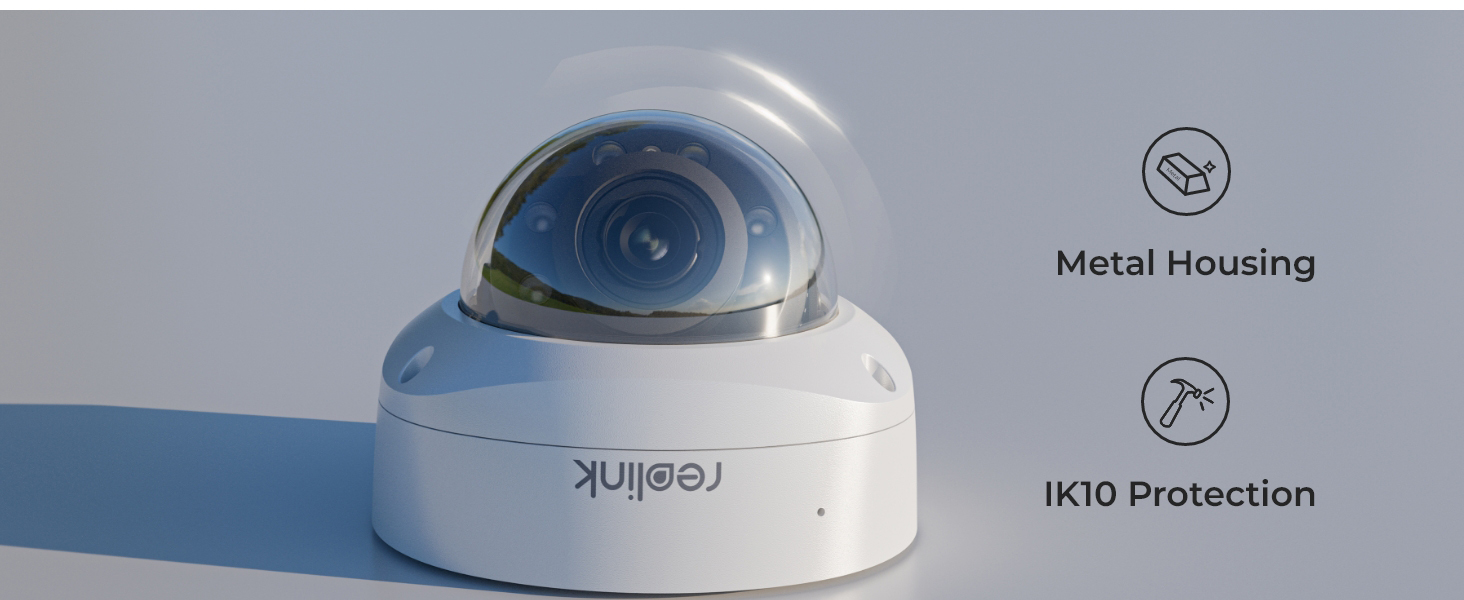

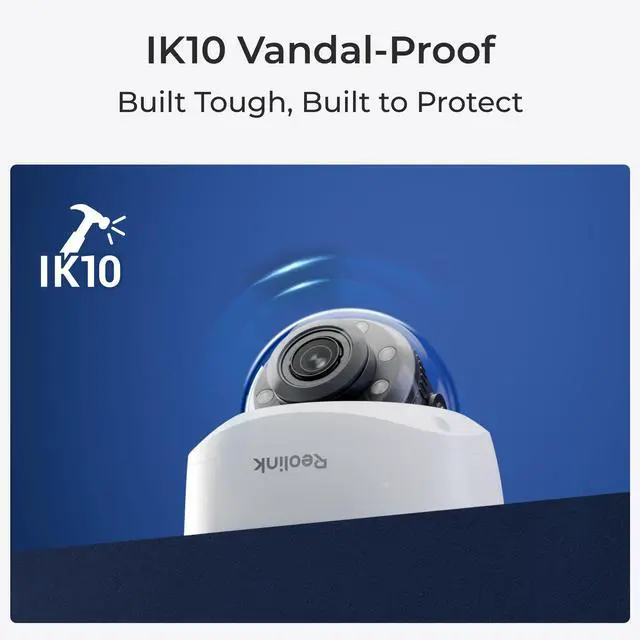

Bring distant details closer with 5X optical zoom. Zoom out for 123° diagonal angle and zoom in for close-up details in 4K UHD clarity without any resolution reduction. With IK10 rating, it protects against violent impacts.
Smartly distinguishes people/vehicles/pets from other objects and greatly reduces false alerts.

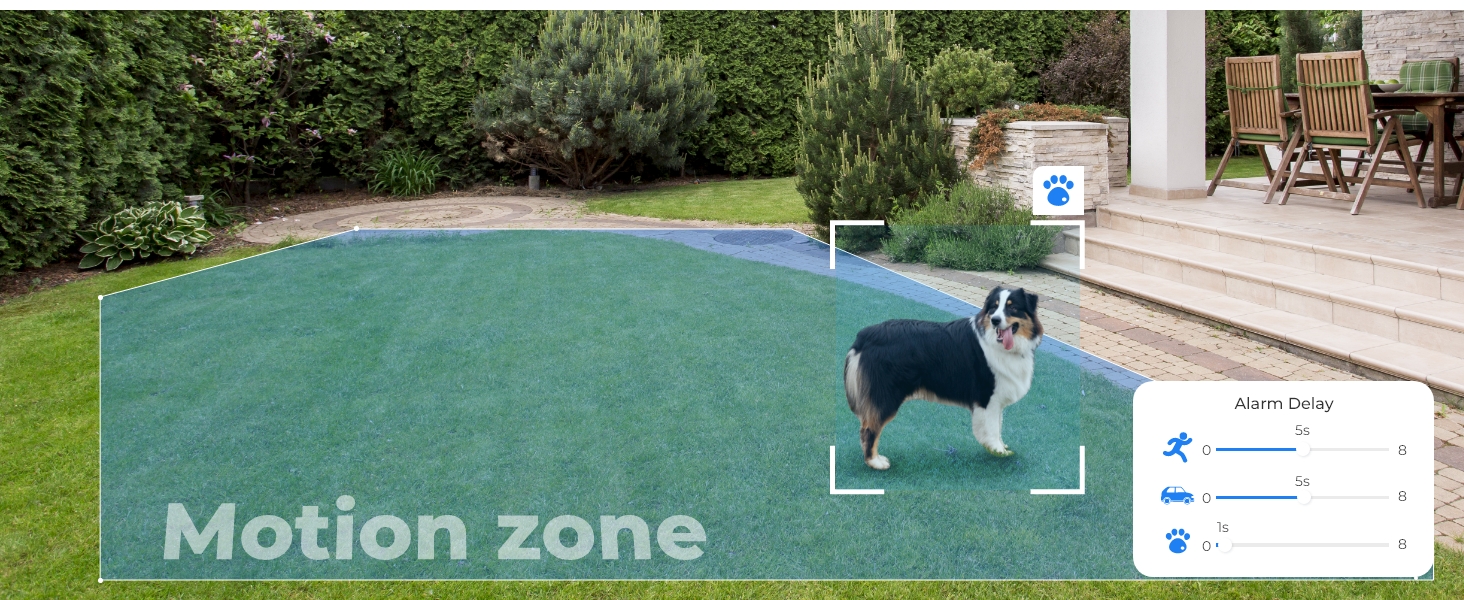

Customize motion zones to focus on noteworthy areas and get alerts only when targets linger.

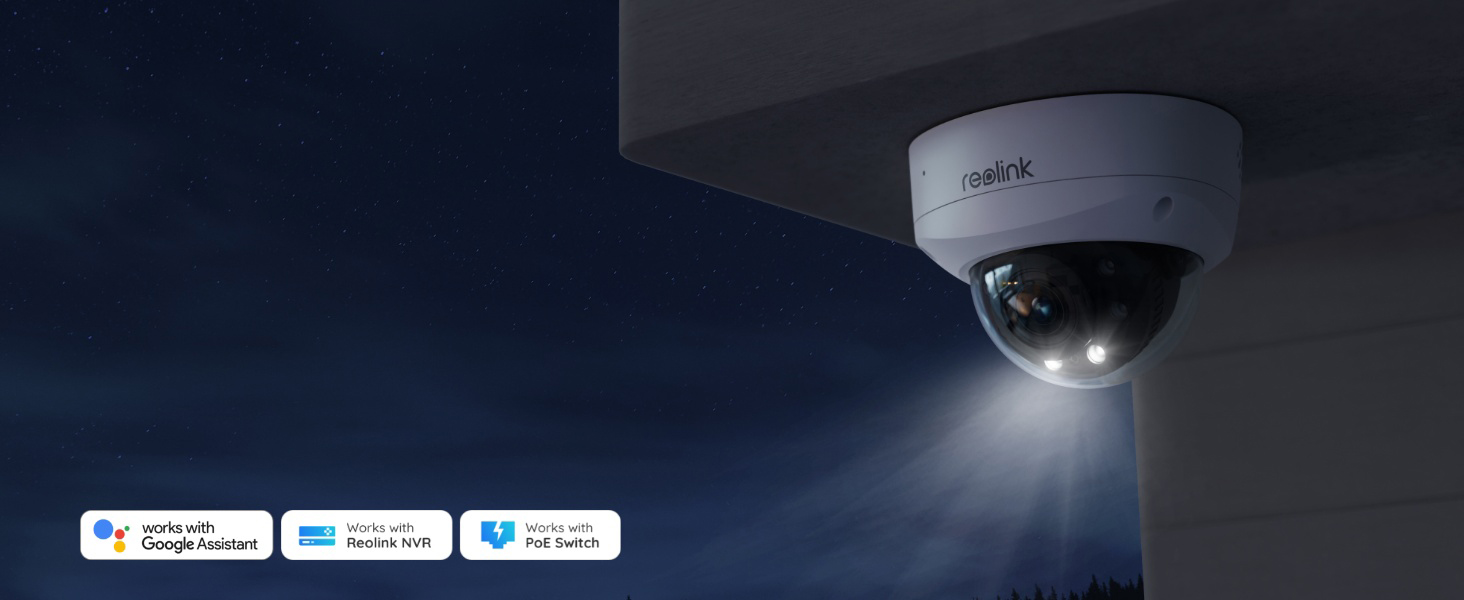

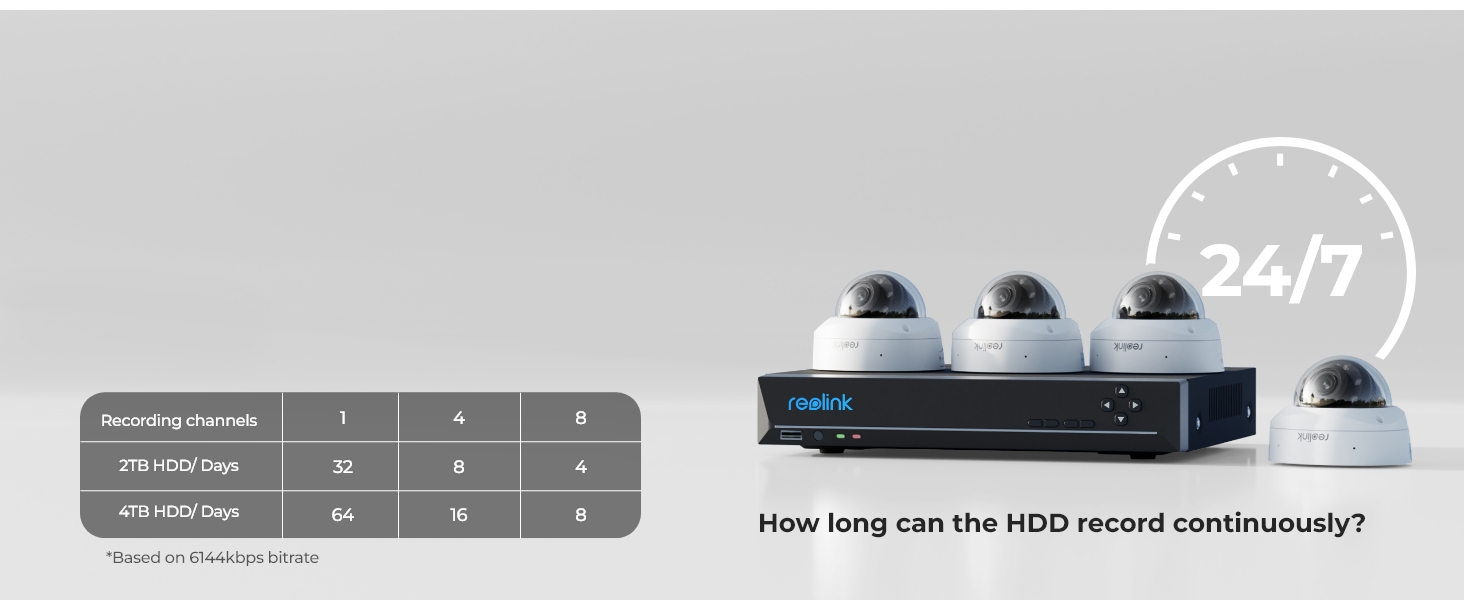

Connect RLC-843A to Reolink NVR for massive storage. Keep 24/7 recording and enjoy lasting security.

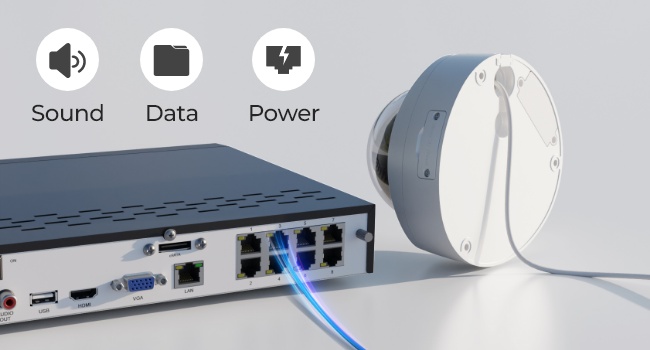

With Power over Ethernet, data, power, and audio can be transmitted at the same time via one Ethernet cable.
Note: The PoE camera needs an IEEE 802.3af PoE switch/injector/NVR (not included) for power supply.
Compared to the H.264 video coding format, H.265 delivers higher-quality videos while occupying half the bandwidth and storage space.
| Image Sensor: | 1/2.8" CMOS |
|---|---|
| Lens: | f=2.7-13.5mm |
| Field of View: Horizontal: | Horizontal: 100°-31°; Diagonal: 123°- 39°; Vertical: 55°-17° |
| Color Night Vision: | 15 meters (2pcs/3000K) |
| Power: | DC12V /1A& PoE (IEEE 802.3af) |
| Frame Rate: | 2-25FPS |
| OS Supported: | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Max User Access: | 20 users (1 admin account & 19 user&administrator accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Included Components | 1 x RLC-843A Camera, 1 x Waterproof lid, 1 x 1m Ethernet Cable, 1 x Security Sign, 1 x Pack of Screws |
| Night Vision Range | 100 Feet |
| Material | Aluminum |
| Video Resolution: | 3840X2160(8Megapixels)@25FPS |
|---|---|
| Video Format: | H.265 |
| Infrared Night Vision: | 30 Meters |
| Audio: | Built-in Microphone and Speaker |
| Storage: | microSD Card Slot (support up to 256GB micro SD card); Reolink NVR |
| Browsers Supported: | Edge, Chrome, Firefox, Safari |
| Smart Alarm: | Motion detection AI detection |
| Compatible Reolink NVR V.: | Hw. N7MB01/ N6MB01 / N5MB01 / H3MB18 / N2MB02 / N3MB01 under the latest firmware version |
| Viewing Angle | 100 Degrees |
| Frame Rate | 25 frames_per_second |
| Item dimensions L x W x H | 6.69 x 6.5 x 7.87 inches |
