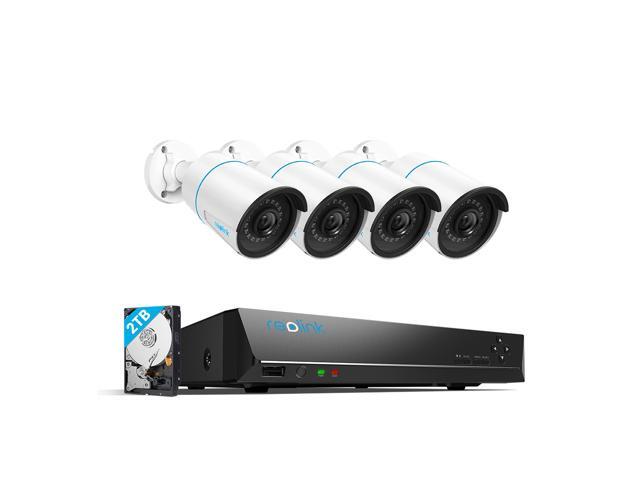

Reolink 8CH 5MP Security Camera System, 4pcs Person/Vehicle Detection 5MP Wired Outdoor PoE IP Cameras 8CH 4K 8MP NVR with 2TB HDD for 24/7 Recording - RLK8-510B4-A

Reolink 8CH 5MP Security Camera System, 4pcs Person/Vehicle Detection 5MP Wired Outdoor PoE IP Cameras 8CH 4K 8MP NVR with 2TB HDD for 24/7 Recording, RLK8-510B4-A

Person or Vehicle Detection

These 4 PoE cameras stand out for their capacity to differentiate between the movement of a human being or vehicle and that of another object. You will receive motion alerts instantly when a danger happens.

Easy PoE installation

Power, video, and audio run through one single PoE cable, making the installation simple. Cameras come with 60ft 8Pin network cables, which can be directly connected to the NVR. Users enjoy an easy set-up without additional purchases.

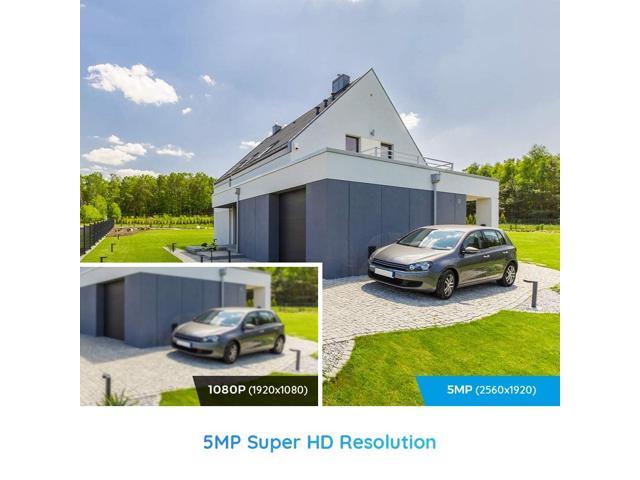

Remarkable 5MP HD Display

Pixel resolution of 2560x1920, which is 2.4X the resolution of 1080p Full HD, and even 1.4X the resolution of 1440p Super HD. These cameras provide vivid and crystal clear images in real time. You will have the best chance to see every detail in the images.

Intelligent Motion Alerts

The 510A PoE IP cameras can identify people and vehicles in terms of their shapes. The cameras can also specify the type of detection when sending alerts to you. Know what happened by just glancing at the lock screen, and alerts you via app push notification, an email with a photo, the NVR will sound a buzzer sound using the buzzer function.

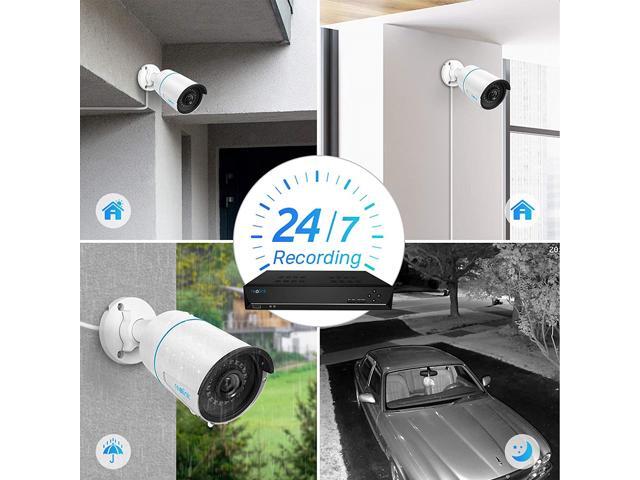

24/7 Continuous Recording

With built-in 2TB HDD in the NVR for 24/7 video recording. It supports simultaneous recording of all cameras (up to 8 cams). You can set each camera respectively to record continuously or on your time schedule. It can be stored in the NVR or FTP server.

Data Encryption, Cyber Security

We use AWS server to achieve remote access to your system, meaning your data stays your data as the Reolink servers are not involved at all. All the data is dynamically encrypted and well protected.

Easy Remote Access and Playback

Wherever you are, you can remotely access the camera system to get live streaming. Stay informed of your home and business anytime. When replaying all-day videos, you also can easily find the clip you need by date or type of motion event (Human/Vehicle/Motion Detection).

Outdoor IP66 Waterproof

With the rugged housing and body, you can place the camera anywhere outdoors or indoors, and they can provide you with all-weather protection even in cold or hot climates.

• Temperature: -10°C - +55°C (14°F - 131°F)


• Humidity: 10% - 90%

RLC-510A PoE IP Camera Specifications:

Image Sensor: 1/2.7" CMOS Sensor (5.0 Megapixel)

Lens: f=4.0mm fixed, F=2.0, with IR Cut

Angle of View: Horizontal: 80° Vertical: 42°

IR Distance: 30 Meters (100 ft) (LED: 18pcs/14mil/850nm)

Power Input: DC12V 1A or 48V PoE( IEEE 802.3af),

Microphone: Built-in Microphone

Frame Rate: Main Stream 2fps - 30fps(default: 30fps), Sub Stream 4fps - 15fps(default: 10fps)

RLN8-410 PoE NVR Specifications:

IP Video Input: Supports 8 IP cameras

Video Output: Monitor or HDTV via VGA, HDMI

USB Port: 2x USB 2.0

Power over Ethernet Sockets: 8x RJ45

Synchronous Playback: 1CH-8MP; 4CH-4MP

HDD Installed: Pre-installed a 2TB HDD

HDD Capacity: 1x internal port, 1x external port, 6TB for each port (support up to 12TB in total)

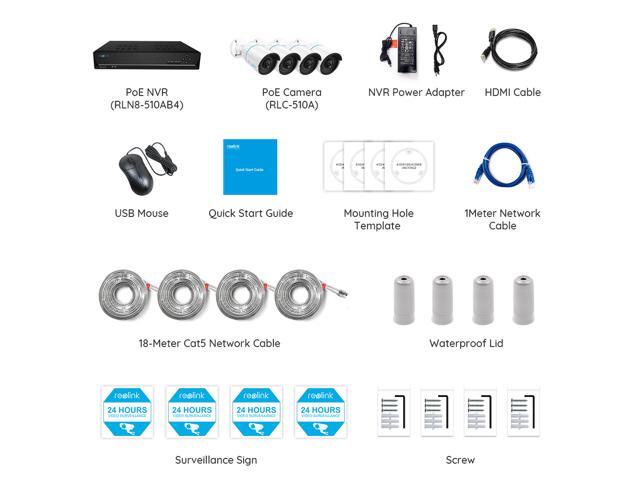

What's in the Box

RLN8-410 x1, RLC-510A x4, NVR Power Adapter x1

HDMI Cable x1, USB Mouse x1, 1m Network Cable x1, 18m Network Cable x4

Quick Start Guide x1, Mounting Template x5, Surveillance Sign x4, Waterproof Lid x4, RJ45 Connector x4, Pack of Screws x5
