This PoE Network Video Recorder can integrate Human/Vehicle Detection, PTZ, Auto-Tracking, Two-Way Talk, Motion-Triggered Spotlights, Siren, etc features from all Reolink IP cameras, allowing you to build an intelligent & cutting-edge system on your own.
This PoE NVR can be used without being connected to the internet for local recording and live viewing. However, an internet connection is required to enable remote viewing, motion push notifications.
This Reolink network video recorder only works with Reolink PoE Cameras and WiFi cameras by DC power (Battery-powered cams excluded) in perfect compatibility. The features you like can be combined to build the system as you like. Third-party cameras are NOT supported for this NVR.
The RLN8-410 NVR uses one single ethernet cable (Up to 330ft via CAT6,7 cable) to transmit both data and power for Reolink PoE cameras. Wired system means unmatched stability when loading 4K/5MP/2K Ultra HD images under high bitrates
| HDMI Output | 3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768 |
|---|---|
| VGA Output | 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768 |
| Maximum Capacity | 12TB (Maximum 6TB HDD/Port);SATA Devices:1 x 2TB SATA HDD; External HDD:1 x eSATA |
| Live View/Playback Resolution | 3840*2160, 2560x1920, 2560*1440, 2048*1536, 2304*1296, 1080P, 720P |
| Network Interface | RJ45,10M/100M Ethernet, 8 Network Ports for IP camera, 1 Giga Network Port for LAN/WAN |
| Supported Standard | IEEE 802.3at |
| Network Protocol | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
|---|---|
| Browser/OS Supported | IE, Firefox, Chrome; PC: Windows, Mac OS; SmartPhone: iOS, Android |
| Power Supply/Consumption | DC 48V/2A; <10W (WiDC 48V/2A; <10W (Without HDD&PoE)thout HDD&PoE) |

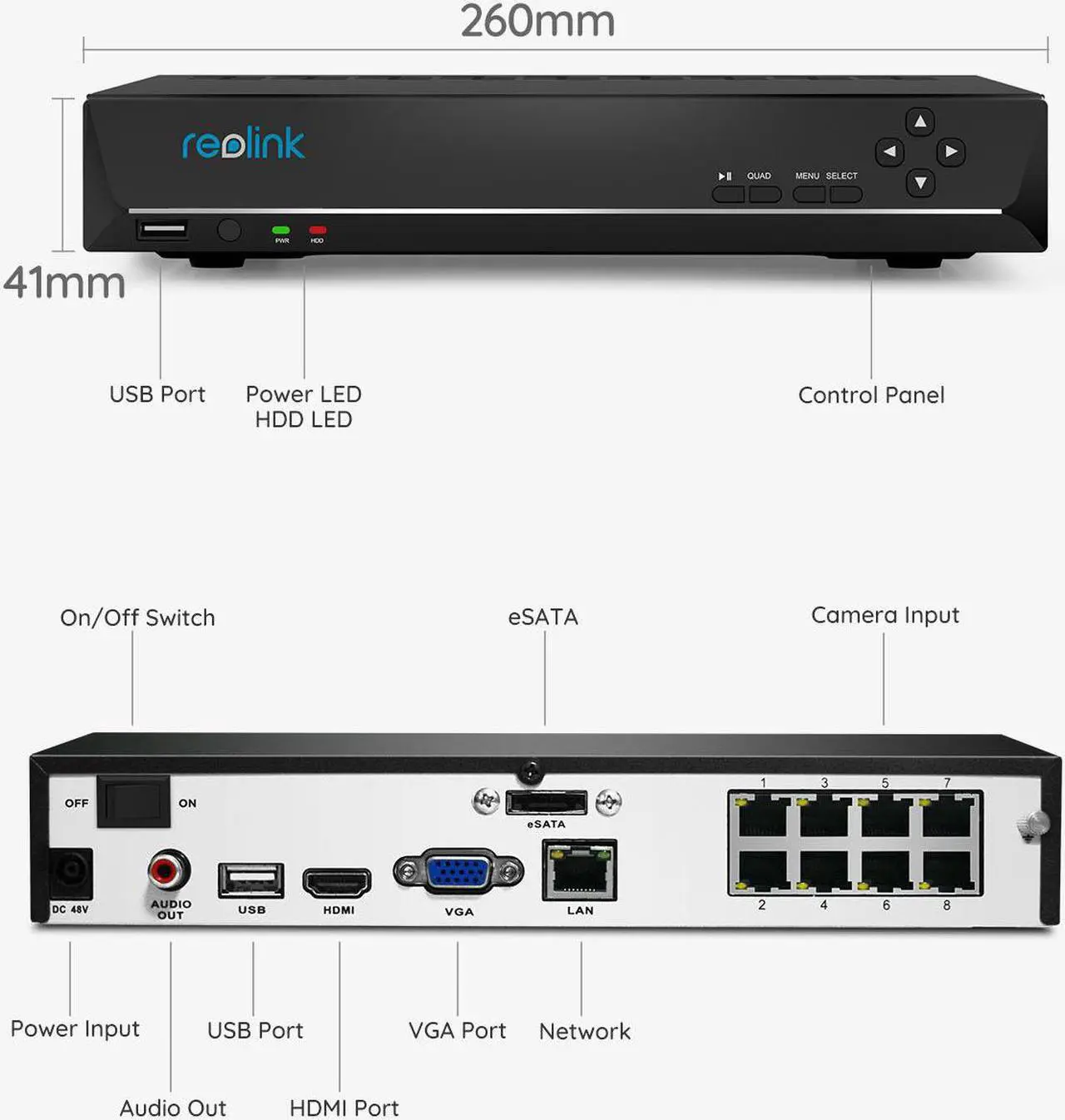

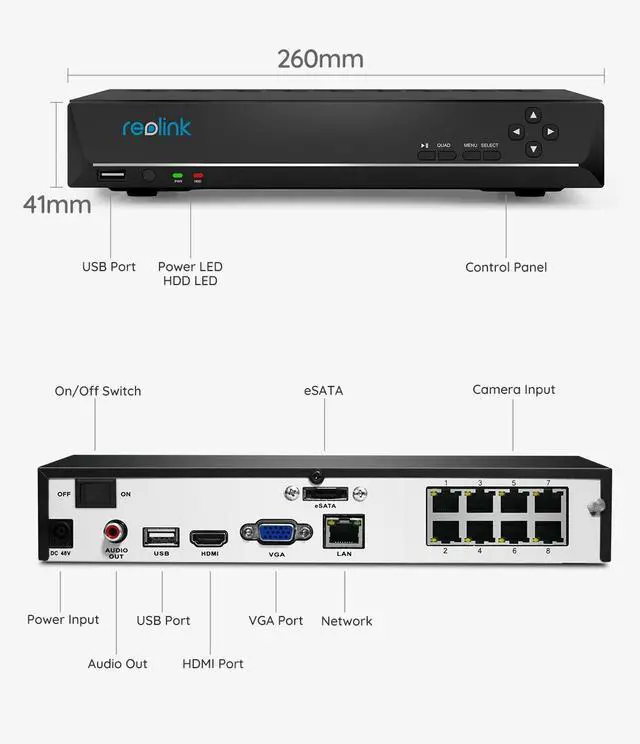

| Weight/Dimensions (mm) | 1.2 kg; 260(W) x 41(H) x 230(D) |
| Hardware Version | H3MB18/N2MB02 |
| Products | ||||
|---|---|---|---|---|
| Zoom | Digital Zoom | Digital Zoom | 5X Optical Zoom | 3X Optical Zoom |
| Recording | 24/7 or motion events to Micro SD card (not included) | 24/7 or motion events to Micro SD card (not included) | 24/7 or motion events to Micro SD card (not included) | 24/7 or motion events to Micro SD card (not included) |
| Smart Person/Vehicle Detection | ||||
| Built-in mic and speaker | Built-in mic | Built-in mic | Built-in mic and speaker | Built-in mic |
