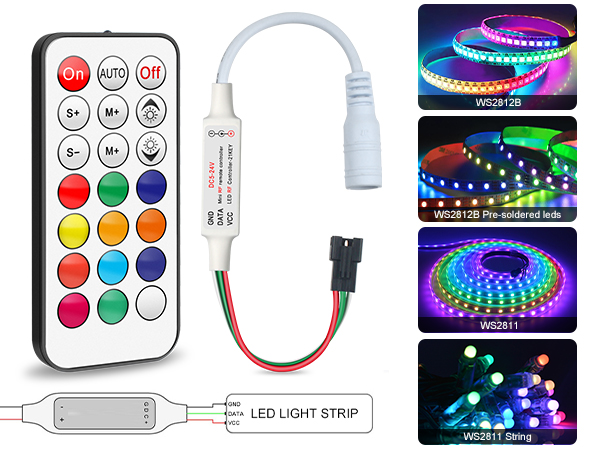

The lighting changes of the LED strip corresponding to the 21-key controller
The lighting changes of the LED strip
Specification:
2048 PIXEL ADJUSTMENT METHOD
How Can I Adjust It To Control 2048 Pixels?
Maximum number of control pixels: Total 2048 pixels. Recommend use of 300 pixels (Approx. 5 meters of light strip length.)

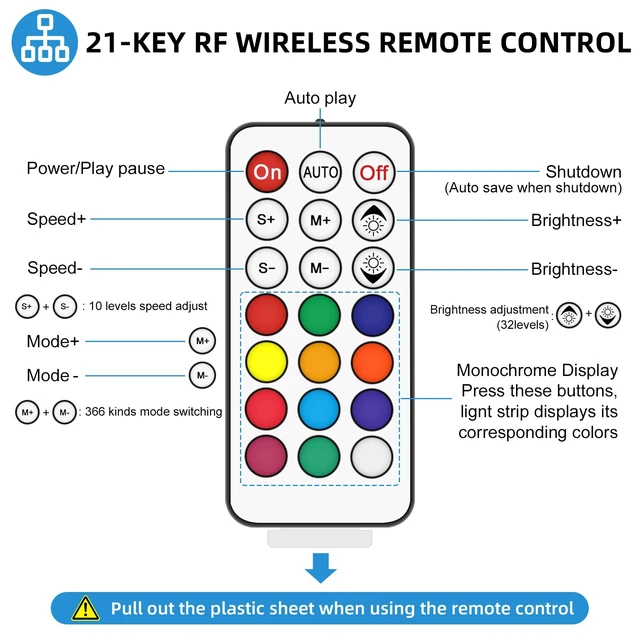

Press and hold for 5 seconds to enter the setup menu and press MODE+ and MODE- to adjust the number of LED pixel points. Only adjust 32 points each time.
Press the B button to adjust the RGB sequence. (Tips: If you want to adjust the pixel points from 300 to 2048, you need to press the 'MODE+' key 54 times.)
Why often receive messages from buyers saying that the controller does not fit your fixture?

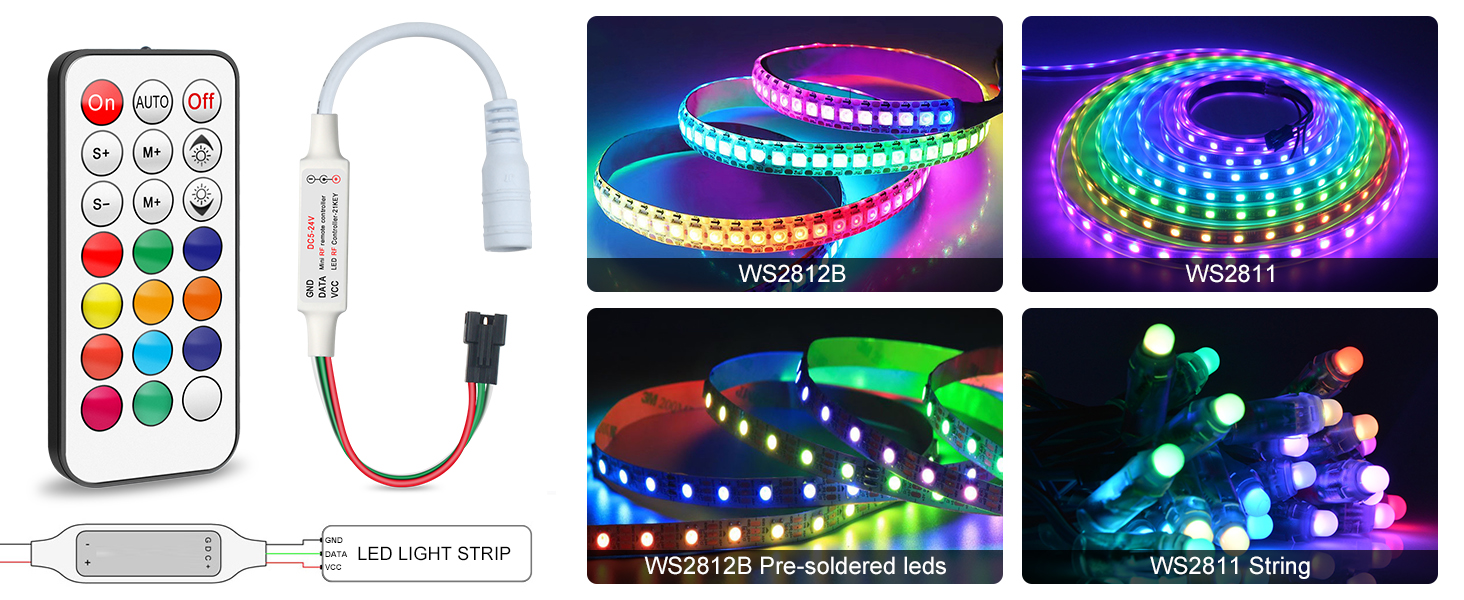

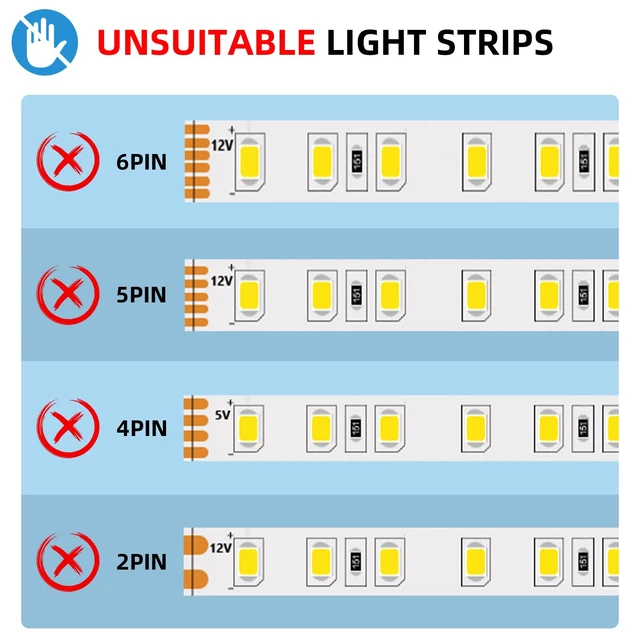

Please note: This controller is only suitable for 5V ws2812/ws2811/ws2812b light strips.
Why the light is slightly bright or only red light up?

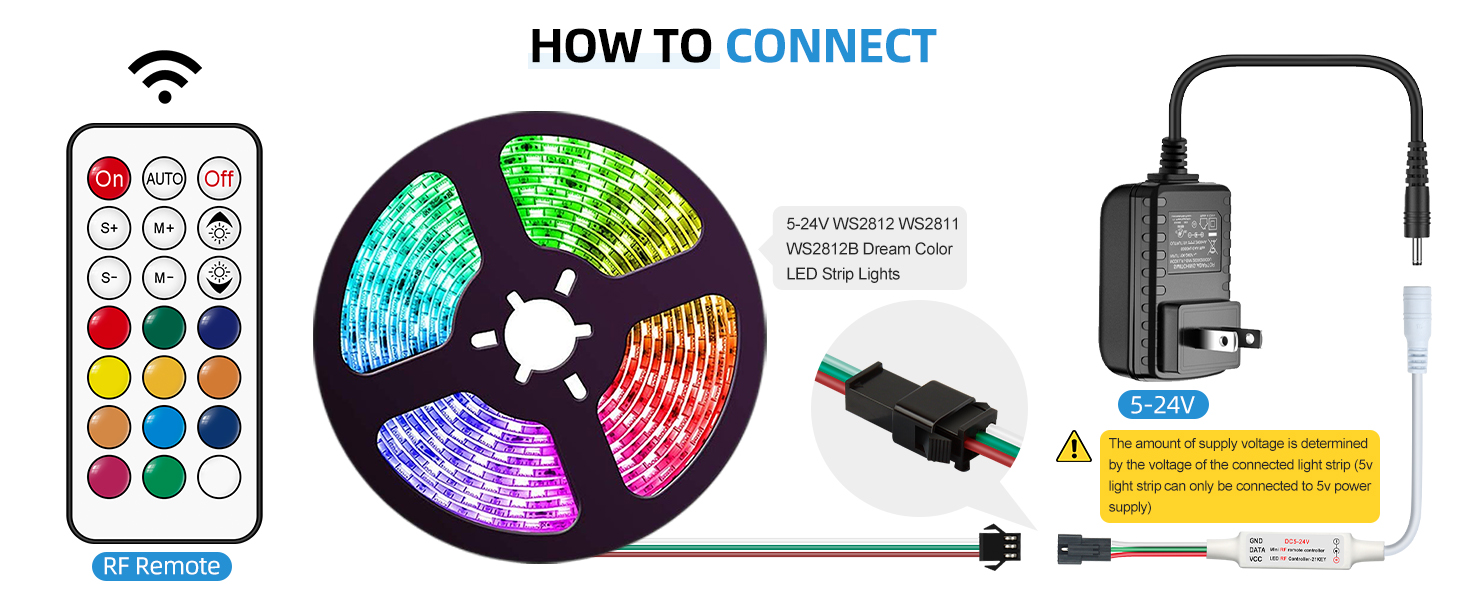

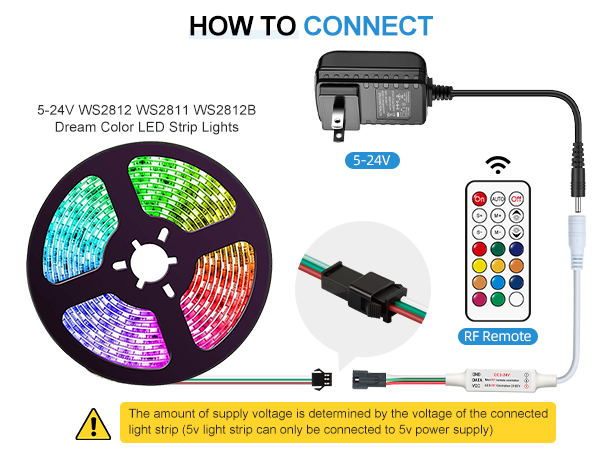

Reason: incorrect voltage use, please keep in mind: Input voltage=output voltage(For example, DC5V WS2812B LED Strip, must use DC 5V power supply)

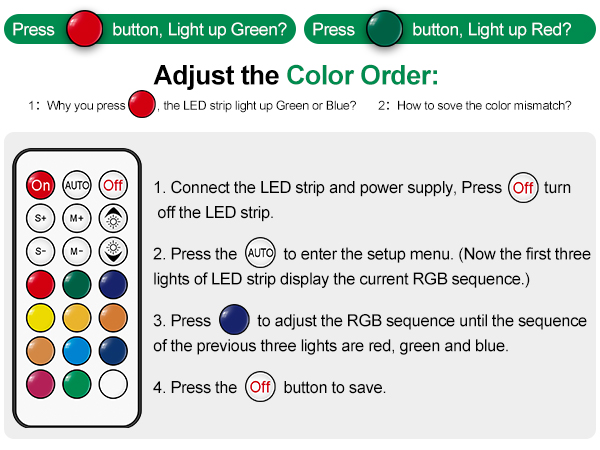

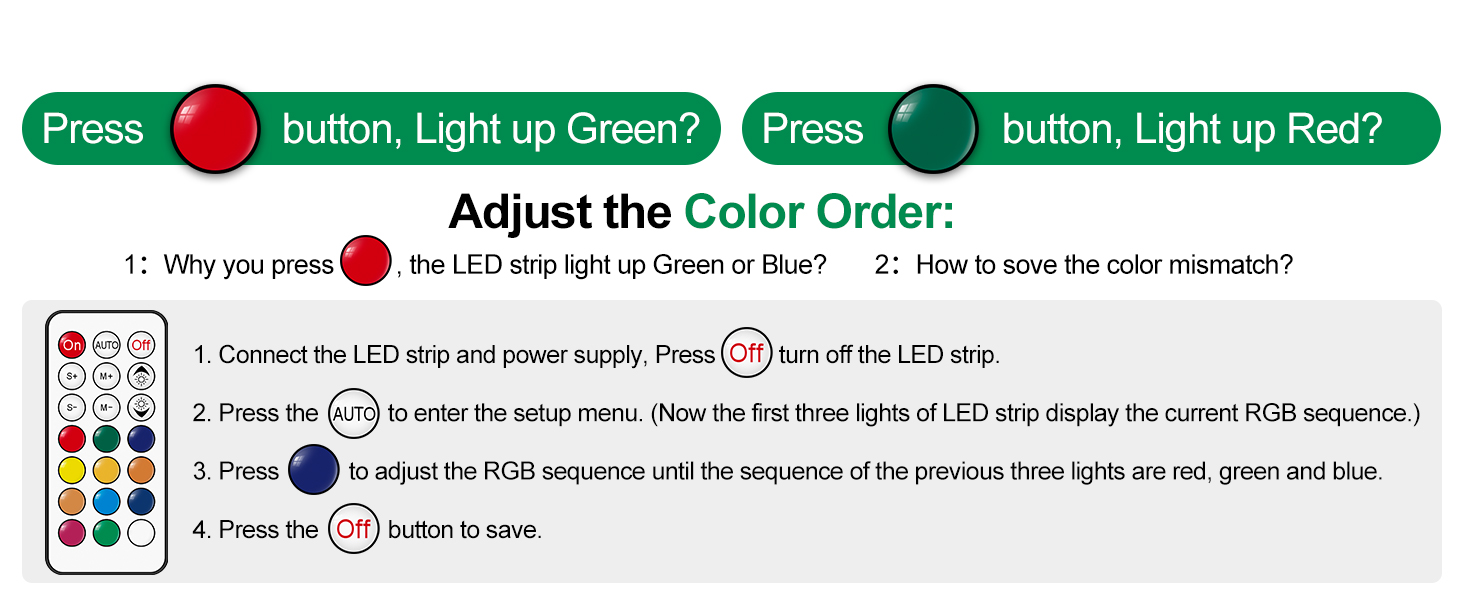

What if the controller displays the wrong color, e.g. the red button displays green?
This does not mean there is a problem with the controller. the problem can be solved by resetting the R/G/B sequence by referring to the guidelines on the details page above and the product manual.

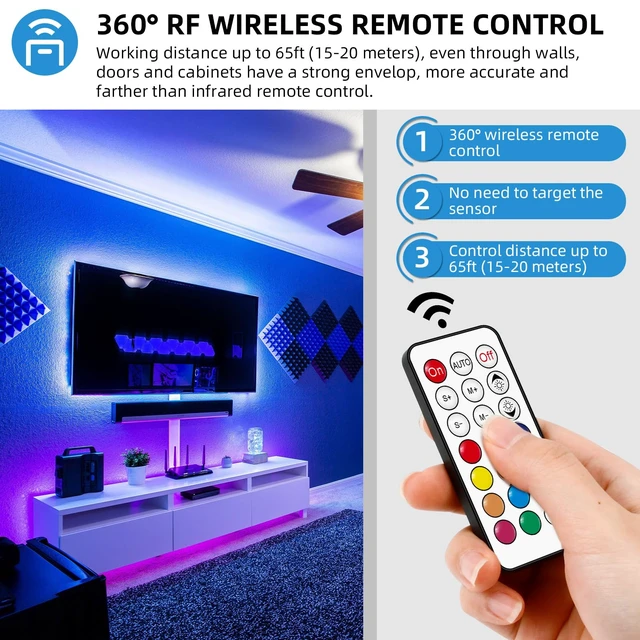

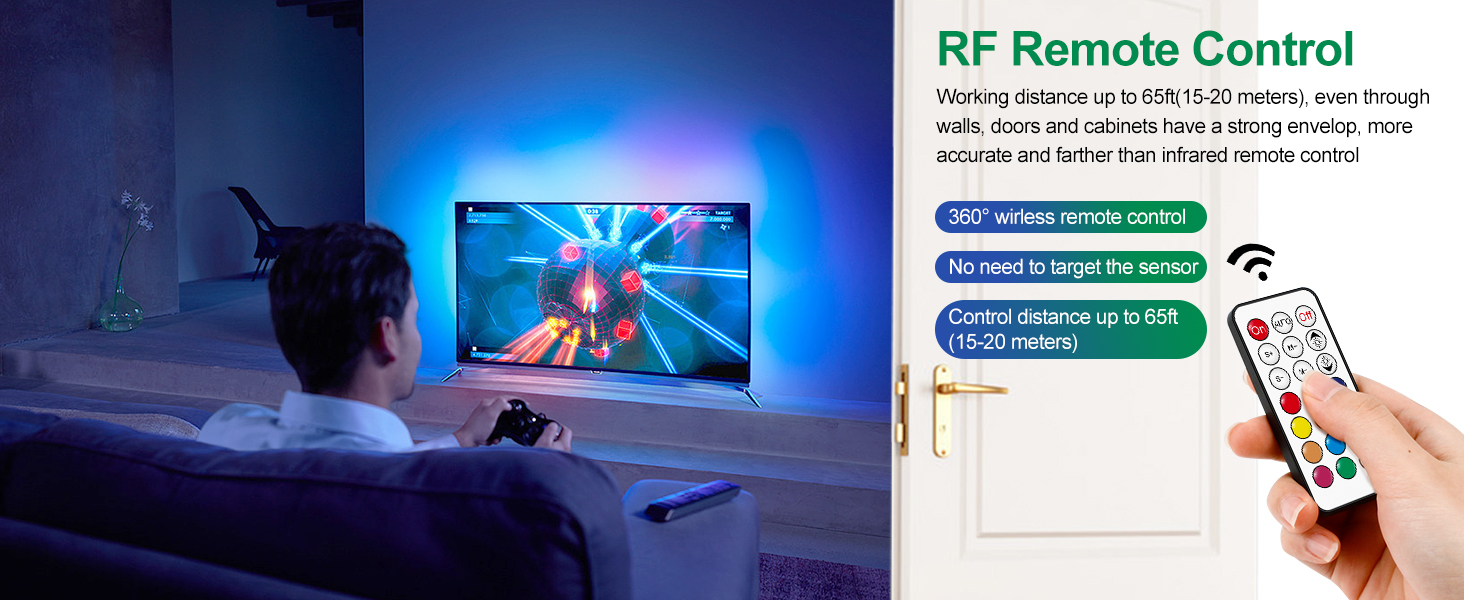

What is the operability range of the RF remote control?
32-98FT (In the absence of obstructions)
Why does the controller get hot when in use?
The product itself can carry power 5V<30W, 12V<72W, 24V<144W, such as more than this power, please give the light strips a separate power supply, or with the use of amplifiers, otherwise it will lead to controller overload damage.
Other Controller Recommendations
 21Key RF LED Controller |  5-24V RF LED Controller |  Bluetooth LED Controller |  5V USB RF LED Controller |  USB LED Controller |  2-Ports LED Conroller | |
|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — |
Price | — | — | — | — | — | — |
Connection Method | RF Remote Control | RF Wireless LED Controller | Bluetooth LED Controller | RF Remote Control | IR Remote Control | IR Remote Control |
Remote Control | 21 Key | 17Key | 40Key | 21 Key | 24 Key | 44 Key |
Output Current | 3x2A | 3x2A | 3x2A | 3x2A | 3x2A | 3x2A |
Output Power | 5V<30 W, 12 V<72 W, 24 V<144 W | 5V<30 W, 12 V<72 W, 24 V<144 W | 5V<30W, 12V<72W, 24V<144W | 5V<30W | 5V<30 W | 5V<30 W, 12 V<72 W, 24 V<144 W |
Remote Control Distance | 32-98FT(10-30 M) | 65ft(15-20meters) | 16-26FT(5-8M) | <64 ft (20 M) | <64 ft (20 M) | 16-32FT(5-10M) |
Compatible Light Strip | ws2812 ws2812b ws2811 | 5050 3528 5630(RGB) | 5050 3528 5630(RGB) | ws2812 ws2812b ws2811 | 5050 3528 5630(RGB) | 5050 3528 5630(RGB) |
2PIN-4PIN LED CONTROLLER
WIFI/Bluetooth/IR/RF/PWM LED Controller
Working Voltage: DC5V/DC12V/DC24V
Only Indoor Use
RGBZONE is committed to continuous product innovation to provide personalized life experience. We are experts in LED Controller. Our products are of high quality and bring you a more comfortable life. According to your suggestions, we will continue to improve and optimize our products to provide you with better choices.
RGBZONE RF LED Controller
RGBZONE LED Controller
5V USB Switch Extension Cable
RGBZONE LED Dimmer
RGBZONE LED Panel Dimmer
RGBZONE LED Controller
RGBZONE LED Dimmer
Dream Color LED Controller
RGBZONR LED Controller
Motion Sensor Detector Switch
The lighting changes of the LED strip corresponding to the 21-key controller
The lighting changes of the LED strip
Specification:

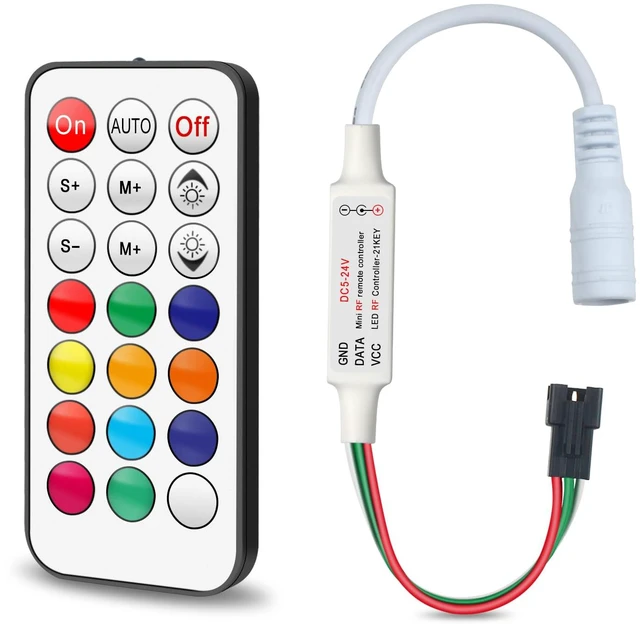

| Type: | 21-Key RF LED Controller |
|---|---|
| Supply Voltage: | 5V-24V (wide voltage) |
| Maximum Load Current: | < 6A |
| Output Power: | 5 V<30 W, 12 V<72 W, 24 V<144 W |
| Output: | 3 Way |
| Static Power Consumption: | <1 W |
| Maximum Control Points: | 2048 Points |
| Remote Control Distance: | 32-98 FT |
| Operating Temperature: | -4-140 ? |
2048 PIXEL ADJUSTMENT METHOD
How Can I Adjust It To Control 2048 Pixels?
Maximum number of control pixels: Total 2048 pixels. Recommend use of 300 pixels (Approx. 5 meters of light strip length.)
Press and hold for 5 seconds to enter the setup menu and press MODE+ and MODE- to adjust the number of LED pixel points. Only adjust 32 points each time.
Press the B button to adjust the RGB sequence. (Tips: If you want to adjust the pixel points from 300 to 2048, you need to press the 'MODE+' key 54 times.)
Why often receive messages from buyers saying that the controller does not fit your fixture?
Please note: This controller is only suitable for 5V ws2812/ws2811/ws2812b light strips.
Why the light is slightly bright or only red light up?
Reason: incorrect voltage use, please keep in mind: Input voltage=output voltage(For example, DC5V WS2812B LED Strip, must use DC 5V power supply)
What if the controller displays the wrong color, e.g. the red button displays green?
This does not mean there is a problem with the controller. the problem can be solved by resetting the R/G/B sequence by referring to the guidelines on the details page above and the product manual.
What is the operability range of the RF remote control?
32-98FT (In the absence of obstructions)
Why does the controller get hot when in use?
The product itself can carry power 5V<30W, 12V<72W, 24V<144W, such as more than this power, please give the light strips a separate power supply, or with the use of amplifiers, otherwise it will lead to controller overload damage.
Other Controller Recommendations
21Key RF LED Controller | 5-24V RF LED Controller |  Bluetooth LED Controller | 5V USB RF LED Controller | USB LED Controller | 2-Ports LED Conroller |
|---|---|---|---|---|---|
| Customer Reviews | |||||
| — | — | — | — | — | — |
| Price | |||||
| — | — | — | — | — | — |
| Connection Method | |||||
| RF Remote Control | RF Wireless LED Controller | Bluetooth LED Controller | RF Remote Control | IR Remote Control | IR Remote Control |
| Remote Control | |||||
| 21 Key | 17Key | 40Key | 21 Key | 24 Key | 44 Key |
| Output Current | |||||
| 3x2A | 3x2A | 3x2A | 3x2A | 3x2A | 3x2A |
| Output Power | |||||
| 5V<30 W, 12 V<72 W, 24 V<144 W | 5V<30 W, 12 V<72 W, 24 V<144 W | 5V<30W, 12V<72W, 24V<144W | 5V<30W | 5V<30 W | 5V<30 W, 12 V<72 W, 24 V<144 W |
| Remote Control Distance | |||||
| 32-98FT(10-30 M) | 65ft(15-20meters) | 16-26FT(5-8M) | <64 ft (20 M) | <64 ft (20 M) | 16-32FT(5-10M) |
| Compatible Light Strip | |||||
| ws2812 ws2812b ws2811 | 5050 3528 5630(RGB) | 5050 3528 5630(RGB) | ws2812 ws2812b ws2811 | 5050 3528 5630(RGB) | 5050 3528 5630(RGB) |
2PIN-4PIN LED CONTROLLER
WIFI/Bluetooth/IR/RF/PWM LED Controller
Working Voltage: DC5V/DC12V/DC24V
Only Indoor Use
