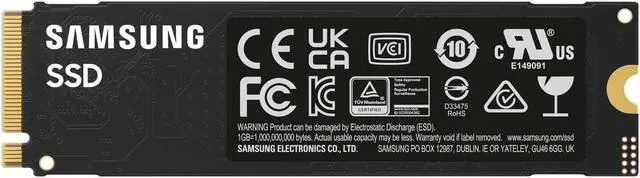

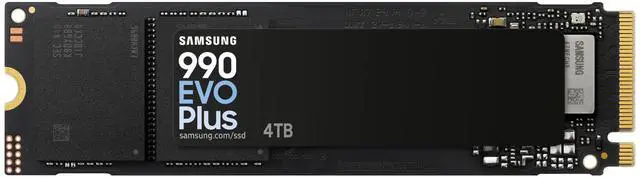

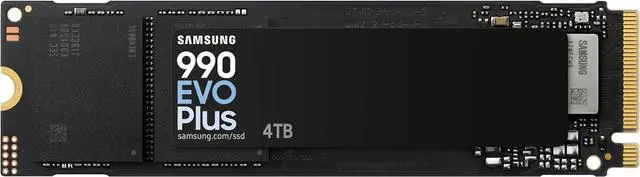

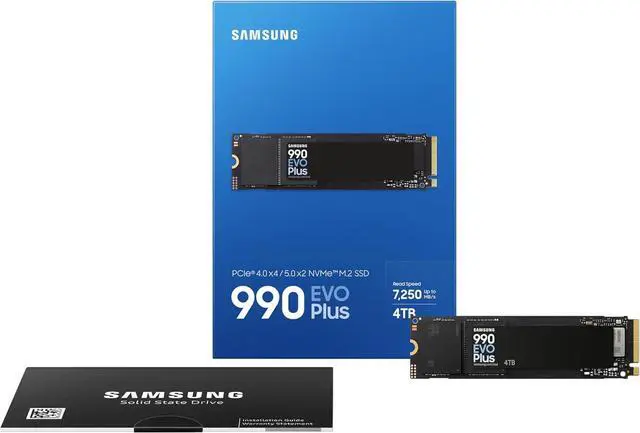

Samsung SSD 990 EVO Plus M.2 Solid State Drive 4TB

Spectacular speed everyday
Blast through tasks faster. 990 EVO Plus with the latest NAND offers boosted sequential read/write speeds up to 7, 250/6, 300MB/s. Huge files, instant transfer.

Cool power through your day
Optimized efficiency, extended performance. The nickel-coated controller increases MB/s per Watt by 73%, achieving the same power level and thermal control with less power consumption. Stay focused on work or play with no overheating or battery life worries.

Extra space. Extra speed.
Harness the full power of your drive with enhanced Intelligent TurboWrite 2.0. Process massive data faster and breeze through heavy graphics with an enlarged TurboWrite region, now available in 4TB capacity.

Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimization tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovationsto life
For decades, Samsungs NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

APPLICATION: Client PCs

FORM FACTOR: M. 2 (2280)

INTERFACE: PCIe® Gen 4.0 x4 / 5.0 x2 NVMe 2.0

DIMENSION (WXHXD): 80.15 x 22.15 x 2.38 mm

WEIGHT: Max 9.0 g Weight

STORAGE MEMORY: Samsung V-NAND TLC

CONTROLLER: Samsung in-house Controller

CACHE MEMORY: HMB (Host Memory Buffer)

TRIM SUPPORT: Supported

S. M. A. R.
T SUPPORT: Supported

GC (GARBAGE COLLECTION): Auto Garbage Collection Algorithm

ENCRYPTION SUPPORT: AES 256-bit Encryption (Class 0) TCG/Opal

IEEE1667 (Encrypted drive)

WWN SUPPORT: Not supported

DEVICE SLEEP MODE SUPPORT: Yes

SEQUENTIAL READ
1TB: Up to 7, 150 MB/s
2TB: Up to 7, 250 MB/s
4TB: Up to 7, 250 MB/s

SEQUENTIAL WRITE
1TB: Up to 6, 300 MB/s
2TB: Up to 6, 300 MB/s
4TB: Up to 6, 300 MB/s

RANDOM READ (4KB, QD32)
1TB: Up to 850, 000 IOPS
2TB: Up to 1, 000, 000 IOPS
4TB: Up to 1, 050, 000 IOPS

RANDOM WRITE (4KB, QD32)
1TB: Up to 1, 350, 000 IOPS
2TB: Up to 1, 350, 000 IOPS
4TB: Up to 1, 400, 000 IOPS

AVERAGE POWER CONSUMPTION (System Level)
1TB: Average: Read 4.3 W / Write 4.2 W
2TB: Average: Read 4.6 W / Write 4.2 W
4TB: Average: Read 5.5 W / Write 4.8 W

POWER CONSUMPTION (IDLE)
1TB: Typical 60 mW
2TB: Typical 60 mW
4TB: Typical 60 mW

POWER CONSUMPTION (DEVICE SLEEP)
1TB: Typical 5mW
2TB: Typical 5mW
4TB: Typical 5mW

ALLOWABLE VOLTAGE: 3.3 V ± 5 % Allowable voltage

RELIABILITY (MTBF): 1.5 Million Hours Reliability (MTBF)

OPERATING TEMPERATURE: 0 - 70 Operating Temperature

SHOCK: 1, 500 G & 0.5 ms (Half sine)

INSTALLATION KIT: Not Available

MANAGEMENT SW: Magician Software for SSD management
