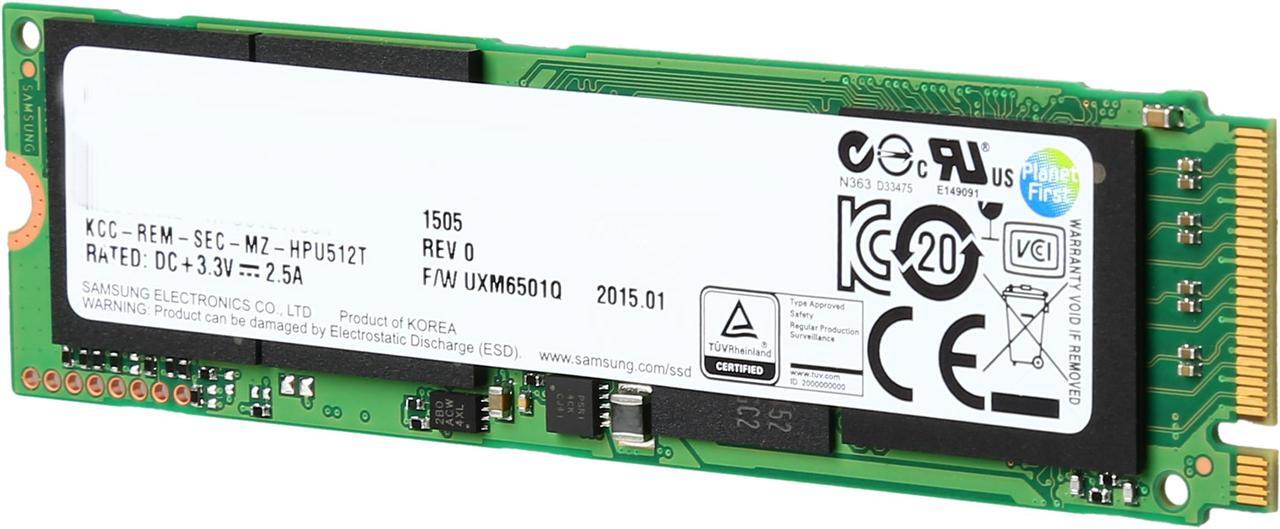

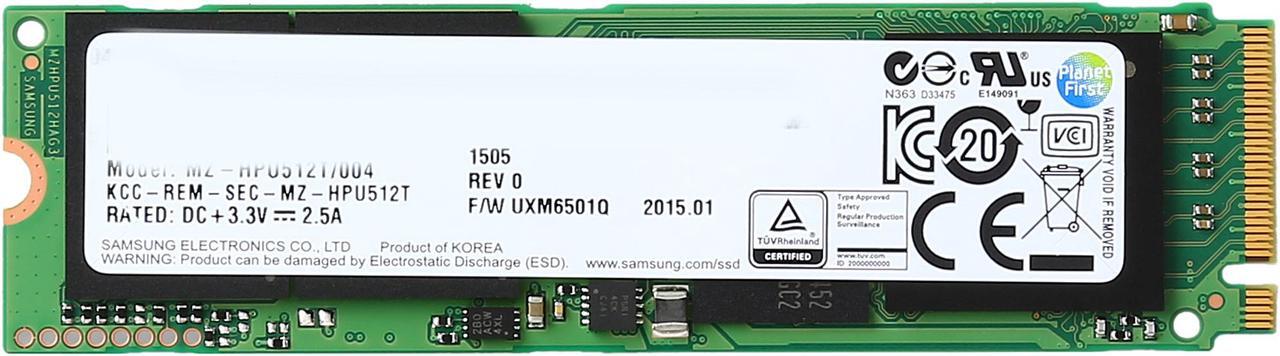

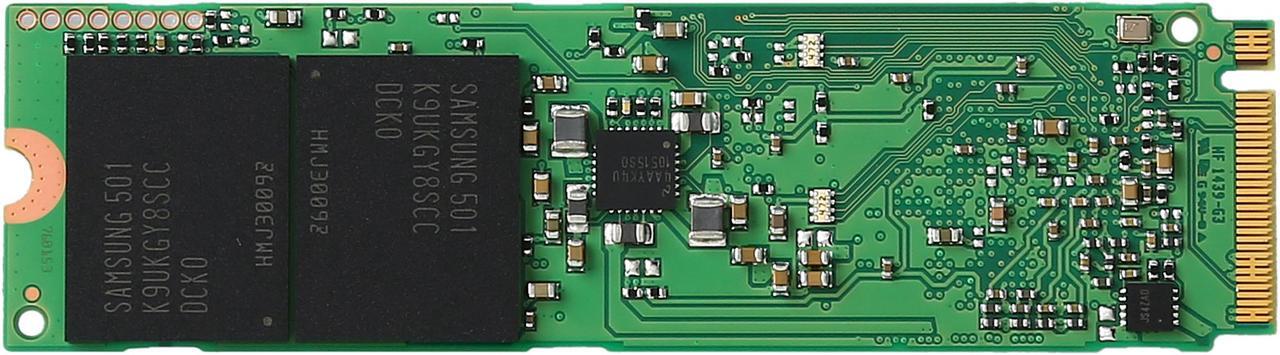

SAMSUNG XP941 MZHPU512HCGL-00004(0) M.2 2280 512GB PCI-Express 2.0 x4 MLC Solid State Drive - OEM
- M.2 2280
- MLC
- PCI-Express 2.0 x4
- 512GB
Specs
Reviews (23)
Learn more about the SAMSUNG MZHPU512HCGL-00004(0)
| Brand | SAMSUNG |
|---|---|
| Series | XP941 |
| Model | MZHPU512HCGL-00004(0) |
| Form Factor | M.2 2280 |
|---|---|
| Capacity | 512GB |
| Memory Components | MLC |
| Interface | PCI-Express 2.0 x4 |
| Max Sequential Read | Up to 1170 MBps |
|---|---|
| Max Sequential Write | Up to 930 MBps |
| 4KB Random Read | Up to 122,000 IOPS |
| 4KB Random Write | Up to 72,000 IOPS |
| MTBF | 1,500,000 hours |
| Features | 64Gb MLC NAND Flash Memory Up to 512MB LPDDR2 DRAM Buffer Memory PCIe Gen2 interface, up to 4 lanes Support Standard AHCI driver Support Toggle2.0 interface End-to-End Data Protection Support TRIM Command RoHS Compliant Halogen-Free Compliance |
|---|
| Power Consumption (Idle) | 80mW |
|---|---|
| Power Consumption (Active) | 5.8W |
| Operating Temperature | 0°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Height | 3.70mm |
|---|---|
| Width | 22mm |
| Depth | 80mm |
| Weight | 8.5g |
| Date First Available | May 23, 2014 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-726-7864
- Support Website
- View other products from SAMSUNG
