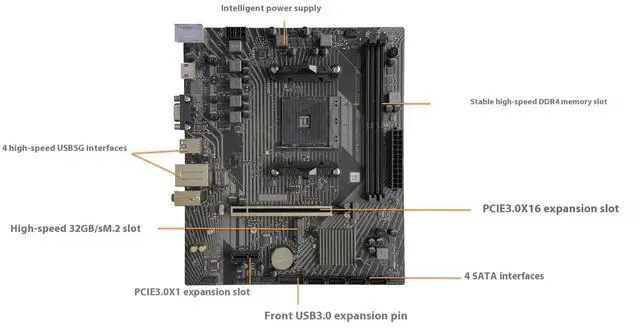

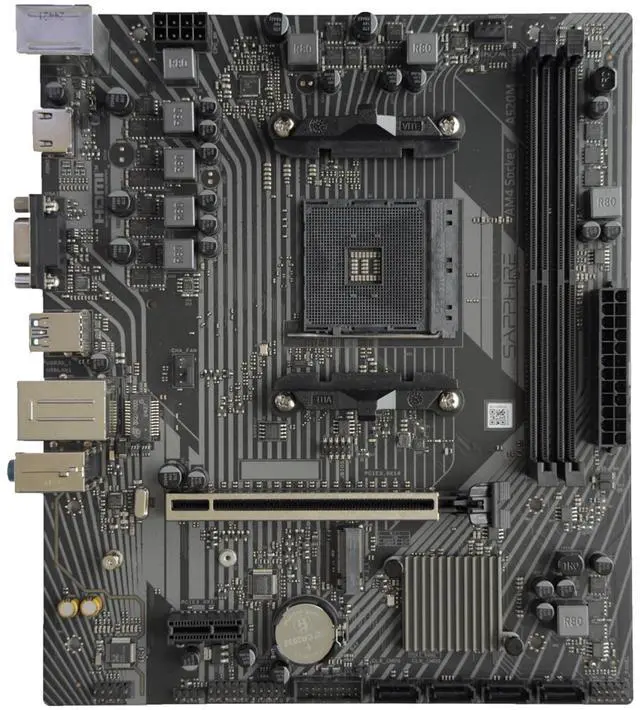

Sapphire Tech Pulse A520M-E Motherboard, Desktop PC Motherboard, for AMD Razor 9000/8000/7000 Series Processors, Wired Networking, AMD A520, AM4, 1*PCIE 3.0 x16,1*PCIE 3.0, 1*HDMI, 1*DP

Chipset: AMD®A520 chipset
CPU: Support AM4 socket processor
Memory.
2xDDR4 memory slots
Supports DDR4 memory only
Up to 4000MHZ+ (0C)
Maximum system memory capacity: 32GB*2 totaling 64GB
Supports dual-channel memory technology
Supports Extended Overclocking Configuration (EXPO) memory module
Expansion Slot: 1 PCIE 3.0 x16 slot; 1 PCIE 3.0 x1 slot
Audio: Realtek®ALC897 Hi-Fi decoder chip (supports up to 5.1 channels)
Network function: Realtek®RTL8111M network controller - support Gigabit wired network

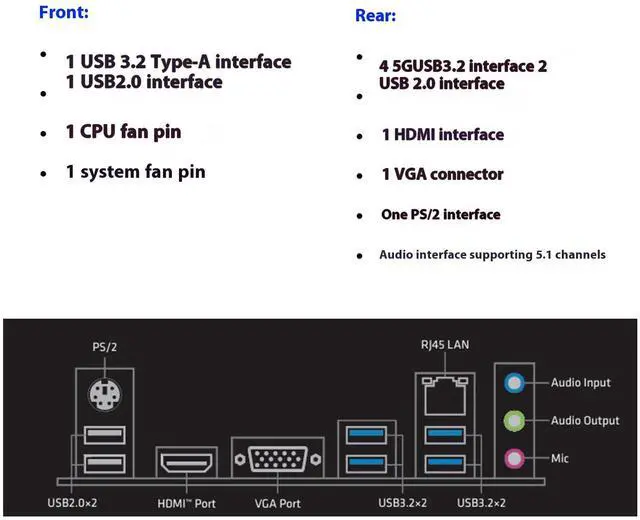

Rear I0 interface: 1 VGA interface
1 HDMI interface
2 USB 2.0 ports 4 USB 3.2 ports
1 PS/2 interface
1 Gigabit LAN (RJ45) interface
3 audio jacks
Front USB expansion interface: 1 USB 2.0 pins can be extended to 2 USB 2.0 ports
1 USB 3.2 Gen 1 pin to expand 2 USB 3.2 Gen 1 Type-A ports
Storage: 1 M. 2 support 2280/2242 specifications
4 SATA 3.06GB /S
Onboard pins:
1 CPU fan pin (CPU_FAN)
1 System Fan Pin (CHA_FAN)
1 Front Audio Pin (F AUDIO)
1 front panel pin (F_PANEL) 1 speaker pin (SPEAK)
1 clear CMOS jumper (CLR CMOS)
Motherboard dimensions:
230mm x 197mm
