Sapphire Tech PULSE B650M WIFI Motherboard, Desktop Motherboard, for AMD Razorback 9000/8000/7000 Series Processors, WIFI6+ Bluetooth 5, AMD B650, AM5, 1*PCIE5.0x16,1*PCIE4.0x4, 1*HDMI, 1*DP

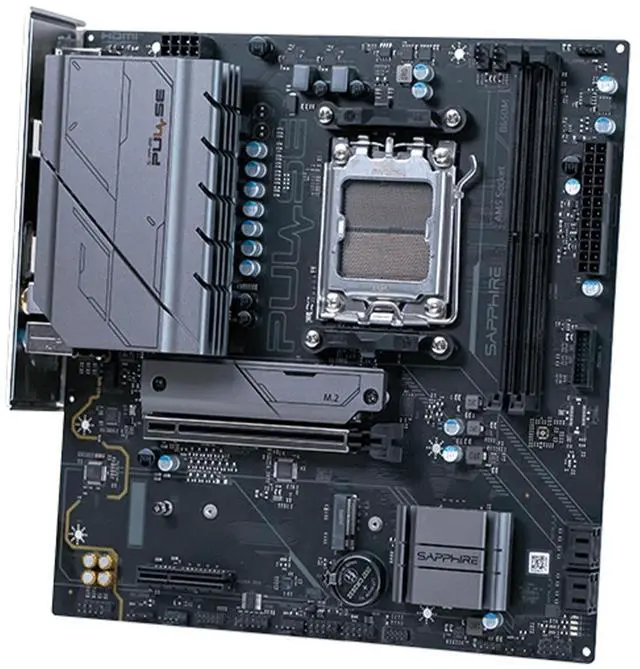

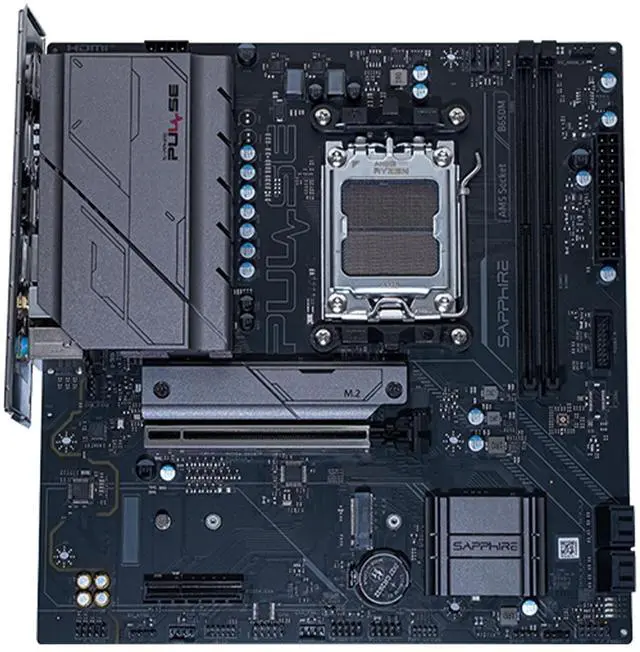

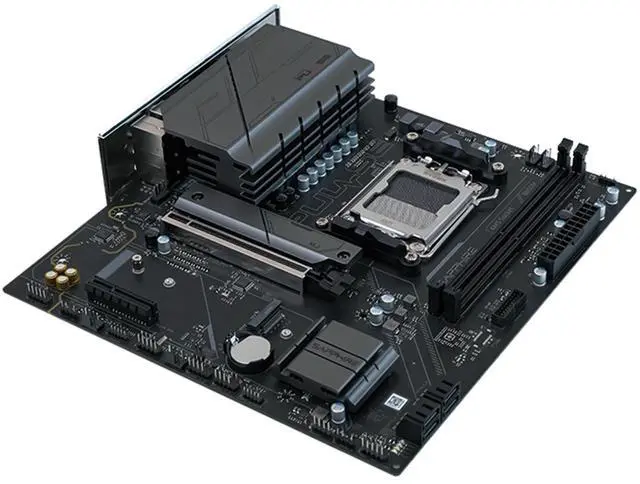

Sapphire PULSE Pulse B650M WIFI
CPU Support
Supports AMD Riptide 7000 Series Desktop Processors

Supports AMD Riptide 8000 Series Desktop Processors

Supports AMD Riptide 9000 Series Desktop Processors

- AM5 Slot Processor Support

Chipset
AMD B650 Chipset

Memory Support
x DDR5 memory slots

- DDR5 memory only

- Up to 7400 MT/s (OC)

- Maximum system memory capacity: 48GB * 2 total 96GB

- Supports dual-channel memory technology

- Supports Extended Overclocking Profile (EXPO) memory modules and Extreme Memory Profile (XMP).

Expansion Slots
1 PCIE 4.0 x16 slot

1 PCIE 4.0 x4 slot

Storage Interfaces
1x M. 2 up to PCIe 5.0 X4 (depending on CPU support)

1x M. 2 up to PCIe 4.0 X4

4x SATA 6Gb/s ports

Audio
Realtek® ALC897 Hi-Fi decoder chip (up to 5.1 channels)

Onboard NIC
Realtek® RTL8111K Network Controller

- Gigabit wired network support

Wi-Fi 6 Module

- Support 802.11 a/b/g/n/ac/ax

- Support 2.4GH z/5GHz wireless band

- Bluetooth 5 wireless transmission

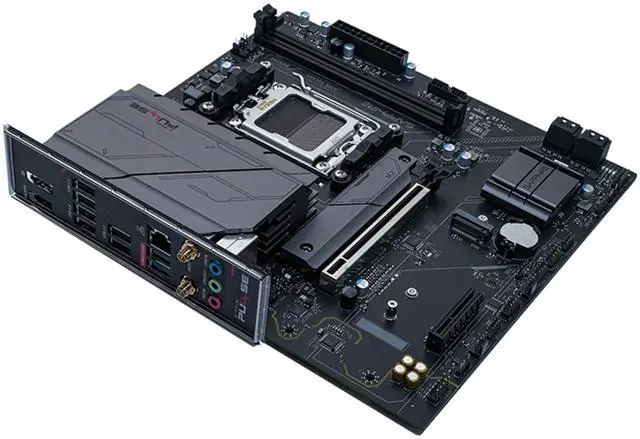

Rear I/O Interface
1 DisplayPort Interface

1 HDMI port

6 USB 2.0 ports

2 USB 3.2 ports

1 Gigabit LAN (RJ45) Interface

2 WiFi 6-antenna ports

3 Audio Jacks

Front Expansion Ports
2 USB 2.0 pins to expand 4 USB 2.0 ports (FUSB 2.0 _1, FUSB 2.0 _2)

1 USB 3.2 Gen 1 pin expands 2 USB 3.2 Gen 1 Type-A ports (FUSB 3.0 )

On-board pins
1 CPU fan pin (CPU_FAN)

1 water cooling pump pin (AIO_PUMP)

3 system fan pins (CHA_FAN1, CHA_FAN2, CHA_FAN3)

1 front audio pin (F_AUDIO)

1 front panel pin (F_PANEL)

3 x 5V ARGB pins (5V_ARGB_1, 5V_ARGB_2, 5V_ARGB_3)

1x speaker pin (SPEAK)

1 serial port pin (COM)

1x Clear CMOS jumper (CLR_CMOS)

1 Flash BIOS pin (FL_BIOS1)

1 BIOS burner pin (JBIOS)

1 Diagnostic card pin (ESPI_HEADER)

Motherboard

Specifications

MATX version 244mm x 235mm
