SAPPHIRE NITRO+ 7900 GRE
SAPPHIRE NITRO+ 7900 GRE

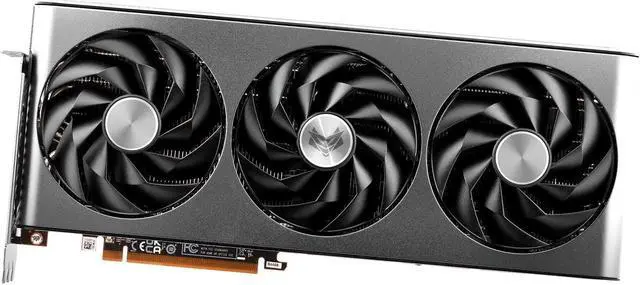

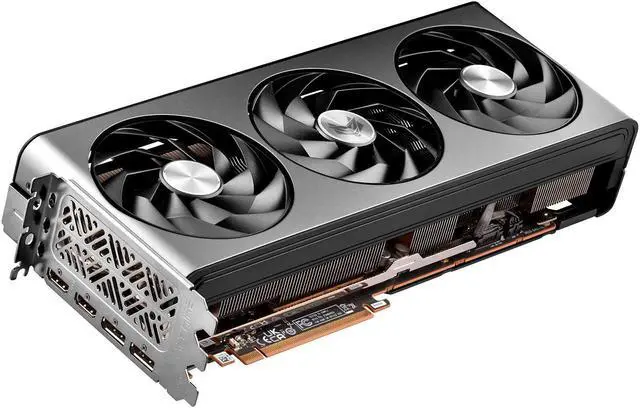

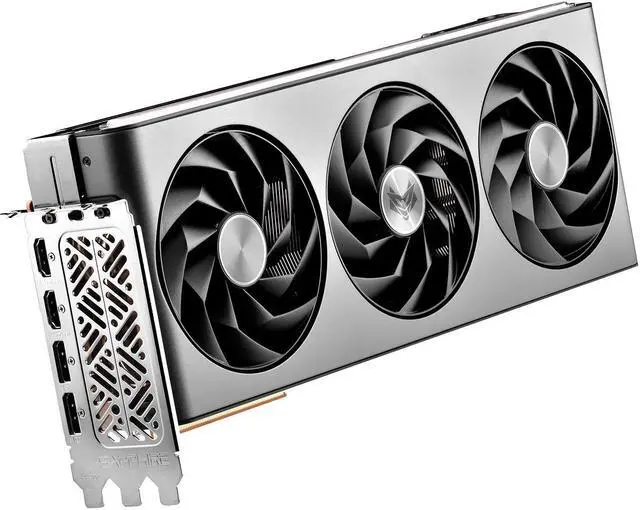

SAPPHIRE Radeon RX 7900 GRE 16GB GDDR6 Ultra Platinum OC
1)Core:Radeon RX 7900 GRE Graphics Card/5nm GPU/RDNA 3 Architecture Stream Processor Count
2)Stream Processor Count: 5120
3)Compute Units: 80 CU (with RT+AI Accelerator)
4)Infinite Cache: 64MB
5)Light Accelerator: 80
6)Memory: 16GB/256-bit GDDR6
7)Multi-Display: up to 4 monitors
8)Resolution HDMI: 7680×4320; DisplayPort 2.1: 7680×4320
9)Interface Type: PCI-Express 4.0 x16
10)Interface :2x HDMI; 2x DisplayPort
11)BIOS :Support Dual UEFI
12)Recommended Game:4K
13)Graphics card size: 3-slot, ATX/LxWxH: 320(L) x 134.85(W) x 61.57(H) mm
SAPPHIRE Radeon RX 7900 GRE 16GB GDDR6 Ultra Platinum OC
Core
Radeon RX 7900 GRE Graphics Card
5nm GPUs
RDNA 3 Architecture Stream Processor Count
Number of Stream Processors 5120
Compute Units 80 CU (with RT+AI Accelerator)
Unlimited Cache 64MB
Light Accelerator 80
Video Memory 16GB/256-bit GDDR6
Multi-Display Up to 4 monitors
Resolution HDMI: 7680 x 4320;
DisplayPort 2.1: 7680 x 4320
Interface Type PCI-Express 4.0 x16
Interface
2x HDMI
2x DisplayPort
BIOS Support Dual UEFI
Recommended Games 4K
Sapphire Features
Dual BIOS
TriXX Software Switch
Advanced Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
Tri-X Cooling Technology
High TG Copper Printed Circuit Boards
Optimized composite heat pipes
Intelligent Fan Control
Precision Fan Control

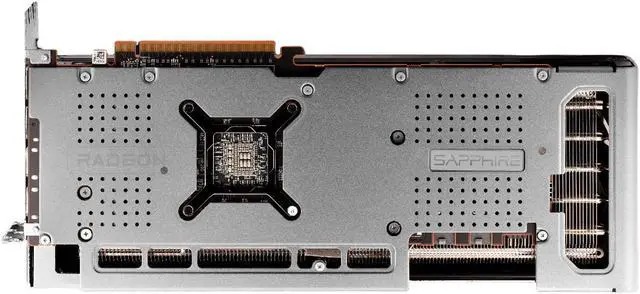

Metal Backplate with ARGB
ARGB light bar
Dual Ball Bearing Fans
Angular velocity fan blades
Auxiliary System Fan Control
Aluminum Frame
Dedicated VRM Cooling
Waveform Fin Design
V-Fin Design for GPU Cooling
TriXX Support
Fan Check
Fan Quick Connect
TriXX Boost
NITRO Glow
External RGB LED MB Synchronization
Random Accessories
Graphics Card Support Bracket
ARGB Extension Cable Features
Features
AMD RDNA 3 Architecture
80 AMD RDNA 3 Compute Units
64MB AMD Infinity Cache Technology
DisplayPort 2.1 support
AMD Radiance Display Engine
16GB GDDR6 on a 256-bit memory bus
Supports PCI® Express 4.0
AMD FidelityFX Super Resolution Technology
Supports Microsoft® DirectX® 12 Ultimate
Support for Microsoft® DirectStorage
Vulkan® Optimization
AMD Smart Technologies
AMD Software: Adrenaline Edition
AMD Noise Suppression
AMD Privacy View
AMD Radeon Super Resolution Technology
AMD Links
AMD FreeSync Technology
Cooling System
3 Fans
Graphics Card Size
3-slot, ATX
LxWxH: 320 (L) x 134.85 (W) x 61.57 (H) mm
Power Consumption
288W Total Graphics Power
Operating System
Linux®, Windows® 10, Windows 11, 64Bit Operating System Requirements
Requirements/External Power Supply
Minimum 700W power supply
2 x 8-pin power cables.
One x16-channel PCIExpress® slot on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
