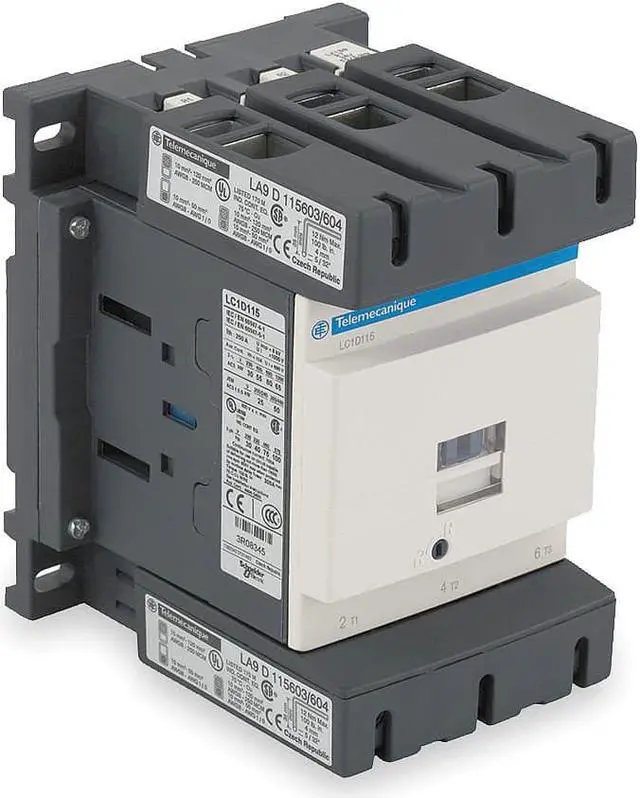

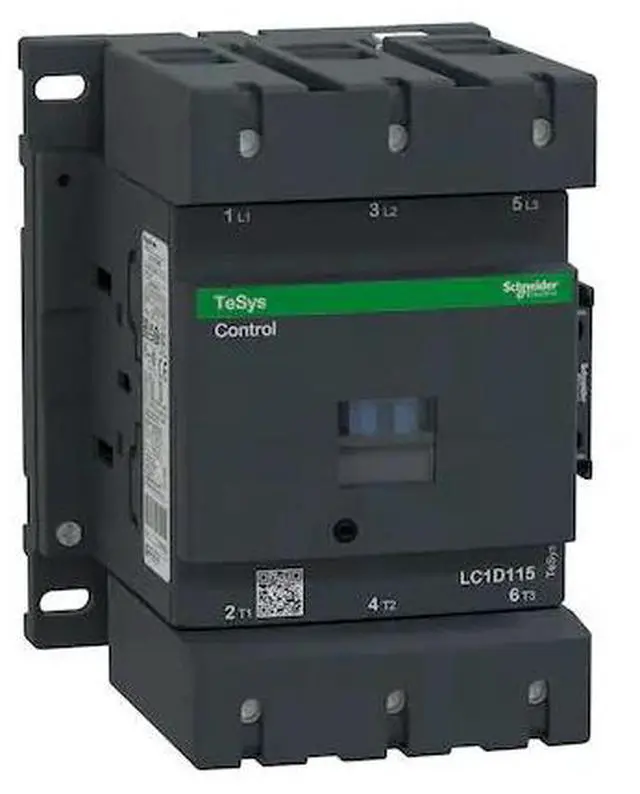

SQUARE D LC1D115G7 IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P,

The SQUARE D - IEC Magnetic Contactor is a non-reversing, three-pole device intended for use in motor control and resistive load applications. It operates with a coil voltage of 120V AC and has an auxiliary contact configuration of 1NO/1NC. The contactor's action is non-reversing, making it suitable for straightforward on/off operations. With its screw clamp terminals, the device is designed to facilitate potentially secure electrical connections. Its compatibility code is LC1D and it falls under the TeSys product series.

Key features include:

- A built-in bidirectional peak limiting diode suppressor intended to aid in managing voltage spikes.

- An average impedance of 0.6 mOhm at Ith 200 A 50 Hz for power circuit, potentially improving operation efficiency.

- Associated fuse rating includes multiple coordination types for both power and signalling circuits.

- Mechanical design aimed at withstanding vibrations of up to 4 Gn when closed and shocks of up to 15 Gn for 11 ms, under certain conditions.

- Tested fire resistance according to IEC standards, with results indicating endurance upto a maximum temperature of 850°C (1562°F).

- Rated insulation volts are set at between 600V to1000V for power circuit and between600V to690V for signalling circuit depending on various conditions.

- Rated for operation within altitude ranges from sea level upto approximately nine thousand eight hundred feet (3000 meters), under specified conditions.

Please note that this product does not come with an enclosure; however, it does include protective covers where necessary.
