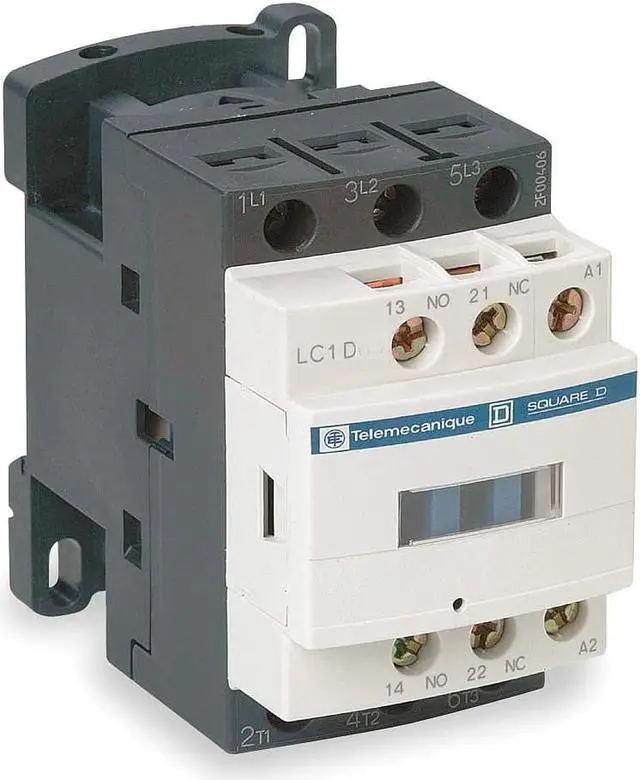

SQUARE D LC1D25T7 IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Non-Reversing,

The SQUARE D - IEC Magnetic Contactor is a non-reversing, three-pole contactor intended for use in motor control and resistive load applications. It operates with a coil voltage of 480V AC and features an auxiliary contact configuration of 1NO/1NC. The contactor has an average impedance of 2 mOhm at Ith 40 A 50 Hz for the power circuit and has been tested under conditions similar to IACS E10 exposure to damp heat and IEC 60947-1 Annex Q category D exposure to damp heat.

Key Features:

- Compatible with screw clamp terminals for both control circuits (flexible/solid without cable end) and power circuits (flexible/solid with or without cable end).

- Electrical durability tests have shown results ranging from 1.4 Mcycles (40 A, AC-1, Less than 440 V) up to approximately 1.65 Mcycles (25 A, AC-3e, Less than 440 V).

- Operating temperature should not exceed140 Degrees F.

- Includes a protective cover.

- Insulation voltage has been tested up until Power circuit:690 V as per the guidelines of the relevant IEC standards; Signalling circuit:690V as per the guidelines of the relevant IEC standards.

- Mechanical durability tests have shown results reaching approximately15 Mcycles.

- Mounting style supports DIN Rail or Plate mounting options.
