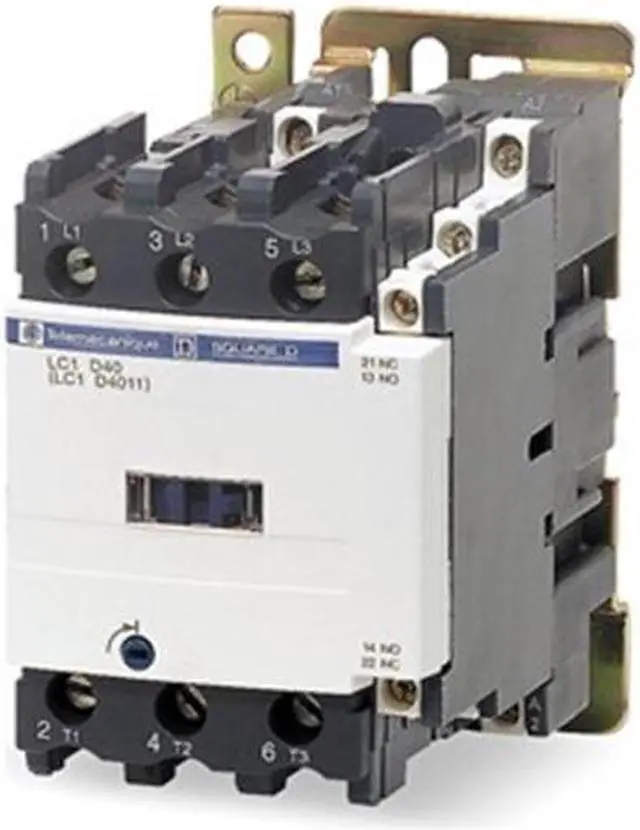

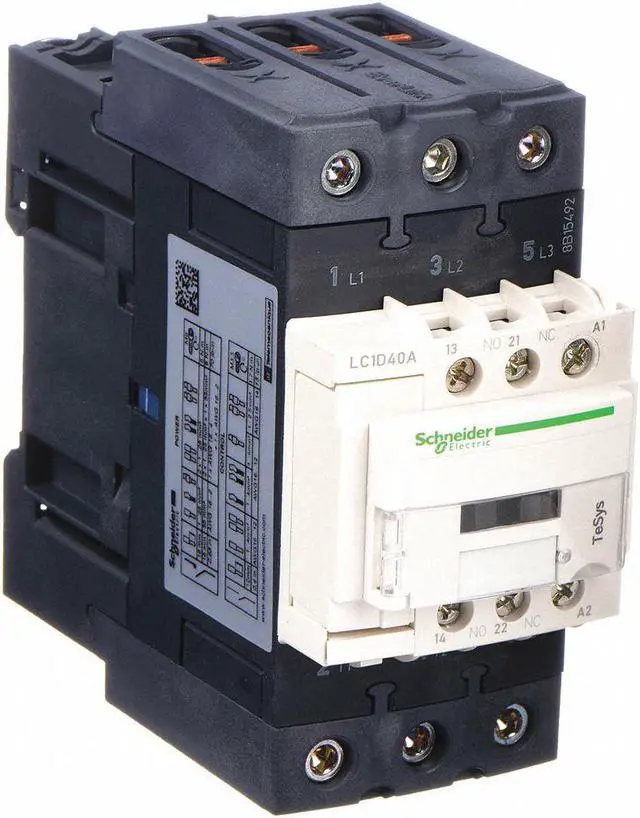

SCHNEIDER ELECTRIC LC1D40AB7 IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P,

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a non-reversing, three-phase contactor designed for motor control and resistive load applications. It operates with a coil voltage of 24V AC and features screw clamp terminals for secure electrical connections. The contactor is part of the TeSys series and adheres to various international standards including CCC, CSA, EN 60947-4-1, GOST, IEC 60335-1 among others. With an IP rating of IP20, it offers protection against touch by fingers and objects greater than 12mm.

Key Features:

- Auxiliary Contact Configuration: The contactor comes with a 1NO/1NC auxiliary contact form.

- Electrical Durability: Electrical durability rated for up to 1.5 Mcycles under specified conditions.

- Horsepower Ratings: Compatible with motors having horsepower ratings within the range of 3hp (single phase -120V AC) to a maximum of 30hp (three phase -600V AC).

- Operating Speed & Time: Rated for operation at speeds reaching up to 3600 cycles per hour with opening times between 4 to19 ms and closing times between12 to26 ms.

- Mounting Style: Versatile mounting options include DIN Rail or Plate mounting.

- Maximum Voltage Rating: Can withstand maximum voltages up to690V AC

- Mechanical Durability: Mechanical durability is rated for up to6 Mcycles
