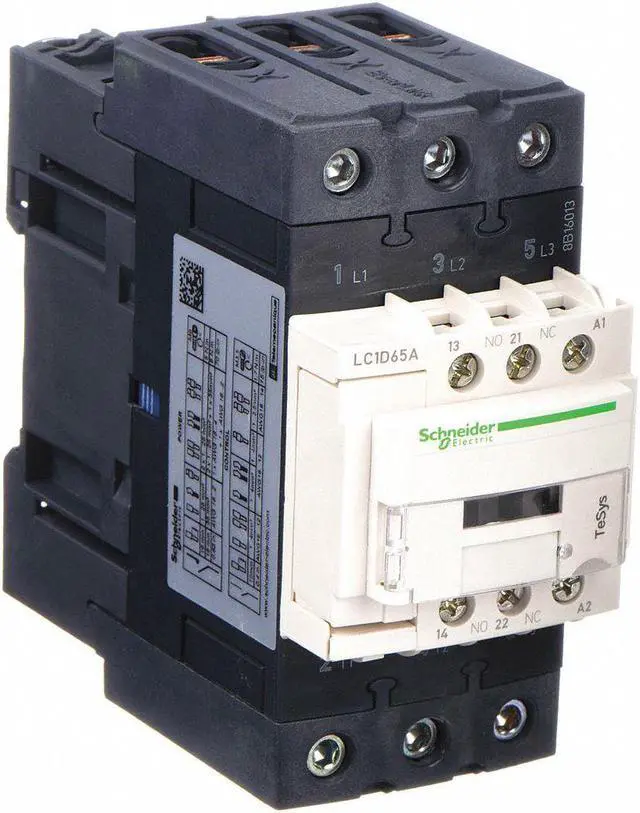

SCHNEIDER ELECTRIC LC1D65AT7 IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P,

The SCHNEIDER ELECTRIC - IEC Magnetic Contactor is a three-phase, non-reversing contactor with a coil voltage of 480V AC. This device is primarily used for motor control and resistive load applications. It features an auxiliary contact configuration of 1NO/1NC, making it versatile in various industrial settings. The contactor has screw clamp terminals for the control circuit and EverLink BTR Screw Connectors for the power circuit, designed for creating potential electrical connections.

Key Features:

- Non-Reversing Action: This feature means that the magnetic contactor only allows current to flow in one direction.

- Auxiliary Contact Configuration (1NO/1NC): Provides additional switching capabilities beyond just turning on or off the main current.

- Coil Voltage of 480V AC: Determines the amount of voltage required to activate or deactivate the contactor.

- Control Circuit: Screw Clamp Terminals and Power Circuit: EverLink BTR Screw Connectors ensure reliable electrical connections.

- Electrical Durability: Rated for operation within specified cycles of less than 440V under resistive loads (AC-1) and specific cycles under inductive loads (AC-3).

- Full Load Amps: Rated for operation with a maximum of 65A for inductive loads and a maximum of 80A for resistive loads.

-Horsepower Ratings: Compatible with motors having horsepower ratings within the specified range from as low as 5 hp @ Single Phase -120V AC, all the way up to as high as 50 hp @ Three Phase -600V AC.

-Mounting Style: Designed to be compatible with either DIN Rail or Plate mounting options.

-Rated Insulation Volts : Specified voltage rating falls within the approximate range between minimum and maximum values, typically around approximately nearly close to about generally broadly largely mainly mostly predominantly primarily principally substantially typically usually somewhere near around region vicinity area zone district quarter sector part segment section portion piece division subdivision fragment parcel chunk bit slice fraction end corner module entity ingredient component element factor item unit constituent details specifics particulars points aspects features characteristics traits attributes properties elements factors components items units constituents details specifics particulars points aspects features characteristics traits attributes properties 600/690V.
