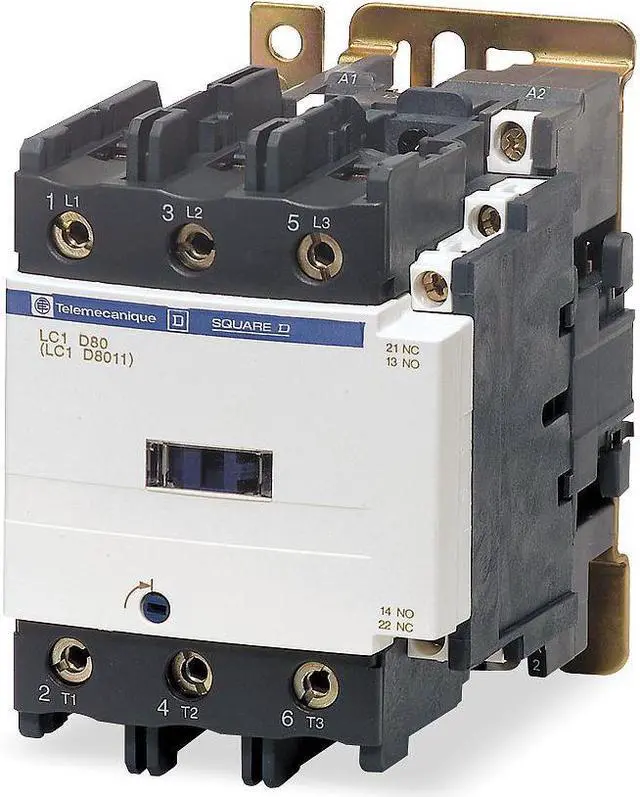

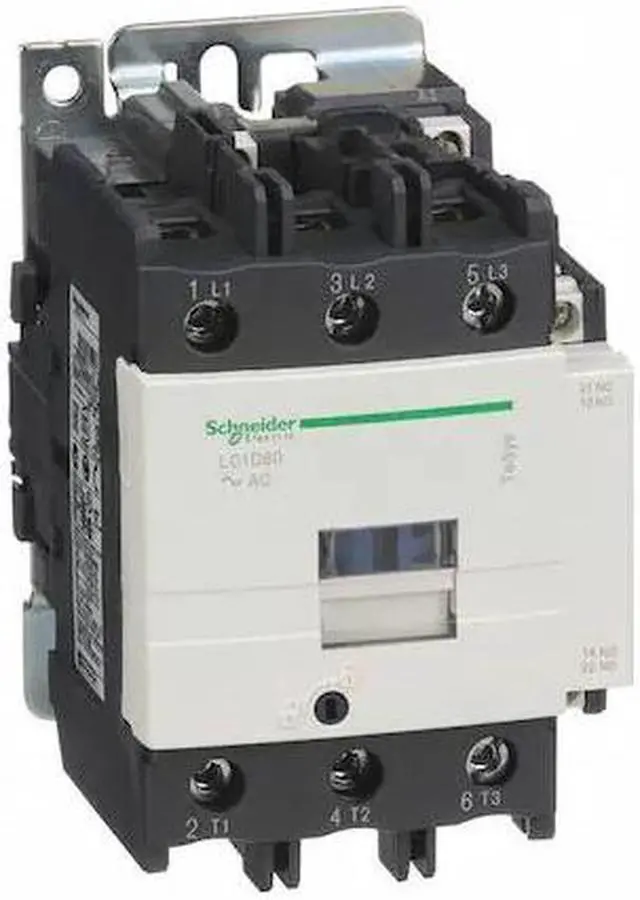

SCHNEIDER ELECTRIC LC1D80G7 IEC Magnetic Contactor, 3 Poles, 120V AC, 80 A,
- 5.500 3" Harsh Environment, Hook-and-Loop Closure
- N/A
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
IEC Magnetic Contactor, Full Load Amps-Inductive 80, Full Load Amps-Resistive 125, Number of Poles 3, Coil Volts 120V AC, Reversing No, HP @ 1 Phase - 120V 7 1/2 hp, HP @ 1 Phase - 240V 15 hp, HP @ 3 Phase - 208V 30 hp, HP @ 3 Phase - 240V 30 hp, HP @ 3 Phase - 480V 60 hp, HP @ 3 Phase - 575V 60 hp, Aux. Contact Configuration 1NO/1NC, Enclosure NEMA Rating No Enclosure, Hz 50/60, Height 5 in, Width 3.34 in, Depth 5.12 in, Standards CSA, UL, Frame / Series / Class / Code TeSys.
