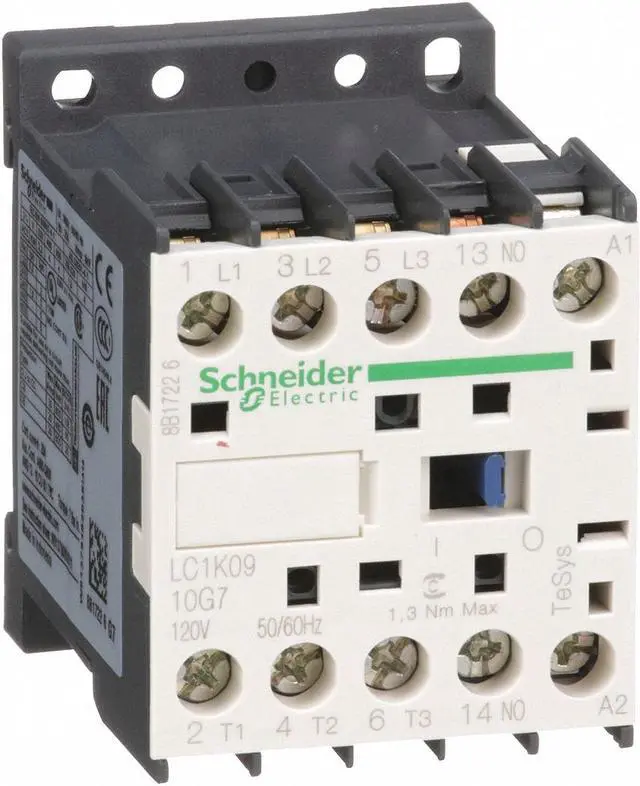

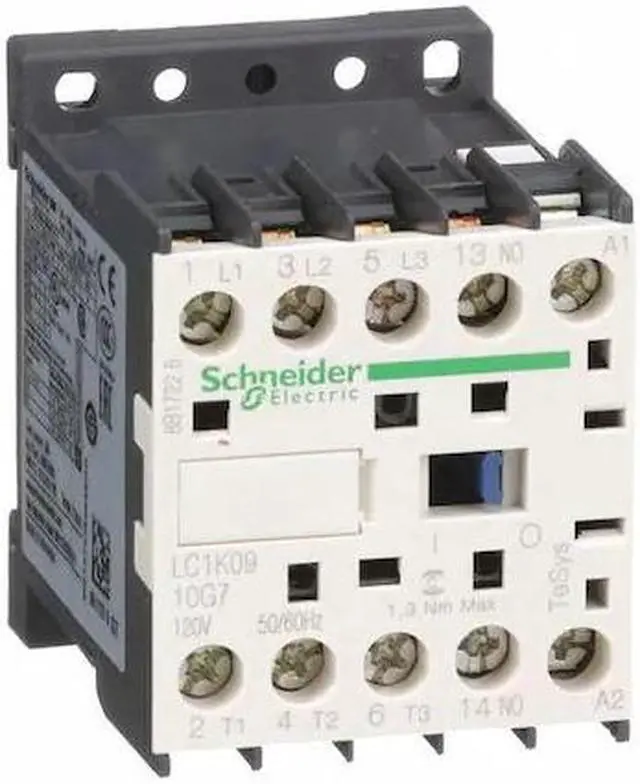

SCHNEIDER ELECTRIC LC1K0910G7 IEC Miniature Magnetic Contactor, 1NO, 120V AC, 3

The SCHNEIDER ELECTRIC - IEC Miniature Magnetic Contactor is a motor control and resistive load device designed for industrial applications. This non-reversing contactor operates with a coil voltage of 120V AC, making it compatible with specified electrical systems. It features an auxiliary contact configuration of 1NO (Normally Open) and three main contacts that are also normally open. The product does not include an enclosure, allowing for flexible installation options based on your specific needs.

Key Features:

- Operates at a frequency of 50/60 Hz.

- Full Load Amps: Inductive - 9 A; Resistive - 20 A.

- Horsepower specifications are as follows: minimum of 1/2 hp at Single Phase - 120V AC, maximum of 5 hp at Three Phase -600V AC.

- Operating wattage varies depending on voltage, ranging from a minimum of 2.2 kW to a maximum of 4 kW.

- Control Circuit Voltage Specifications: Functions within the range of .8 and 1.15 Uc under conditions approximating fifty degrees Celsius; drop-out occurs between .2 and .75 Uc under similar conditions.

- Equipped with Auxiliary Contacts

- Breaking capacity is dependent on voltage, varying from seventy amps at six hundred sixty volts up to one hundred ten amps at lower voltages such as two hundred twenty volts or four hundred fifteen volts.

-Terminal Connection Type: Screw Clamp
