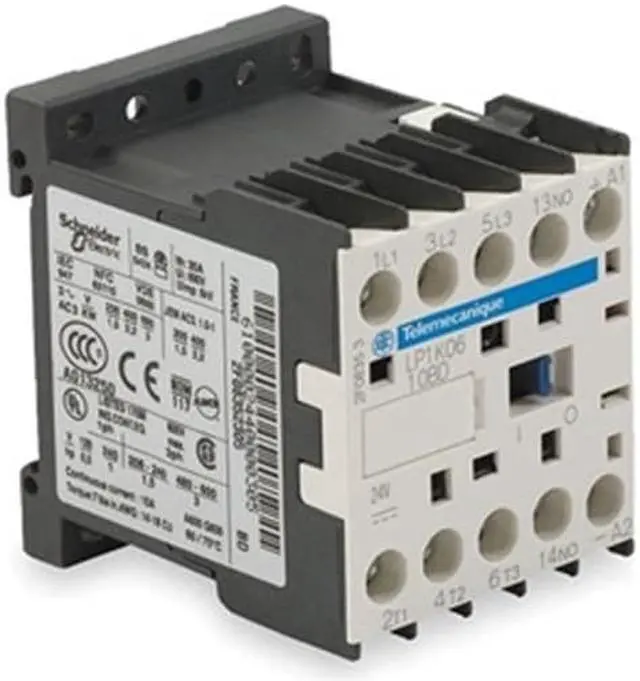

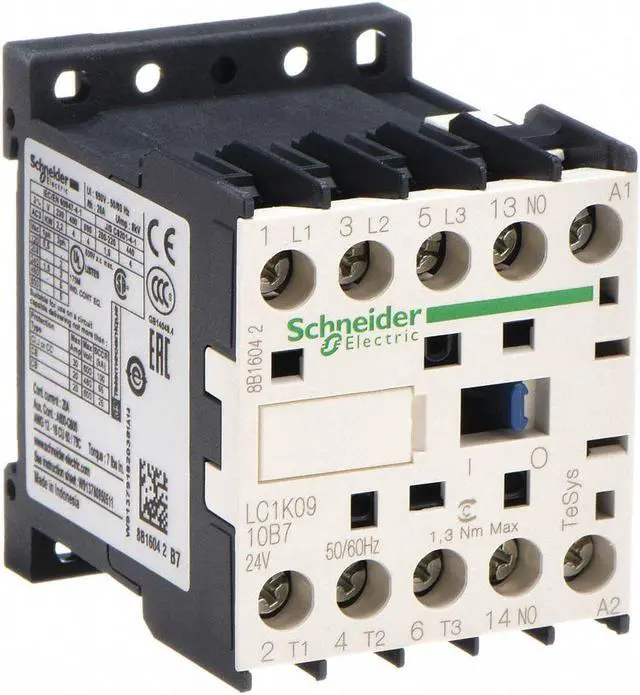

SQUARE D LP1K0910BD IEC Miniature Magnetic Contactor, 1NO, 24V DC, 3 P,

The SQUARE D - IEC Miniature Magnetic Contactor is intended for use in motor control and resistive load applications. The specified operational ambient air temperature range is -13 to 122°F (-25 to 50°C) and storage temperatures are specified between -58 to 176°F (-50 to 80°C). This device has a coil voltage specification of 24V DC, with defined operational limits between 0.8 to 1.15 Uc (at 50°C), and drop-out limits between 0.1 to 0.75 Uc (at 50°C). The contactor comes with an auxiliary contact configuration that includes one normally open (NO) type, instantaneous contacts.

Key features include:

- Associated fuse rating: Compatible with fuses rated at up-to either; *25 A gG less than or equal to the power circuit's maximum voltage of 440 V *10 A gG for signalling circuits conforming both IEC60947 and VDE0660 standards.

- Connections: Provides multiple screw clamp terminal connections compatible with various wire sizes.

- Electrical durability: Rated endurance up-to; *1.3 Mcycles at AC-3 less than or equal to the power circuit's maximum voltage of 440 V *Rated endurance: Up-to *0.16 Mcycles at AC-1 less than or equal to the power circuit's maximum voltage of 690 V.

- Mounting style options include DIN rail and plate mounting support.

- Rated insulation volts: Insulation resistance rating up-to either; *600V as per UL508 standard *690V as per IEC60947 standard.

This device has been tested to meet the requirements of various certifications including CB Scheme, CCC, UL Listed, CSA Certified, EAC certified CE marked and UKCA approved.
