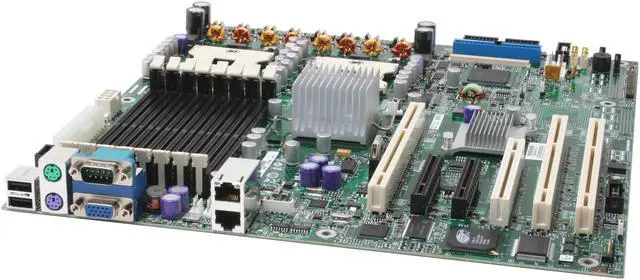

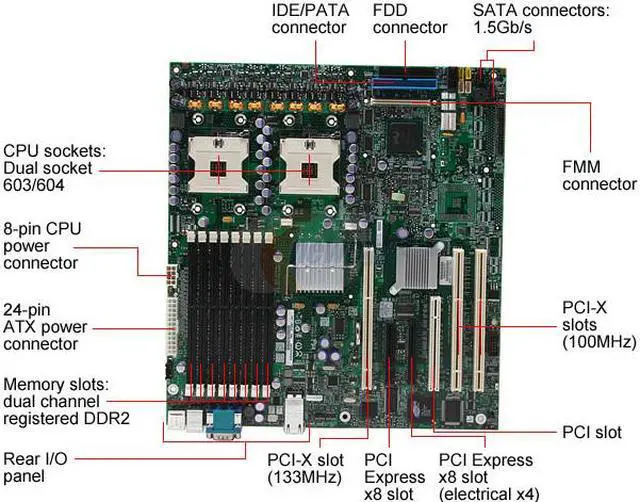

    Intel SE7520BD2SATAD2 SSI EEB 3.0 Server Motherboard Dual 603/604 Intel E7520 DDR2 400

    Be the first to review this product...
    • Dual 603/604
    • Intel E7520
    • 8 x 240Pin
    +
    +
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the Intel SE7520BD2SATAD2

    Model
    Brand Intel
    Model SE7520BD2SATAD2
    Supported CPU
    CPU Socket Type Dual 603/604
    CPU Type Dual Intel Xeon
    Supported CPU Technologies Hyper-Threading Technology
    Chipsets
    North Bridge Intel E7520
    Memory
    Number of DDR2 Slots 8 x 240Pin
    DDR2 Standard DDR2 400
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    ECC Supported Yes
    Registered Yes
    Expansion Slots
    PCI Express x16 None
    PCI Express x8 1 x PCI Express x8
    PCI Express x4 1 x PCI Express x4
    PCI Slots 1 x PCI Slot
    Storage Devices
    SATA 2 x SATA 1.5Gb/s
    SATA RAID 0/1
    Onboard Video
    Onboard Video Chipset ATI RAGE XL
    Onboard LAN
    LAN Chipset Intel 82541PI
    LAN Speed 10/100/1000Mbps
    Second LAN Chipset Marvell 88E8050
    Second LAN Speed 10/100/1000Mbps
    Max LAN Speed 2 x 1Gbps
    Rear Panel Ports
    PS/2 2
    COM 1
    Video Ports 1
    USB 1.1/2.0 2 x USB 2.0
    Onboard Ports
    Onboard USB two USB internal headers
    Dimensions
    Form Factor SSI EEB 3.0
    Dimensions (W x L) 12.0" x 13.0"
    Packaging
    Package Contents SE7520BD2SATAD2
    IDE Cable
    FDD Cable
    2 x SATA Cable
    COM Port Bracket
    Rear I/O Panel Shield
    2 x Software Disk
    Additional Information
    First Listed on Newegg November 08, 2019
