I can't tell but does this come with a heatsink?

Hello George. No, it does not come with it's own heatsink. I got the Gigabyte X570 Aorus Master motherboard and the onboard heatsinks worked fine with it.

If I'm looking to upgrade my PC later down the road, keeping in mind gen 4 pcie, would I be able to use this on my current motherboard with gen 3?

For the most part, all PCIe devices and computers are capable of utilizing older versions of PCIe, so while it won't run at gen 4 speeds on your gen 3 motherboard, it will work just fine at gen 3 speeds.

Will this SSD work on my ASUS Z170-A LGA 1151 Intel Z170 HDMI SATA 6Gb/s USB 3.1 USB 3.0 ATX Intel Motherboard?

Yes, but it would be a complete waste of money. This is a PCIe 4 SSD, intended for newer 7nm Ryzen 3000 CPUs, but your board will only go as fast as PCIe 3. It'll work, but you won't get the full performance it can offer.

Is this SSD compatible with the Dell XPS 9550?

Yes. The specs are M.2 Slot - 1x 2280 PCIe NVMe. You may need to purchase screw and thermal cover to mount in the laptop.

Are the chips on the 1TB version on one side of the board or both?

I'm sorry I was incorrect it is on both

I have a PCIe Gen 4-capable motherboard (MSI MAG Tomahawk Z490). However, my CPU only allows PCIe Gen 3 (Intel Core i9-10900K). Will I get any benefit *today* if I were to purchase a PCIe Gen 4 SSD NVMe? Or is the generational improvement something that can be achieved if I also have a Gen 4-capable CPU?

You will, faster read and write speeds, boot time will be faster

$159^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by C.N.E Technology

Top Rated

4.3 (20 seller ratings)

Shipped by C.N.E Technology

Best Sellers

Neworld

4.4 (309 total ratings)

$189^.99
+ FREE SHIPPING

Meet Your Seller

C.N.E Technology

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

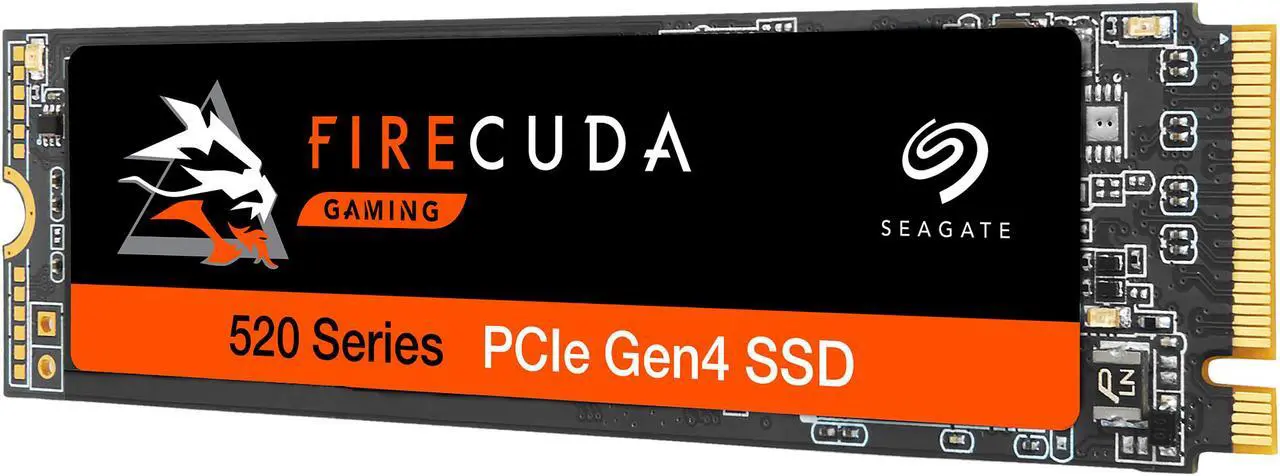

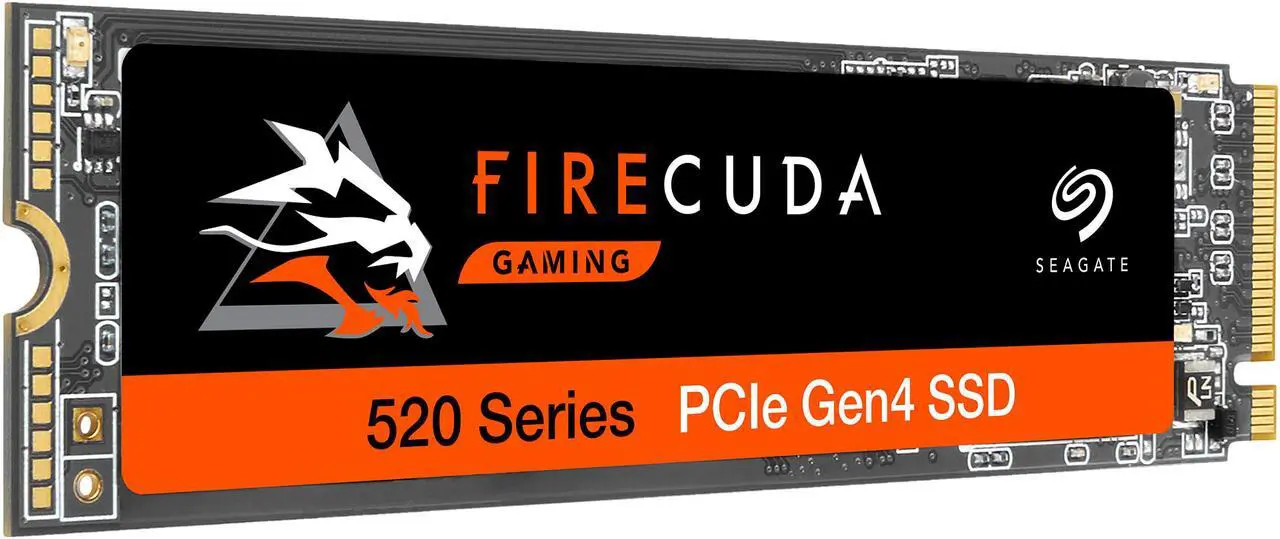

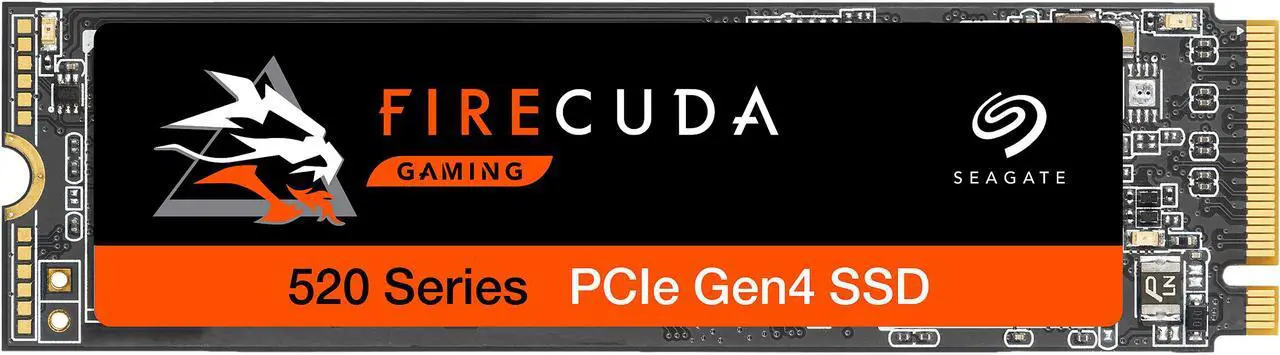

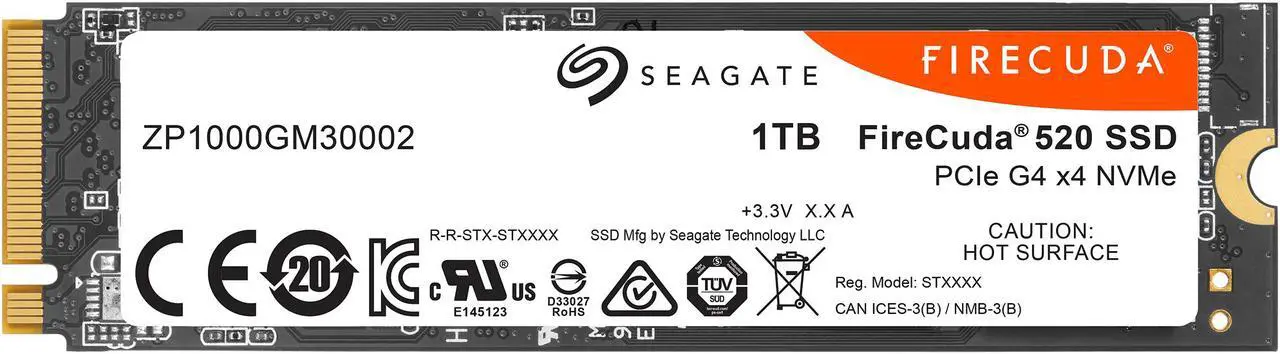

Seagate Firecuda 520 1TB Performance Internal Solid State Drive SSD PCIe Gen4 X4 NVMe 1.3 for Gaming PC Gaming Laptop Desktop - 3-year Rescue Service (ZP1000GM3A002)

(215)(6) Write a Review

Options: 1TB

2TB
1TB
500GB

Performance internal Solid State Drive: 2TB, 1TB, 500GB
Maximum sequential read and write speeds up to 5000 MB/s and 4400 MB/s
MTBF of 1.8M hours and TBW of up to 1800TB, plus 3-year Rescue Service
Ideal for high-performance gaming PCs and creative Pro workstations
Seagate validated E16 is fully aligned with AMD X570 chipset motherboards

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (215)

Model
Brand	Seagate
Series	FireCuda 520
Model	ZP1000GM3A002
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer

Details
Form Factor	M.2 2280
Capacity	1TB
Memory Components	3D TLC
Interface	PCIe Gen4 x4, NVMe 1.3

Performance
Max Sequential Read	Up to 5000 MBps
Max Sequential Write	Up to 4400 MBps
4KB Random Read	Up to 760,000 IOPS
4KB Random Write	Up to 700,000 IOPS
Terabytes Written (TBW)	1800TB
MTBF	1,800,000 hours

Features
Features	Leverage sequential read/write performance up to 5000/4400 MB/s, and random read/write up to 760K/700K IOPS. Take advantage of up to 45% more speed than Gen3 M.2 NVMe and up to 9x faster sequential reads than SATA SSDs. Utilize an E16 controller that is fully aligned with AMD X570 chipset motherboards. Easily upgrade to a drive that's compatible with Gen4 motherboards and fully backwards compatible with all PCIe 3.0 platforms. Enjoy the latest NAND technology, which provides the most advanced speed and durability for your dollar. Choose from multiple capacities (up to 2TB), and store your gaming library on your boot drive. Download our free SeaTools SSD software to take advantage of drive performance reporting, S.M.A.R.T. attributes, health monitoring, firmware updates, diagnostics, managing logs - and multiple gamer theme options.

Environmental
Power Consumption (Idle)	15 mW
Power Consumption (Active)	5.6W
Operating Temperature	0°C ~ +70°C
Storage Temperature	-40°C ~ +85°C
Max Shock Resistance	1500G

Dimensions & Weight
Height	3.58mm
Width	22.15mm
Depth	80.15mm
Weight	8.50g

Additional Information
First Listed on Newegg	October 13, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by C.N.E Technology Return Policy
