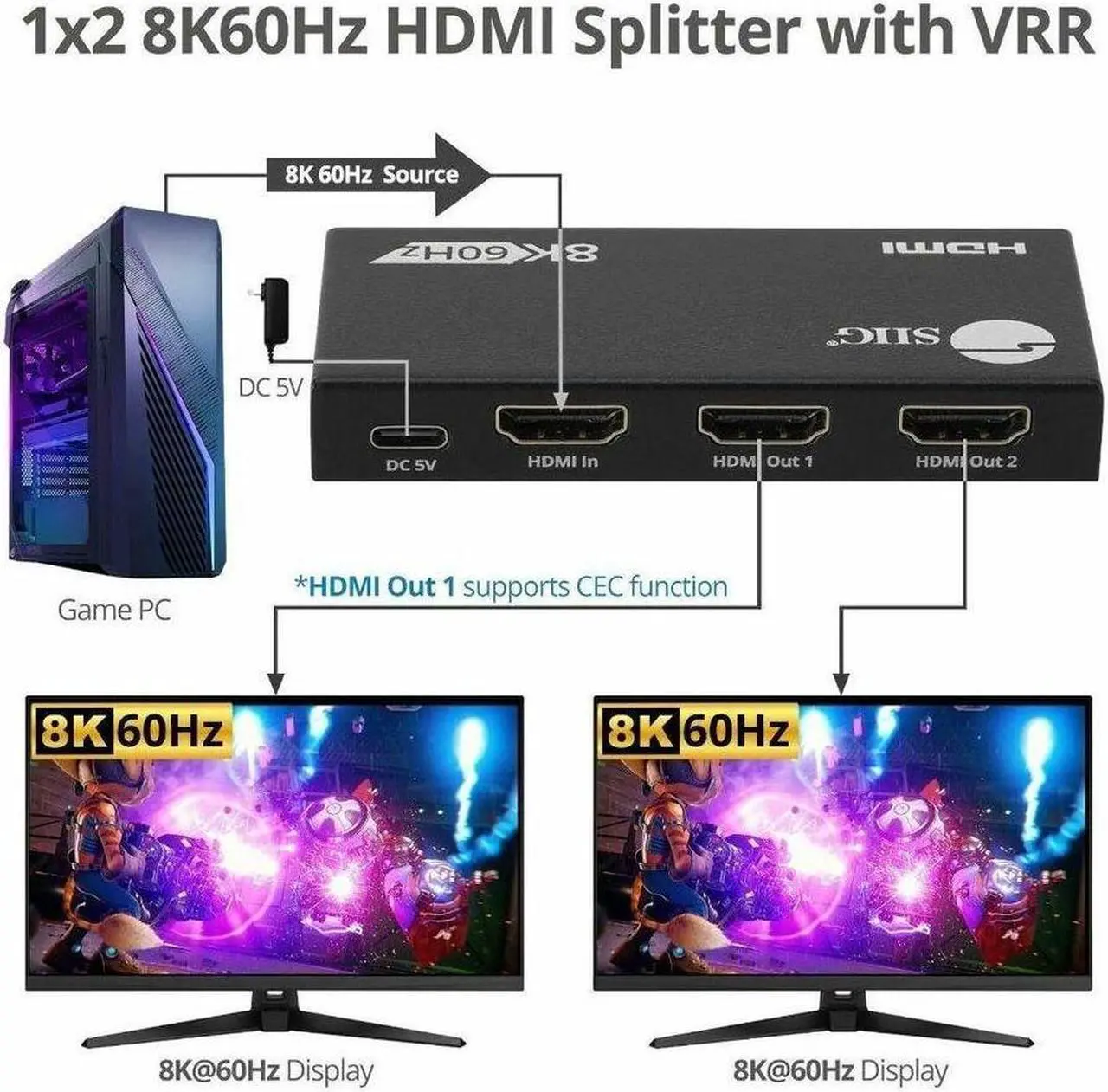

Splits one HDMI signal to two HDMI Displays simultaneously, supports Ultra HD resolution up to 8K@60Hz, 4K@144Hz (via Copy mode), 4K@120Hz, also supports HDCP 2.3, HDR 10, CEC control on HDMI Out 1
+
+
Overview
Specs
Reviews

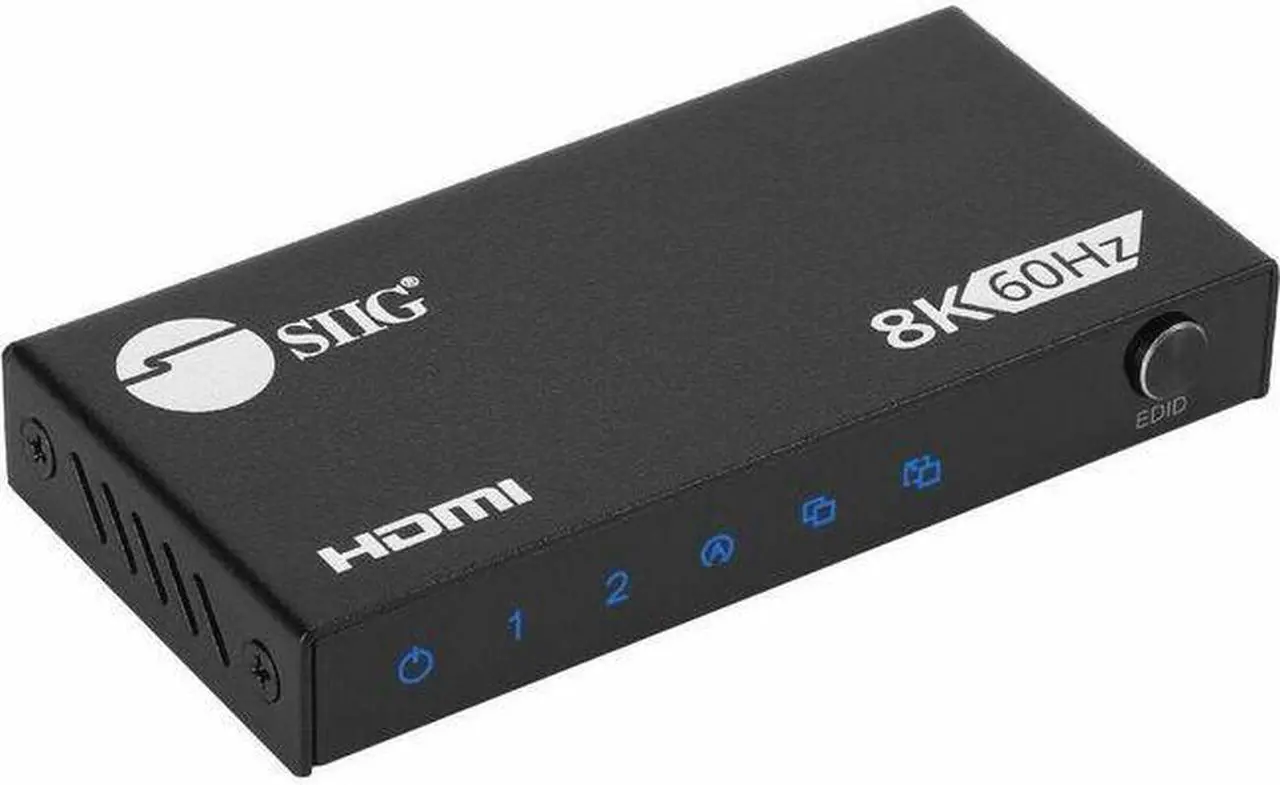

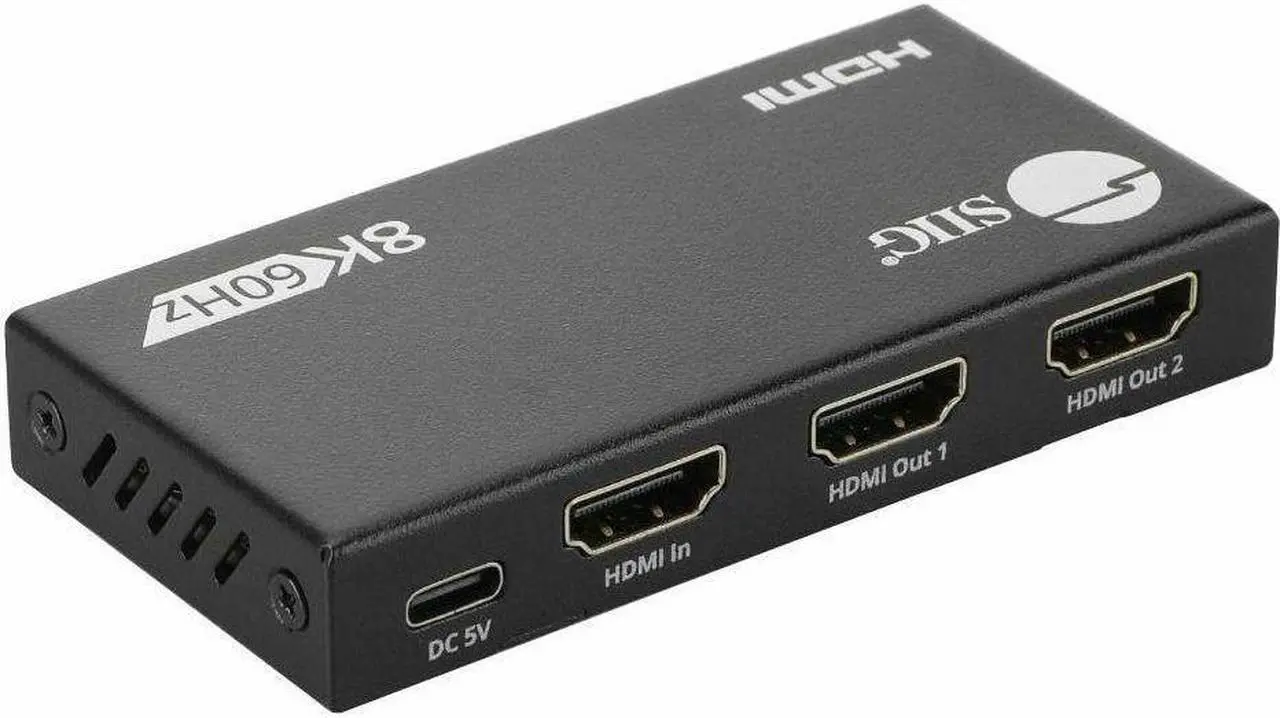

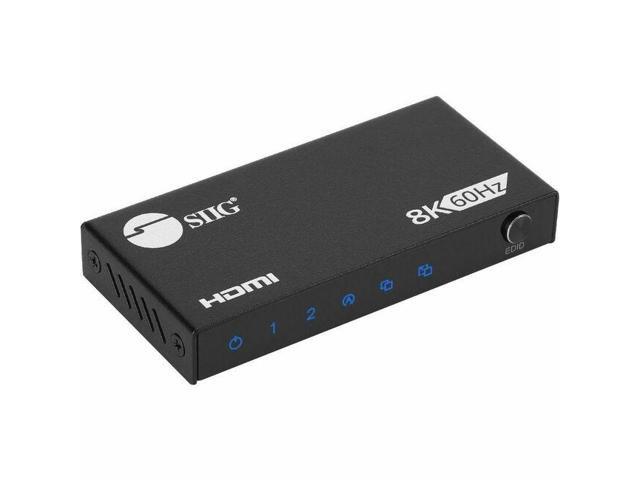

SIIG 1x2 8K 60Hz HDMI Splitter with VRR/ALLM - Up to 8K@60Hz, 1 HDMI in 2 Out, HDCP 2.3, VRR/ALLM, LPCM 7.1 ch, Compatible with DTS-HD/Dolby Digital/Dolby TrueHD, Downscaler, EDID Management
Learn more about the SIIG, Inc CE-H27N11-S1
Model
Brand
SIIG, Inc
Model
CE-H27N11-S1
Part Number
CE-H27N11-S1
Details
Specifications

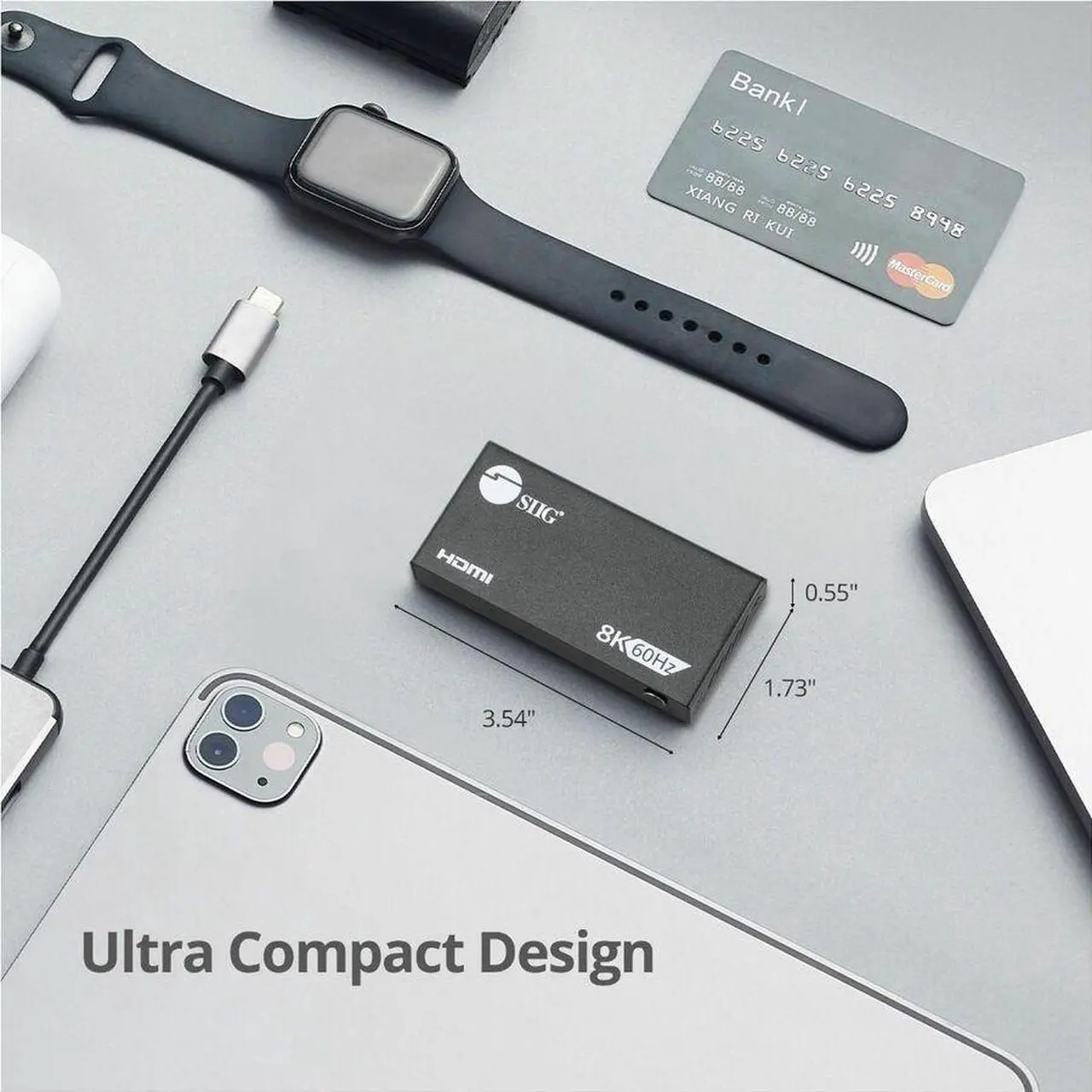

Video HDMI 1x input, 2x output Resolution 7680 x 4320@60Hz 4096 x 2160@60Hz / 30Hz / 24Hz 3840 x 2160@144Hz / 120Hz / 60Hz / 50Hz / 30Hz / 24Hz 3440 x 1440@100Hz / 60Hz 2560 x 1600@60hz / 30Hz 2560 x 1440@100Hz / 60Hz 2048 x 1536@60Hz / 50Hz / 30Hz 1920 x 1080 / 1680 x 1050 / 1600 x 900 / 1400 x 900 / 1280 x 1024 / /1280 x 800 / 1280 x 720 / 1024 x 768 / 800 x 600 / 640 x 480p@60Hz HDCP 2.3/2.2/1.4 HDR 10 / 10+ Color deep 36-bit (12-bit per channel) Video Bandwidth up to 40Gbps Audio HDMI Dolby 5.1/7.1 and Atmos (need to copy TV EDID), DTS 5.1/7.1, and PCM 2/5.1/7.1 EDID Switch Easily switch between EDID modes with the dedicated EDID button, supports Auto/Copy/Downscaler modes Power Power Adapter Input: AC 100-240V/50-60Hz, Output: DC 5V/1A UL listed E470034/Level: VI Product Info Dimensions 3.54” (L) x0.55” (H) x 1.73" (W) Weight 0.20lbs Color Black Housing material Metal Unit Package Dimensions 7.17” (L) x1.77” (H) x 4.84" (W) Weight 0.51lbs Environmental conditions Operating temperature 32 to 140 degrees F Storage temperature -4 to 158 degrees F Relative humidity: 5% to 90% RH (non-condensing) Certifications/Standards FCC, CE, RoHS, REACH Warranty: 2 years limited Country of origin: China
Features
Features
Splits one HDMI signal to two HDMI Displays simultaneously, supports Ultra HD resolution up to 8K@60Hz, 4K@144Hz (via Copy mode), 4K@120Hz, also supports HDCP 2.3, HDR 10, CEC control on HDMI Out 1
