Wavlink Technology
You can easily connect your PC to one 5K (5120 x 2880) @60Hz UHD display (DisplayPort Only) or two 4K (4096 x 2160) @60Hz UHD displays (DisplayPort + HDMI). It also provides Six additional USB 3.0 Type-A ports, Fast Gigabyte Ethernet Port, Audio/Mic port. Display Link Certified, DL- 6950 chip.
-Add multi-monitor capability to a single computer, to enhance multimedia presentations.
-Great for researchers and writers, offering the ability to have reference material on one display while working on a separate document on another.
-Increase productivity by running multiple applications on different screens
-View large or several spreadsheets across multiple displays.
-A compact, lightweight solution for traveling business associates using USB 3.0-capable laptop PCs, enabling connection to a secondary display/projector.
-Add an additional video output to computer systems with no room for expansion
Ultra-HD 5K (5120 x 2880@60Hz) single display
DisplayPort+DisplayPort output resolutions up to 5120 x 2880@60Hz single display when using dual DisplayPort). Provide you the highest resolution video with an incredible 14.7 million pixels give you amazing feast vision, showing every details clearly as like be personally on the scene. It also helps to improve operational efficiency on images and video editing.
Dual Video 4K@60HZ
the maximum resolution up to 3840x2160 (UHD) if both video outputs are being used.
Connection way: HDMI+display port or HDMI+HDMI or display port+display port, which will greatly help you facilitate high-resolution works, graphically intensive images, video editing, CAD drawings, medical imagery and more.
* On HDMI output make sure your HDMI cable is capable of 4K @ 60Hz. For Display port make sure your monitor supports DP 1.2 and make sure monitor settings are configured to use DP 1.2 and not 1.1
Gigabit Ethernet Port
Gigabit Ethernet coming with a RJ-45 port over 10/100/1000Mbps speed, you can quickly download large files, stream movies, and more.
* Ethernet port requires full-duplex network infrastructure.
Six USB 3.0 Ports
USB 3.0 ports for super transfer speed up to 5Gbps and 900mA of power, you can connect your usb peripherals or usb stick to solve external USB devices and high-speed file transfer for home office workers.
* 2.4Ghz wireless devices such as wireless keyboard/mouse receivers, Bluetooth and WiFi adapter, may not work in the USB 3.0 ports on the dock. A short USB 2.0 extension cable to move the wireless device further from the dock will often resolve the issue.
Driver
This item has DL-6950 chipset which made by Displaylink. Please go to download the latest driver from displaylink
Processor: 1.2GHz or faster with support SSE2
RAM: 2GB for 1 DisplayLink display. 4 GB or more recommended for 2 or more DisplayLink displays
-Windows XP ( 32-bit)/ Vista /7 / 8 / 8.1 / 10
-Mac OS 10.6 to 10.13.3
- 2015 and later Chromebooks
- Android 5.x Tablet or Smartphone
ANDROID and CHROME
ANDROID: Available on the Google Play Store. For Android v5.0 (Lollipop) or Later
Not Compatible With:
-Windows XP (64-bit ), Linux/Unix or ARM based Windows operating systems (such as Surface RT).
Please download the latest drive form displaylink:
www.displaylink.com/downloads

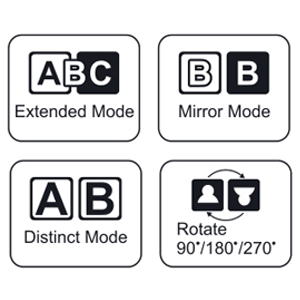

Extend Mode- Extend your working desktop with split-screen presentation to enhance work efficiency.
Mirror Mode - You can conveniently share and enjoy videos or slideshows on the big and high definition screen.
Primary or Replace mode: This mode is used if wanting to use your laptop with the lid closed.
-Max 5K (5120 x 2880@60Hz) resolution only via dual Display Ports with 5K monitor.
-Does not provide power attached to host laptop or tablet; the host system will still require its power cable/charger.
-Cannot be mixed with non-DisplayLink USB graphics adapters and drivers (e.g. MCT, j5, or SMSC).
-This docking station is not compatible with the graphics card on notebook PC (NVIDIA GeForce).
-On HDMI output make sure your HDMI cable is capable of 4K @ 60Hz.
-Supports DP 1.2 and make sure monitor settings are
Note:
-Cannot be mixed with non-DisplayLink USB graphics adapters and drivers (e.g. MCT, j5, or SMSC).
- 5K resolution is only avaliable when you connect one monitor to two DisplayPorts.
- Ethernet port requires full-duplex network infrastructure.
-2.4Ghz wireless devices such as wireless keyboard/mouse receivers, Bluetooth and WiFi adapter do not work in the USB3.0 ports, please try to connect the USB2.0 ports.
Strong Aluminum Construction
Unbreakable and durable use, which will bring a good news to the families with children without worrying about the naughty children to break it any more.

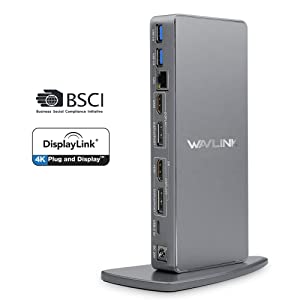

Vertical Stand - Space Saving Design
Maximize the space on your desk and enhance your productivity. It creates an organized and full-sized workstation with less clutter, which is great for your laptop, Mocbook, Ultrabook.
In The Box
1 x USB C Dual 4K Universal Dock station
1 x 100W power adapter
1 x USB Type C to C Cable
1 x USB Type C to A cable
1 x CD Driver
1 x Instruction Manual
In the box, we provide a USB-C to USB-C cable and a USB-C to USB-A Cable, So It can connect to any host with Standard USB Type-A or USB Type-C !
