ST8-A5: specification
OS: android 11
CPU: MTK Helio P60, 4 cortex-A73 2.0GHz, 4 cortex-A53 2.0GHz
RAM and ROM: 6GB ram + 128GB rom
LCD: 8 inch 1920*1200 resolution; max 400 nits brightness
Touch screen: capacity touch panel
Camera: 5M front / rear 13M
Power and battery: battery capacity 7800mAh 3.5*1.35mm, 5V 3A DC in put
WWAN:
4G LTE, 3G WCDMA, GSM, "4G Fre:
FDD: B1,B2, B3, B4, B5, B7, B8, B28
TDD: B40
B34
WCDMA:B1, B2,B4,B5,B8
GSM: B2, B3, B5, B8"
GPS: baidou,GPS, glonass
wifi 802.11a b c, g,n/ac wireless internet Wireless AP ( Mobile AP )2.4G, 5G
BLUETOOTH: 4.2 version
NFC: 13.56 MHz, distance 5cm or above
SPEAKER: 1.5 watt
Sensor:
1. light sensor
2. acceleration/gravity
Device size: 228*137*13.3mm
Device net weight: 0.6kg
Multi-media:
(Hardware decoding)" Photo Viewer BMP, JPG, GIF, PNG
Video Format MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P)
Audio Format MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license)
language:multi language
interface:
in/out port:
1.USB*1
2. Micro USB*1

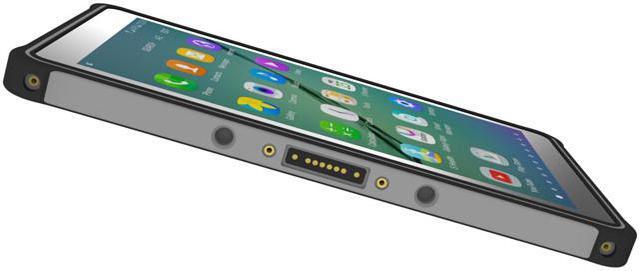

3. bottom pogopin*1, USB and serial
5. back pogopin*1
6. DC*1 3.5*1.35
7. microphone+earphone
8. micro SD*1
9. SIM card*1"
Pogopin definition:
1. 16pin back of cover, include (1USB, 1 RS232, 1 UART, 3.3V, 5V)
2. 8pin in bottom; (1USB, 1 RS232, 1 UART, 5V)"
Casing material: ABS/PC/rubber TPU/aluminum
button: V+ -, Power, P, F, H
Accessories:
1. USB cable optional, not in box
2. charger
3. hand strap
4. car holder optional not in box
5. docking station optional not in box
6. car charger optional bot in box
7. white box, no logo
proof rate:
1. water proof IP65
2. Dropping proof 1.2 meter
Certification:
1. 810G
2. CE
Temperature:
1. storage temperature -25 to 80 degree
2. operation temperature -20 to 60 degree
