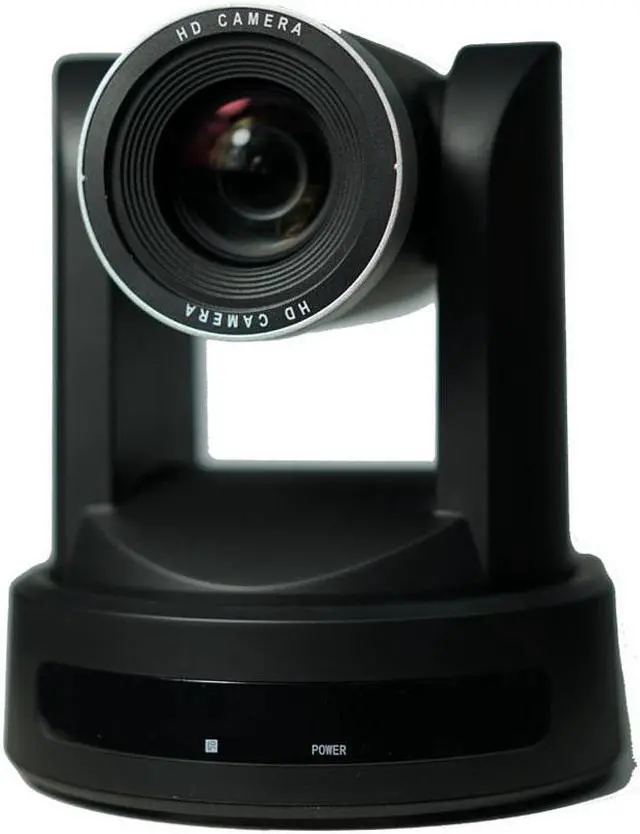

    2022 NEW NDI Video Conference Camera 20x +12x Zoom PTZ Camera SDI Live Streaming Camera IP Broadcasting Camera HDMI

    Be the first to review this product...
    • An NDI Full HD webconferencing camera for corporate, education and telemedicine applications with 20 x optical zoom and 60FPS high frame rates, combined with premium color restoration, captures stunning live images and supports NDI protocols to capture quality color video images in corporate conference rooms, classrooms, training centers and medical rooms.With advanced control algorithm can achieve accurate, smooth and quiet PTZ control, the camera can easily cover all indoor people during video conferencing, equipped with 255 preset positions, allowing it to easily and quickly reproduce clear pictures, and without any interference to the speaker or audience.To facilitate control and viewing, it can output NDI interface, DVI and HDMI interfaces, while automatically receiving VISCA command and PELCO-P / D protocol commands, with the option to use RS232 or RS485 interface.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    image for this item

    l Leading automatic focus technology

    lPositioning is precise, smooth, and quiet control algorithm PTZ control

    l Real FULL HD HD images

    l Low noise and high signal-to-noise ratio

    l 20 x optical zoom, 12 x digital zoom

    l Multiformat video output in full HD

    The NDI interface transmission is more stable and anti-interference.

    Supportfor 1080P60/50/30/25/59.94/29.97,1080I60/50/59.94,720P60/50/30/25/59.94/29.97 and many other high-definition video standards.

    l 255 Position preset positions

    l Multi-function remote control

    l Infrared remote control signal transmission function

    l Optional camera mirror image and flip function

    l OSD English menu function

    Application
    Conference system, telemedicine, distance teaching, etc

    Camera parameters
    imaging sensor 1 / 2.8 inch high quality CMOS sensor
    Effective pixel 2.07 million, 16:9
    vision signa HDMI.SDI.NDI Video format 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97
    Lens optical zoom 20 x optical zoom,12 x digital zoom f 4.7- 94mm
    angle of view 2.9°-55.4°
    Aperture factor F1.6 -F3.5
    Digital zoom 12X
    minimal illumination 0.5Lux(F1.8, AGC ON)
    Digital noise reduction 2D&3DDigital noise reduction
    white balance Manual / automatic / one-click white balance/3000K/ 4000K/5000K/6500K
    focus Automatic / manual
    aperture Automatic / manual
    Electronic shutter Automatic / manual
    Backlight compensation Open / pass
    Wide Dynamic Off / dynamic level adjustment
    Video regulation Brightness, chromatism, saturation, contrast, sharpness, black and white mode, gamma curve
    noise-signal ratio >55dB

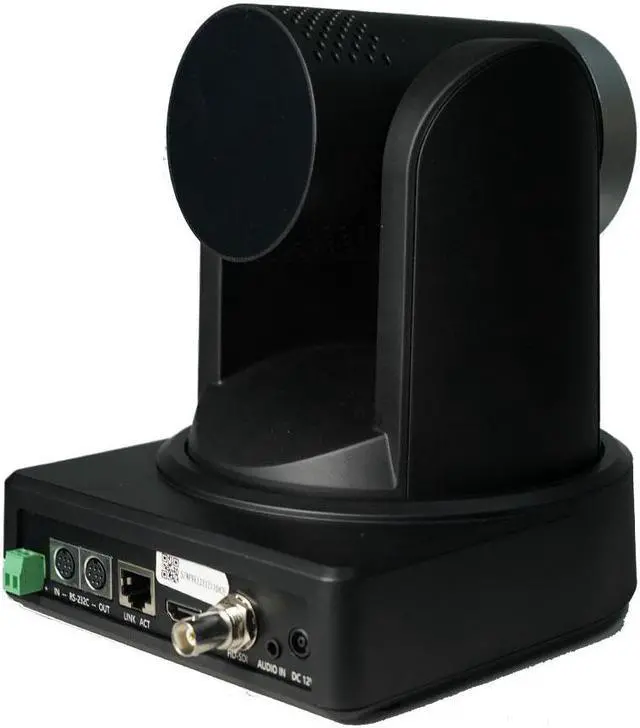

    Video interface HDMI . 3G-SDI . NDI
    Image code flow Dual-code flow output
    Video compression format H.265 H.264
    Control signal interface RS-232,Ring loop RS232 output
    control protocol VISCA/Pelco-D/Pelco-P;Baud rate:115200/9600/4800/2400bps
    Audio input interface Dual-channel 3.5mm linear input
    Audio compression format AAC .MP3.PCM
    network interface 100M network port (10 / 100BASE-TX) Support for the network VISCA control protocol
    networking protocol RTSP.RTMP.ONVIF.GB/T28181NDI
    Power interface HEC3800 Power Outlet (DC12V)
    Horizontal rotation -170° +170°
    Turn the pitch -30° +90°
    Horizontal control speed 0.1- 180°/second
    Subduction control speed 0.1-80°/second
    Preposition speed Horizontal: 180 / sec, pitch: 80 / ses
    Number of prepositions Users can set up to 255 preset bits (10 remote controls)
    Power adapter AC110V-AC220VDC12V/2A
    input voltage DC12V±10%
    input currenton 1A(maximum)
    power dissipation 12W( maximum)
    Storage temperature -10 +60
    Storage humidity 20%-95%
    working temperature -10 +50
    Working humidity 20% - 80%
    Dimensions 258mmX172mmX168mm
    Weight (approximately) 1.54kg
    service environment indoor
    Remote maintenance (network interface) Remote upgrade, remote reboot, remote reset

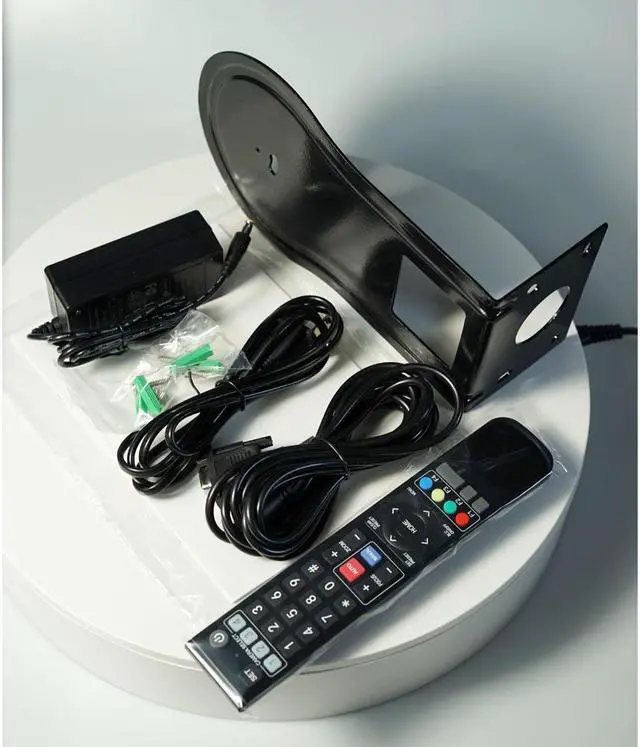

    The product contains 12V/2.5A power supply, RS232 control cable, remote control, instruction manual, warranty card
    ?Leading automatic focus technologyAdvanced autofocus algorithms enable the lens to complete autofocus, quickly, accurately and stably?Positioning is precise, smooth, and quiet control algorithm PTZ control Precision motor drive with advanced control algorithms, the operation is very quiet, smooth, smooth, can accurately and quickly move to the designated location, and conduct a large range of shooting. ?Real FULL HD HD imagesHigh-quality 1 / 2.8 -inch, 2.1 -megapixel effective HDCMOS sensor for 1920x1080 ultra-high-resolution premium images. The output frame frequency is up to 60 / 50 frames / second.

    While ensuring high definition, the focus is on meeting the demand for picture fluency??Low noise and high signal-to-noise ratioThe 2D and 3D noise reduction algorithm based on motion estimation are applied to adopt a new generation of low-noise sensors to effectively reduce the noise. ?20 x optical zoom, 12 x digital zoomFast, accurate and stable automatic focus lens, can reach 20 times the optical doubling. ?Multiformat video output in full HDRich and perfect interface. Both HDMI signals, SDI, and NDI interfaces are provided. The NDI interface transmission is more stable and anti-interference.

    Support for 1080P60/50/30/25/ 59.94 / 29.97, 1080I60/50/ 59.94, 720P60/50/30/25/ 59.94 / 29.97 and many other high-definition video standards. ?255 Position preset positionsThe 255 positions can be preset by the serial port, including horizontal, pitch, and doubling, and the preset data can be saved even when the camera is switched off. ?Multi-function remote controlEquipped with a simple operation remote control, in addition to basic setting and control of level, pitch, doubling, etc., can set relevant parameters of the camera through the remote control menu (SDI and HDMI interfaces can display only). ?Infrared remote control signal transmission functionIn addition to receiving its own special remote control signal, the infrared remote control signal of the user video conferencing terminal can also be uploaded to the video conferencing terminal via a serial port, replacing the infrared receiving port of the user video conferencing terminal, so that the user terminal can be placed in the background.

    ?Optional camera mirror image and flip function The structure supports camera inversion and can be changed through the OSD menu or sending serial port commands. (SDI and HDMI interfaces can display only) ? OSD Chinese and English menu function Rich OSD menu, with remote control of Chinese and English OSD menu. (SDI and HDMI interfaces can display only) ApplicationConference system, telemedicine, distance teaching, etc
