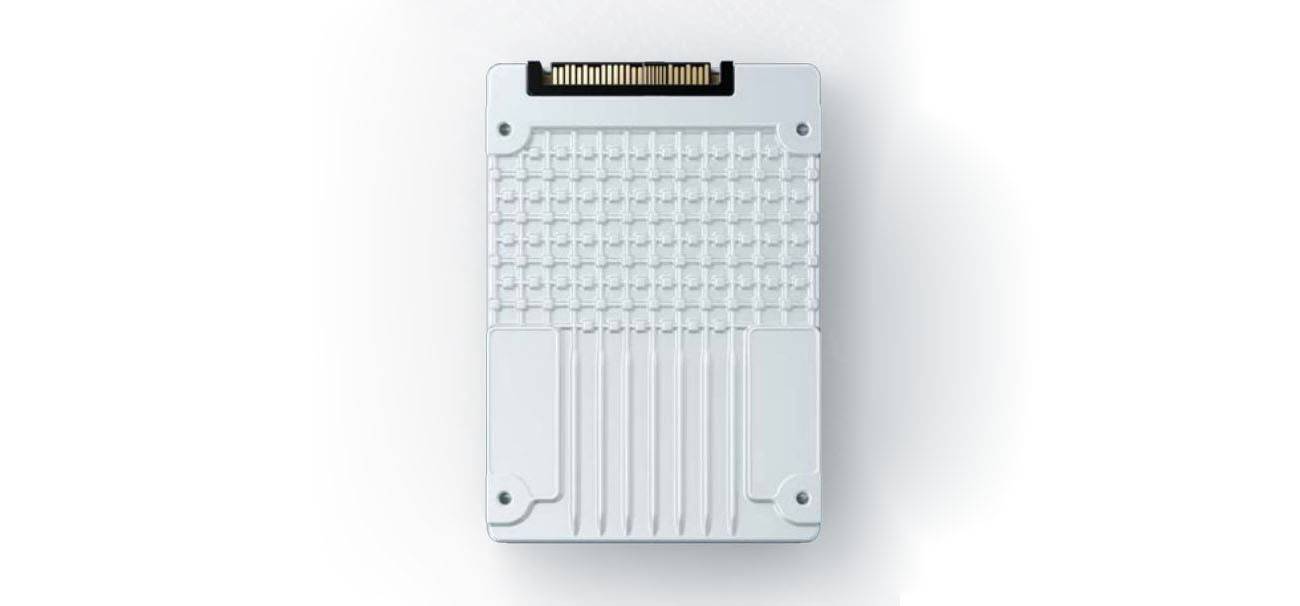

Solidigm™ D7-P5620 (formerly Intel®)
Enterprise Inspired. Performance Optimized.
Industry’s most advanced PCIe 4.0 SSDs
- Expanded range of form factors and capacities support broad range of configurations
- Common hardware and firmware streamline qualifications
- Elevated performance – up to 42% faster random reads and 43% better QoS – and advanced feature set bring value to a range of workloads1
Unlock Cloud and Enterprise Workloads while reducing TCO
- Accelerate top cloud workloads such as cloud compute and eCommerce up to 11%2
- Accelerate top enterprise workloads such as general purpose Servers up to 15%3 and databases up to 39%4
- Expanded capacity ranges enables up to 50% smaller storage footprint and 44% lower power consumption5
Change advanced feature set to: Relentless focus on the highest quality & reliability
- Up to 90% IOPS consistency and <0.3% performance variability over the life of the drive6
- Industry-leading quality and reliability designed-in7
- Validated and tested above and beyond industry standards and norms8
1. Elevated performance. Comparing product specs of the 3.84TB Solidigm D7-P5520 with 130us 4 9s latency and 1000K/200K Random R/W IOPS to 3.84TB Solidigm D7-P5510 with 230 us 4 9s latency and 700K/170K Random R/W IOPS. Test and System Configuration: Intel® Xeon® Gold 6254 CPU @ 3.10GHz 24.75MB 200W 18 cores, BIOS: SE5C620.86B.02.01.0011.032620200659, CPU Sockets: 2, RAM Capacity: 32GB, RAM Model: DDR4, RAM Stuffing: N/A, DIMM Slots Populated: Slot(s): 2, PCIe Attach: CPU (not PCH lane attach), Chipset: Intel® C610 Chipset , Switch/ReTimer Model/Vendor: Intel A2U44X25NVMEDK, NVMe Driver: Inbox, C-states: Disabled, Hyper Threading: Disabled, CPU Governor (through OS): Performance Mode, OS: CentOS 8.2.2004, Kernel: 5.4.49 FIO tool used for IO data.
2. Cloud Compute and eCommerce acceleration. Workload IO characteristics based on research of publicly available materials conducted by Solidigm. Comparing 7.68TB Solidigm D7-P5520, Samsung PM9A3 and Solidigm D7-P5510. Measured results of BW 1784, 1526, 1695 MB/s respectively and, latency 181 and, 232, 203 usec respectively. Transfer size of 8KB with a QD=32. Test and System Configuration: Intel® Server Board M50CYP2SB2U, Intel® ICE LAKE - P5 4GXRAV D, Number of CPUs: 2, Number of Cores: 36, DRAM: DDR4 – 64GB, OS: CentOS Linux release 7.5.1804, Kernel Version: 3.10.0-862.el7.x86_64. IO measured using FIO tool.
3. General Purpose Server acceleration. Workload IO characteristics based on research of publicly available materials conducted by Solidigm. Comparing 7.68TB Solidigm D7-P5520, Solidigm D7-P5510 and, Samsung PM9A3. Workload of 80/20 Sequential Read and Random read on two namespaces concurrently with 32KB transfer size and QD=32. Aggregate bandwidth measured of 6980, 6070,5606 MB/sec and latency of 295, 341, 370 usec for D7-P5520, D7-P5510, PM9A3 respectively. Test and System Configuration: Intel® Server Board S2600WFT, Intel® Xeon® Gold 6254, Speed: 3.1GHz, Number of CPUs: 2, Number of Cores: 36, DRAM: DDR4 – 32GB, OS: CentOS Linux release 7.5.1804, Kernel Version: 3.10.0-862.el7.x86_64, G4SAC Gen4 switch PCIe card with Microsemi switch. IO measured using FIO tool.
4. Database acceleration. Workload IO characteristics based on research of publicly available materials conducted by Solidigm. Comparing Solidigm D7-P5520, Samsung PM9A3 and Solidigm D7-P5510 measured BW of 2294,2257, 1750 MB/s and measured latency of 248, 412 ,292 usec respectively using 16KB transfer size, 70/30 R/W and QD=32. Source: Test and System Configuration: Intel® Server Board M50CYP2SB2U, Intel® ICE LAKE - P5 4GXRAVD, 2 CPUs, 36 Cores: 36, DRAM: DDR4 – 64GB, OS: CentOS Linux release 7.5.1804, Kernel Version: 3.10.0-862.el7.x86_64. IO measured using FIO tool.
5. Reduce Storage Footprint and Power Consumption when ISO for 368TB 2U Server. Comparing 48 x U.2 7.68TB Solidigm™ D7-P5510 and 24 x U.2 15.36TB Solidigm™ D7-P5520. Max average write power from product specifications.
6. IOPS consistency and variability. Refer to Solidigm™ D7-P5520 and D7-P5620 product spec for IOPS consistency. IOPS variability measured after adjusting SSD cycle limit to simulate end of life behavior. Results are estimated or simulated. Actual results may vary.
7. Quality and Reliability Designed-in with Enhanced PLI and Robust E2D data protection. Enhanced Power Loss Imminent – Designed-in a firmware check to validate that data was saved accurately upon power restoration. We believe others do not have this additional firmware check. Robust End-to-End Data Protection – Built-in redundancy where both ECC and CRC can be active at the same time. Protecting all critical storage arrays within the controller – instruction cache, data cache, indirection buffers and phy buffers Extending ECC coverage of SRAM to over 99% which we believe is among the highest in the industry. Bricking of the drive if unsure a silent error has happened.
8. UBER tested to 10X beyond JEDEC specification. Solidigm drives are tested to 1E-17 under full range of conditions and cycle counts throughout the life of the drive which is 10X higher than 1E-16 specified in JEDEC – Solid State Drive Requirements and Endurance Test Method (JESD218). https://www.jedec.org/standards-documents/focus/flash/solid-state-drives.
