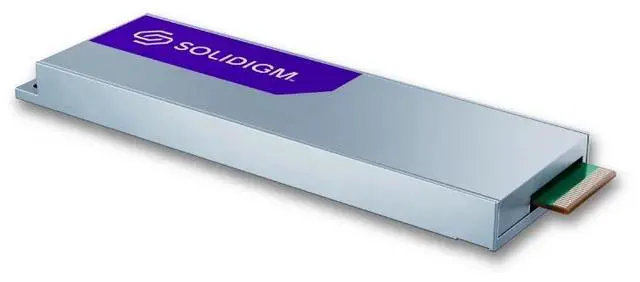

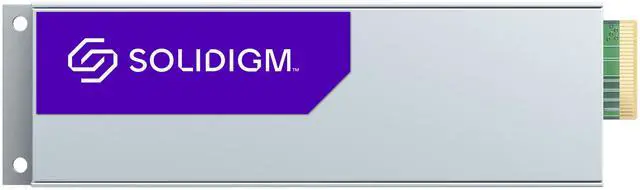

Solidigm Solid State Drive D7-P5520 Series (1.92TB, EDSFF S 9.5mm PCIe 4.0 x4, 3D4, TLC) Generic Opal Single Pack Data Center / Server / Internal SSD (SSDPFUKX019T1OZ)
- E1.S
- 3D NAND TLC
- PCI-Express 4.0 x4
- 1.92TB
+
+
Learn more about the Detailed Specifications
| Brand | Solidigm |
|---|---|
| Series | D7-P5520 |
| Part Number | AA002012B |
| Form Factor | E1.S |
|---|---|
| Capacity | 1.92TB |
| Memory Components | 3D NAND TLC |
| Interface | PCI-Express 4.0 x4 |
| Max Sequential Read | Up to 5300 MBps |
|---|---|
| Max Sequential Write | Up to 1900 MBps |
| 4KB Random Read | Up to 706,000 IOPS |
| 4KB Random Write | Up to 114,000 IOPS |
| Read Latency | 75µs |
| Write Latency | 15µs |
| Endurance | 3.5 PBW |
| MTBF | 2,000,000 hours |
| Power Consumption (Idle) | 5W |
|---|---|
| Power Consumption (Active) | 13W |
| Operating Temperature | 0°C ~ +70°C |
| Max Shock Resistance | 1,000 G (Max) at 0.5 msec |
| Max Vibration Resistance | Operating: 2.17 GRMS (5 - 700 Hz) Max Non-Operating: 3.13 GRMS (5 - 800 Hz) Max |
| Weight | 72g +/- 5g |
|---|
| First Listed on Newegg | February 03, 2026 |
|---|
