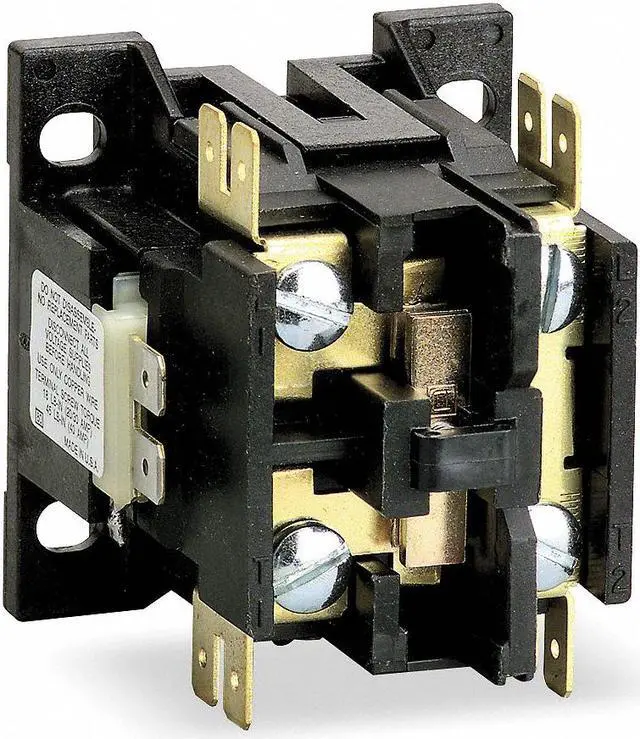

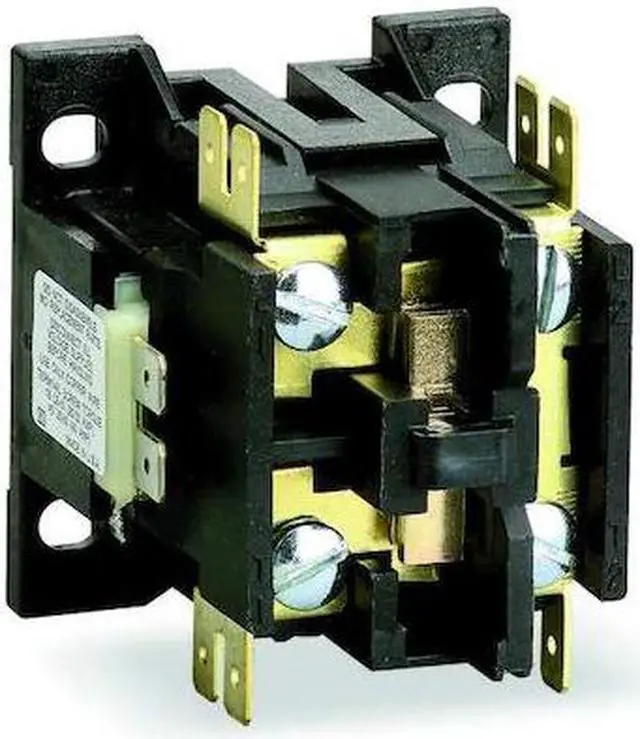

SQUARE D 8910DP31V09 Definite Purpose Magnetic Contactor, 208V-240V AC, 1 P,

The SQUARE D - 8910DP31V09 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. This tool operates by responding to electrical impulses, allowing or interrupting power supply based on the need. It's primarily used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing mode keeps current flow direction constant during operation.
• Coil Voltage: Operates within a voltage range of 208-240V AC which controls power flow in industrial and commercial applications.
• Electrical Connection: Equipped with binder head and quick connect terminals for easy attachment to an electrical circuit.
• Frequency: Rated for operation at 50/60 Hz frequency, suitable for various power systems.
• Full Load Amps-Inductive & Resistive: Rated for a maximum current of up to 30 A (inductive) and 40 A (resistive).
• Horsepower @ Single Phase -120V & 240V AC: Controls maximum power outputs up to 2 hp at single-phase,120-volt alternating current system and up to 3 hp at single-phase, 240-volt alternating current system respectively
• Pole Contact Composition: Contains one Normally Open contact that determines how electrical circuits are controlled during operation
• Rated Operational Voltage : Rated for controlling an electrical circuit at a maximum voltage level of up to 600 V AC
