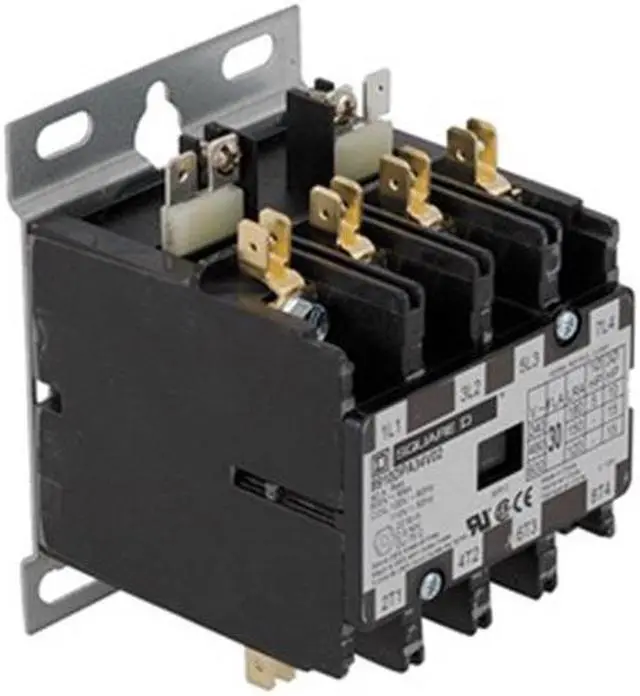

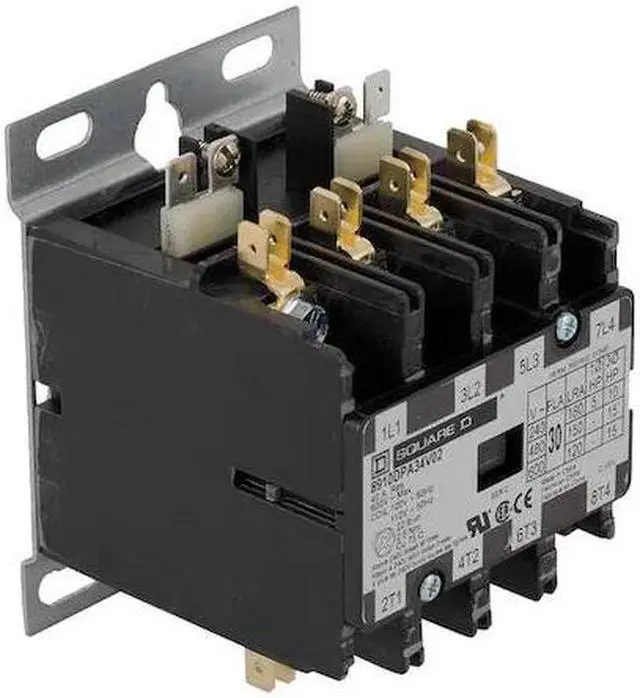

SQUARE D 8910DPA34V09 Definite Purpose Magnetic Contactor, 208V-240V AC, 4 P,

The SQUARE D - 8910DPA34V09 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing this indicates that the current flow direction remains constant during operation.
• Coil Voltage: The coil voltage range required for effective engagement or disengagement of its electrical circuit is 208-240V AC.
• Control Circuit Voltage: Rated for operation within the specified voltage ranges of 208 to 240 V AC at either 60 Hz or 220 V AC at 50 Hz frequency.
• Electrical Connection: Quick connect terminals and Binder head are provided for easy attachment to an electrical circuit.
• Full Load Amps-Inductive & Resistive: Compatible with maximum currents of up to 30 A (inductive loads) and up to 40 A (resistive loads), as per manufacturer's specifications.
• Horsepower @ Single Phase & Three Phase - Specified for use with devices requiring a range of horsepower, from up to a maximum of five horsepower in single phase applications, and fifteen horsepower in three-phase applications, as per manufacturer's guidelines.
• Pole Contact Composition: Comprises four Normally Open contacts which determines how electrical circuits are controlled during operation
