SQUARE D 8910DPA62V09 Definite Purpose Magnetic Contactor, 208V-240V AC, 2 P,

The SQUARE D - 8910DPA62V09 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing The contactor functions with a constant current flow direction.
• Coil Voltage: Operates within a voltage range of 208-240V AC which controls power flow in industrial and commercial applications.
• Depth: Measures 3.67 inches from front to back indicating its extension into mounting surface or enclosure.
• Electrical Connection: Quick connect terminals; Box lugs These are methods by which this contactor can be attached to an electrical circuit.
• Frequency: Rated for operation at frequencies of 50/60 Hz, suitable for various power systems.
• Full Load Amps-Inductive & Resistive: Rated for a maximum current capacity of up to 60 A (inductive) and up to 75 A (resistive), within specified conditions.
• Horsepower @ Single Phase - Suitable for use with motors having a horsepower range from 5 hp at single phase -120V AC up to 10 hp at single phase -240V AC, under normal operating conditions.

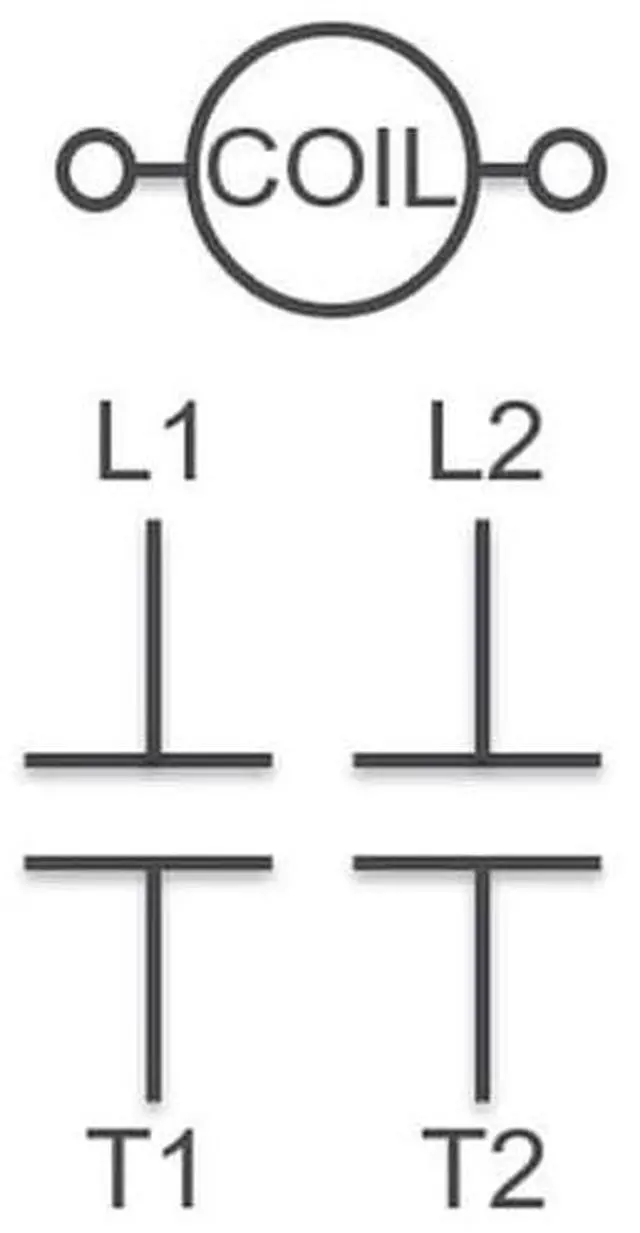

• Pole Contact Composition: Contains two Normally Open contacts that determine how electrical circuits are controlled during operation
