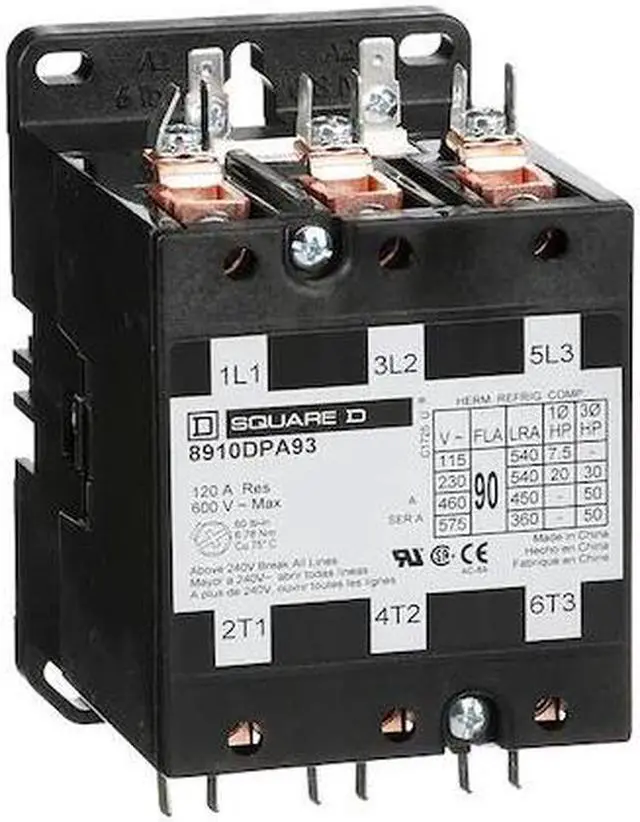

SQUARE D 8910DPA93V09 Definite Purpose Magnetic Contactor, 208V-240V AC, 3 P,

The SQUARE D - 8910DPA93V09 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.

• Action: Non-Reversing The contactor functions with a constant current flow direction.
• Coil Voltage: Operates within a voltage range of 208-240V AC which controls power flow in industrial and commercial applications.
• Electrical Connection: Quick connect terminals; Box lugs These are methods by which the contactor is attached to an electrical circuit.
• Full Load Amps-Inductive/Resistive: Rated for operation with inductive loads up to 90A and resistive loads up to 120A.
• Horsepower Ratings: Compatible with controlling horsepower within the specified ranges, dependent on whether it's a single-phase or three-phase power supply ranging from 7.5 hp at single phase -120V AC up to 50 hp at three phase -600V AC.
• Number of Poles: Three The number of circuits that can be switched simultaneously by this contactor
• Product Certifications: UL Recognized; CSA Product certifications are acknowledgements from official bodies; usage should still adhere strictly to provided guidelines and specifications.
