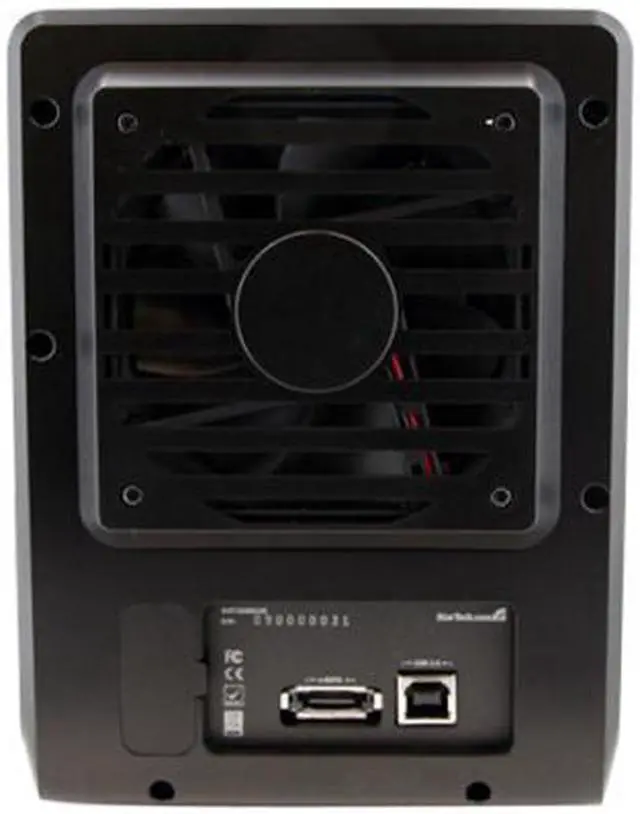

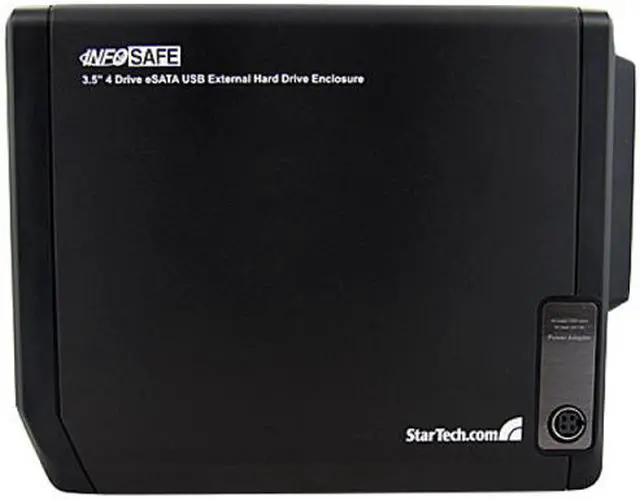

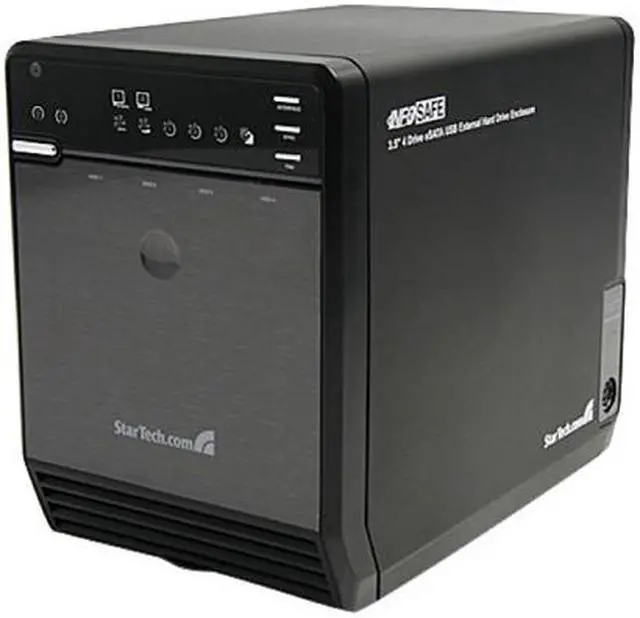

StarTech.com SAT3540U2E 4 Drive eSATA USB Multi Bay External Hard Drive Enclosure


Learn more about the STARTECH SAT3540U2E

Brand StarTech.com
Model SAT3540U2E
Specifications Note: Some operating modes of the enclosure require an eSATA host port to provide Port Multiplier (PM) support. Without PM support, only one of the drives will be accessible.
Chipset ID: EXAR - XRS10L240
Color: Black
Compatible Drive Types (Type and Rate): SATA
Drive Connectors: SATA Data & Power Combo (7+15 pin) Receptacle
Drive Installation: Removable
Drive Size: 3.5in
Enclosure Type: Aluminum
Fan Bearing Type: Ball Bearing
Fan RPM: Low - 1200rpm
Med - 1800rpm
High - 2500rpm
Fan(s): Yes
Fans: 80 mm
Host Connectors: eSATA (7 pin ; Data) Plug
USB B (4 pin) Female
Humidity: 90%RH
Included in Package: eSATA Cable
Four drive HDD enclosure
Power Cords (NA/UK/EU)
Screw driver and screw kit
Universal Power Adapter
USB Cable
Input Voltage: 115 ~ 230 AC
Interface: USB 2.0 & eSATA
LED Indicators: Fan mode indicators
Fan speed indicators
Interface indicators
Power indicator (Blue - On, Orange - Standby, Off - Off)
Sync mode indicator (Blue - 6 second delay after disconnect to turn off, Orange - Standby right after disconnect, Off - Do nothing on disconnect)
Max Drive Capacity: Currently tested with up to 4TB 5400 RPM hard drives per bay (16TB total)
Number of Drives: 4

OS Compatibility: Windows® 8/8.1 (32/64bit), 7 (32/64bit), Server 2008 (32/64), Vista(32/64), Server 2003 (32/64) XP(32/64), 2000
Apple® Mavericks (10.9) OSX Mountain Lion (10.8), Lion (10.7), Snow Leopard (10.6)
Output Current: 5A
Output Voltage: 12 DC
Power Adapter Included: Yes
Product Height: 170 mm [6.7 in]
Product Length: 215 mm [8.5 in]
Product Weight: 1.8 kg [4 lb]
Product Width: 126 mm [5 in]
Shipping (Package) Weight: 3.1 kg [6.9 lb]

Type and Rate: SATA II (3 Gbps)
USB 2.0 - 480 Mbit/s
UASP Support: No
Features •Fan control button to enable manual control of the fan and switch between the three fan speeds
•Includes one USB and one eSATA cable, and power adapter
•Internal thermal sensor for fan control with three levels;
Low - <45°C 1200rpm
Med - 45°C ~ 54°C 1800rpm
High - >55°C 2500rpm
•Internal three speed 80mm fan with automatic or manual controls
•Manual interface control button to switch between USB 2.0 and eSATA
•Multiple LED indicators to provide fan information, mode information, hard drive activity, and connection interface in use
•No software required
•Plug-and-Play and Hot swap supported with USB 2.0 and eSATA

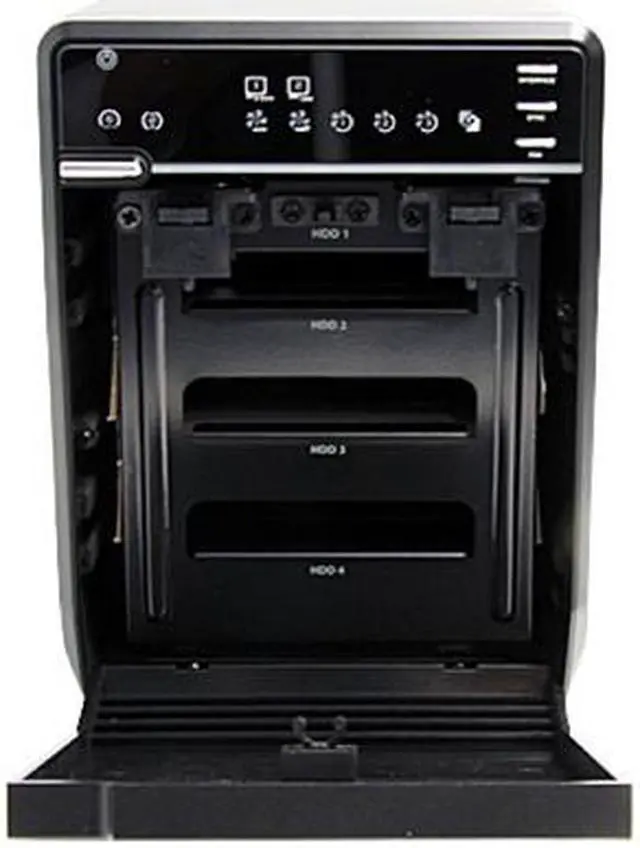

•Removable front cover for easy access to hard drives
•Rugged aluminum chassis
•Supports four 3.5in hard drives up-to 2.0 TB each in size
•Windows, Mac, and Linux compatible
Additional Information
Date First Available December 03, 2009
