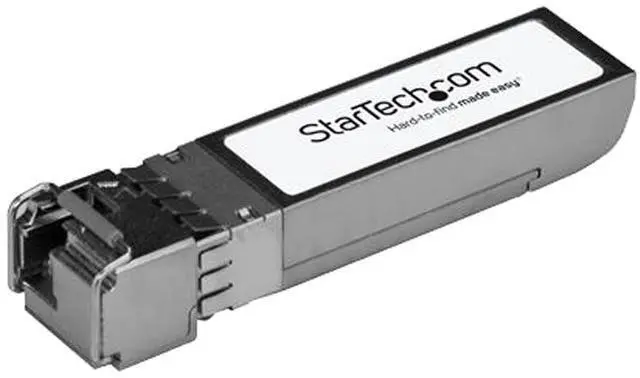

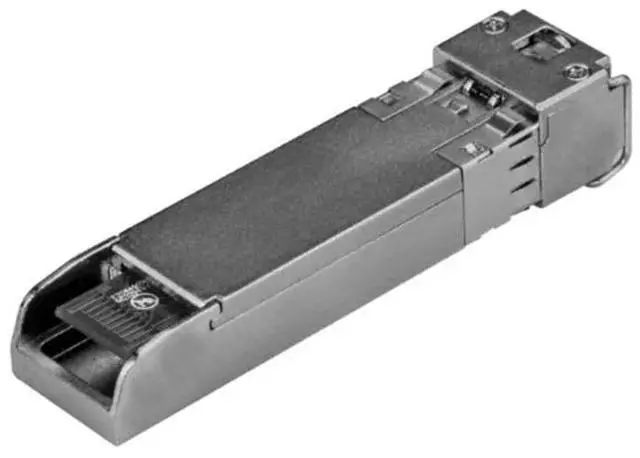

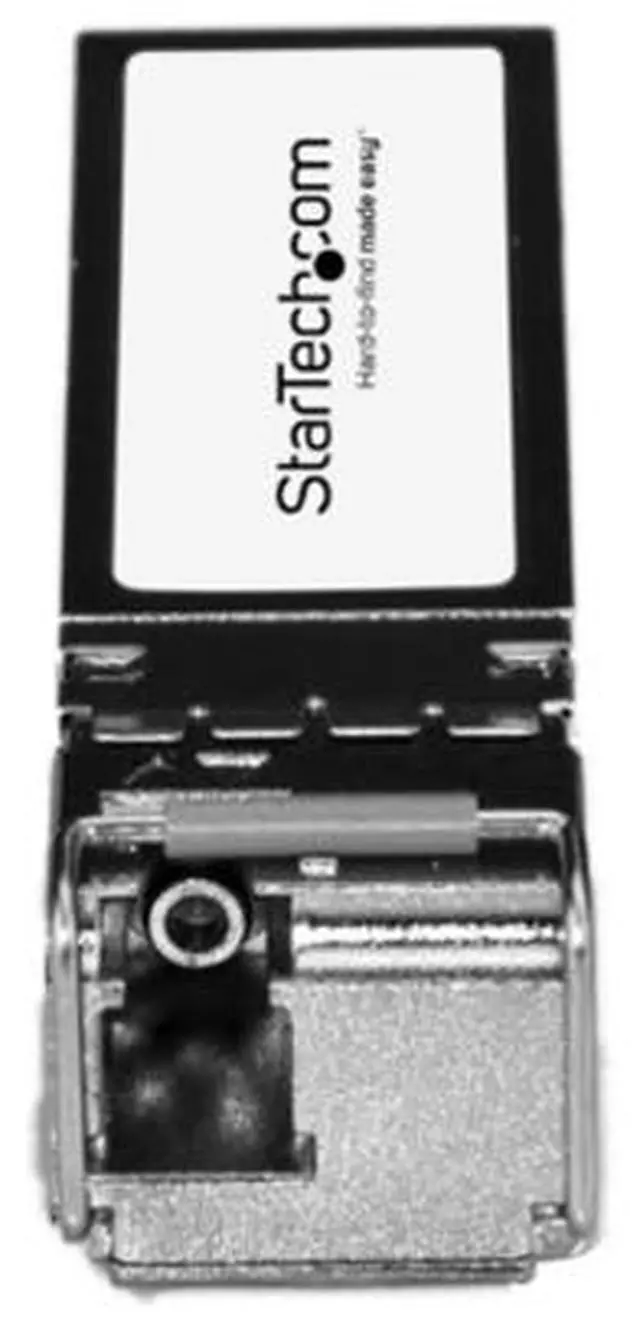

StarTech.com Cisco SFP-10G-BXD-I Compatible SFP+ Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Single Mode Fiber (SMF) Transceiver
- 100% CISCO SFP-10G-BXD-I COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with Cisco switches like ASR9000, ASR1000, NCS5500, C3850, NCS540 and others
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 10GBASE-BX
- 10Gbps
- 10G Bi-Directional Downstream
- Single Mode (SMF)
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: 15 days
- Return for replacement within: 15 days
- This item is covered by Newegg.com's 15-Day Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-265-1844
- Support Email: support@startech.com
- Support Website
- View other products from STARTECH
LOADING...
The StarTech.com SFP-10G-BXD-I-ST is a Cisco-compatible 10GBASE-BX SFP+ transceiver for network teams connecting compatible switches or routers over single-mode fiber, carrying 10 GbE up to 10 km on one fiber strand when paired with the matching upstream module.
Recommended For
- Network teams extending a 10GbE link between buildings or sites over existing single-mode fiber when only one fiber strand is available; this downstream module is intended to pair with a complementary upstream BiDi optic.
- IT teams upgrading a Cisco-compatible switch or router link to 10GbE while reusing a single-strand single-mode fiber path, rather than installing a second fiber strand.
- Operators adding a 10GbE point-to-point connection on a single-mode fiber run up to the optic’s rated 10 km reach, provided the far-end optic uses the complementary wavelength direction.
Real-World Use Scenarios
- When two compatible switches or routers need a 10 GbE link over a single strand of single-mode fiber, use this downstream module with a matching BXU module at the other end; the pair carries traffic in both directions over that strand.
- If a site has limited fiber strands available, this BiDi link can use one strand for a 10 GbE connection instead of requiring a separate transmit and receive strand, leaving other strands available for other links.
- To connect network equipment in separate rooms or buildings over an existing single-mode fiber route, use a matched BXD/BXU pair; the module is specified for links up to 10 km, subject to the route and equipment being compatible.
- When upgrading a link to 10 GbE without installing another fiber strand, this module can reuse an existing single-mode fiber run, provided both devices support the optics and the far end has the matching upstream module.
- During maintenance or replacement on a compatible switch or router, the hot-swappable module can be changed without removing the device from service; the effect on traffic depends on the network setup and redundancy.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | 10 GbE single-mode BiDi fiber links over one strand, with compatible Cisco equipment and a matching SFP-10G-BXU-I-ST transceiver |
| Optical And Network Specifications | 10 Gbps 10GBASE-BX transceiver with 1330 nm transmit and 1270 nm receive wavelengths, LC port, and a maximum range of 10 km (6.2 mi) over single-mode fiber |
| Compatibility | Cisco SFP-10G-BXD-I compatible; designed for compatible Cisco switches and routers and pairs with StarTech.com SFP-10G-BXU-I-ST |
| Model And Brand | StarTech.com SFP-10G-BXD-I-ST |
| Physical Specifications | 24 g; 0.55 L × 2.3 W × 0.5 H inches; black, with stainless steel, aluminum, brass, and zinc materials |
| Power | 1.3 W |
| Included Components | Cable |
