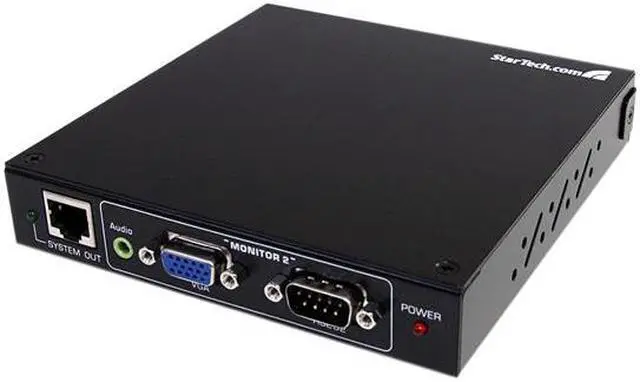

Main image of StarTech.com VGA over Cat5 Digital Signage Receiver with RS232 & Audio DSRXL

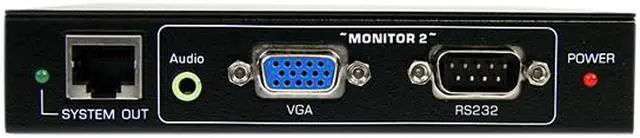

Alt view image 2 of 4 - StarTech.com VGA over Cat5 Digital Signage Receiver with RS232 & Audio DSRXL

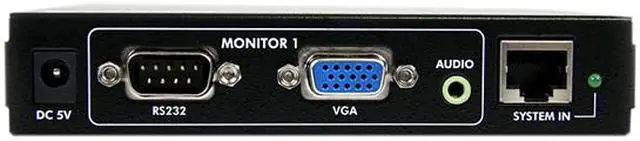

Alt view image 3 of 4 - StarTech.com VGA over Cat5 Digital Signage Receiver with RS232 & Audio DSRXL

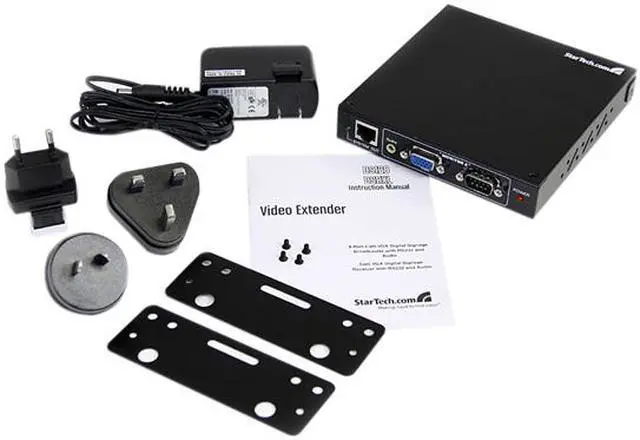

Alt view image 4 of 4 - StarTech.com VGA over Cat5 Digital Signage Receiver with RS232 & Audio DSRXL

Shop All STARTECH Products

StarTech.com VGA over Cat5 Digital Signage Receiver with RS232 & Audio DSRXL

Be the first to review this product...

Non Wall Plate Extender
Max Distance: 300 m / 950 ft
1600x1200

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	StarTech.com
Model	DSRXL

Details
Extender & Repeater Type	Non Wall Plate Extender

Performance
Distance	Max Distance: 300 m / 950 ft
Resolution Support	Supported Resolutions 1600x1200 @ 100m(330ft) 1280x1024 @ 300m(950ft) Maximum Analog Resolutions 1600x1200
Video	Wide Screen Supported: Yes
Audio	Two channel stereo audio supported

Connection
Serial Interface	2 x RS232
VGA	2 x VGA
Other Connector	2 - 3.5 mm Mini-Jack (3 Position) Female 2 - RJ-45 Female

Compatibility
System Requirements	Up to 5 receiver units can be daisy-chained from the broadcaster unit extending to a maximum distance of 300m

Power
Power Supply	Power Adapter Included: Yes Output Voltage: 5 DC Output Current: 2A Center Tip Polarity: Positive

Specification
Specification	Maximum Cable Length: 32.8 ft [10 m] Color: Black Enclosure Type: Steel

Feature
Feature	Receiver supports VGA, audio, and RS-232 serial signals when used with DS Series DS128 8 Port Transmitter DSNet Manager JAVA based software puts you in control. Software allows access to each receiver to configure system, image quality, power on/off receivers, and turn video or audio off. Supports resolutions up to 1600x1200 at 100m / 300ft distance. Ability to go up to a total maximum 300m / 900ft when daisy chaining a maximum of five DSRXL receivers. Easily scalable system allows up to 80 displays to be connected using the DS Series eight port transmitter and DSRXL receivers.

Dimensions & Weight
Dimensions	5.3"L x 5.2"W x 1"H
Weight	526g

Package Contents
Package Content	1 - Digital Signage Receiver 2 - Mounting Brackets w/ Screws 1 - Universal Power Adapter (NA/UK/EU/AUS) 1 - Instruction Manual
