StarTech HDMI / DVI Video Test Pattern Signal Generator HDMIPATTERN2

Be the first to review this product...

8 built-in video test patterns
Max. resolutions up to 1080p @ 60Hz
High Speed HDMI®, HDCP 1.2 compliant
Test color, linear, and HDCP functionality

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The HDMIPATTERN2 HDMI/DVI Portable Video Signal Generator lets you quickly test DVI-D (digital) and HDMI-capable displays. It is an easy way to diagnose and troubleshoot digital video calibration issues. Featuring eight built-in video test patterns – including both HD video test patterns and standard definition patterns – the HDMIPATTERN2 allows you to quickly analyze color performance, linearity, and HDCP issues. It outputs an audio test tone to ensure your video and audio are performing optimally for HDMI throughput. What’s more, the device can be powered by either the included AC adapter or a 9V battery, offering a conveniently portable solution for mobile installers and technicians.

A Cost-Effective Way to Test HDMI or DVI-D DisplaysThe HDMIPATTERN2 allows you to quickly test an HDMI or DVI-D display (needs to use an HDMI to DVI cable) by only using an HDMI-to-DVI cable (not included). It is an ideal solution for AV install experts/integrators or digital signage installers looking to save time and solve problems with an HDTV display.
Portable DesignThe hand-held design and optional 9V battery ensure amazing portability.

Model
Brand	StarTech.com
Model	HDMIPATTERN2

Performance
Resolution Support	1080p (60Hz - 12 bit), 1080p (60Hz - 10 bit), 1080p (60Hz - 8 bit), 1080i (60Hz - 8 bit), 720p (60Hz - 10 bit), 720p (60Hz - 8 bit), and 480p (60Hz - 8 bit)

Connection

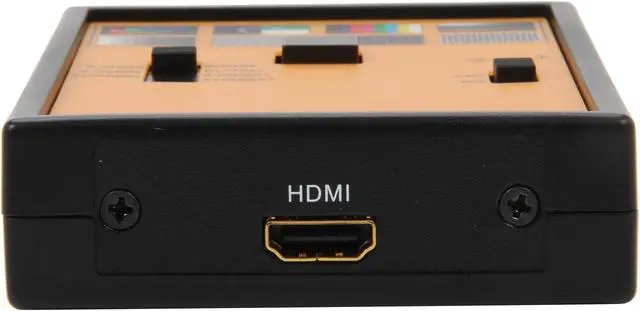

HDMI	1 - HDMI (19 pin) Female

Indicater
LED Indicator	1 - HDCP Error indicator (On indicates HDCP verification fail) 1 - Power indicator (Solid - power on, Flashing - low battery)

Power
Power Supply	Power Adapter Included: Yes Input Voltage: 115 AC Input Current: 15mA Output Voltage: 9 DC Output Current: 0.6A Center Tip Polarity: Positive Plug Type: M

Specification
Specification	HDCP Test Pattern: Yes Video Test Patterns: 8 Enclosure Type: Plastic

Feature
Feature	8 built-in video test patterns Supports resolutions up to 1080p @ 60Hz High Speed HDMI, HDCP 1.2 compliant Test color, linear, and HDCP functionality Easy to use resolution selector switch and pattern selection button Powered using the supplied AC adapter or a 9V battery Applications - Can be used with both HDMI and DVI displays using an HDMI to DVI cable - Save time and money by quickly determining what may need to be corrected with an HDTV - Use to test and maintain studio equipment such as HDTV displays, cabling, and recording equipment - Great for Digital Signage installers, TV engineers or technicians looking to test and calibrate a DTV display - As an educational tool, teachers can use this device to train their students about the latest DTV quality test technologies - Use in a retail setting to show side-by-side comparisons of quality - Perfect for an installer, integrator, or A/V enthusiast calibrating to get them most out of equipment

Dimensions & Weight
Dimensions	5.2"L x 3.4"W x 1.1"H
Weight	150g

Package Contents

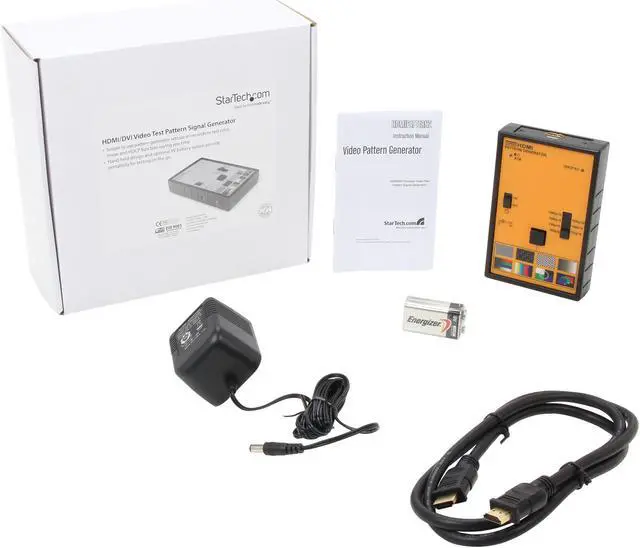

Package Content	1 x HDMI Test Pattern Generator 1 x 9V Battery 1 x HDMI Cable 1 x Power Adapter 1 x Instruction Manual

Additional Information
First Listed on Newegg	May 09, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
