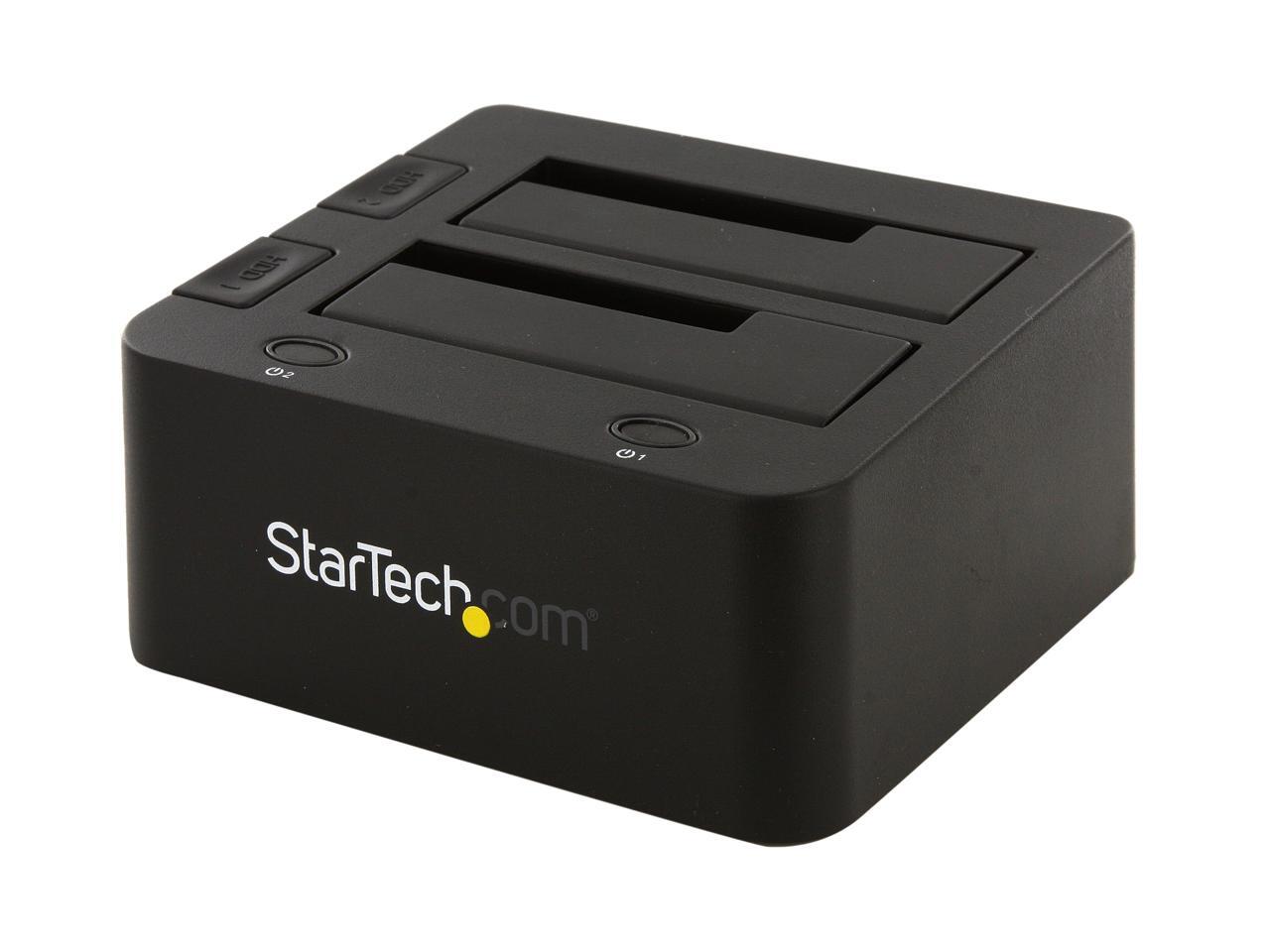

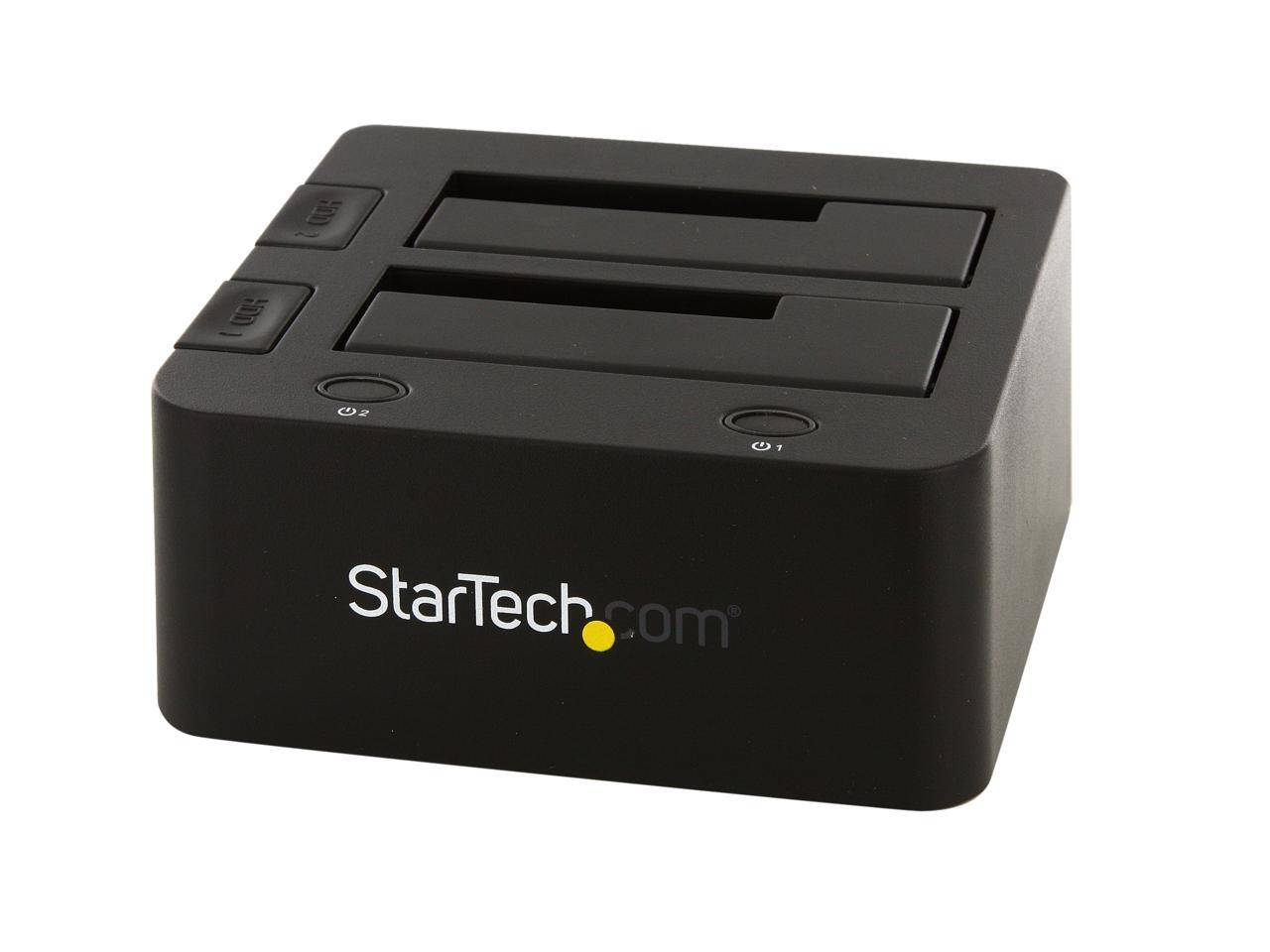

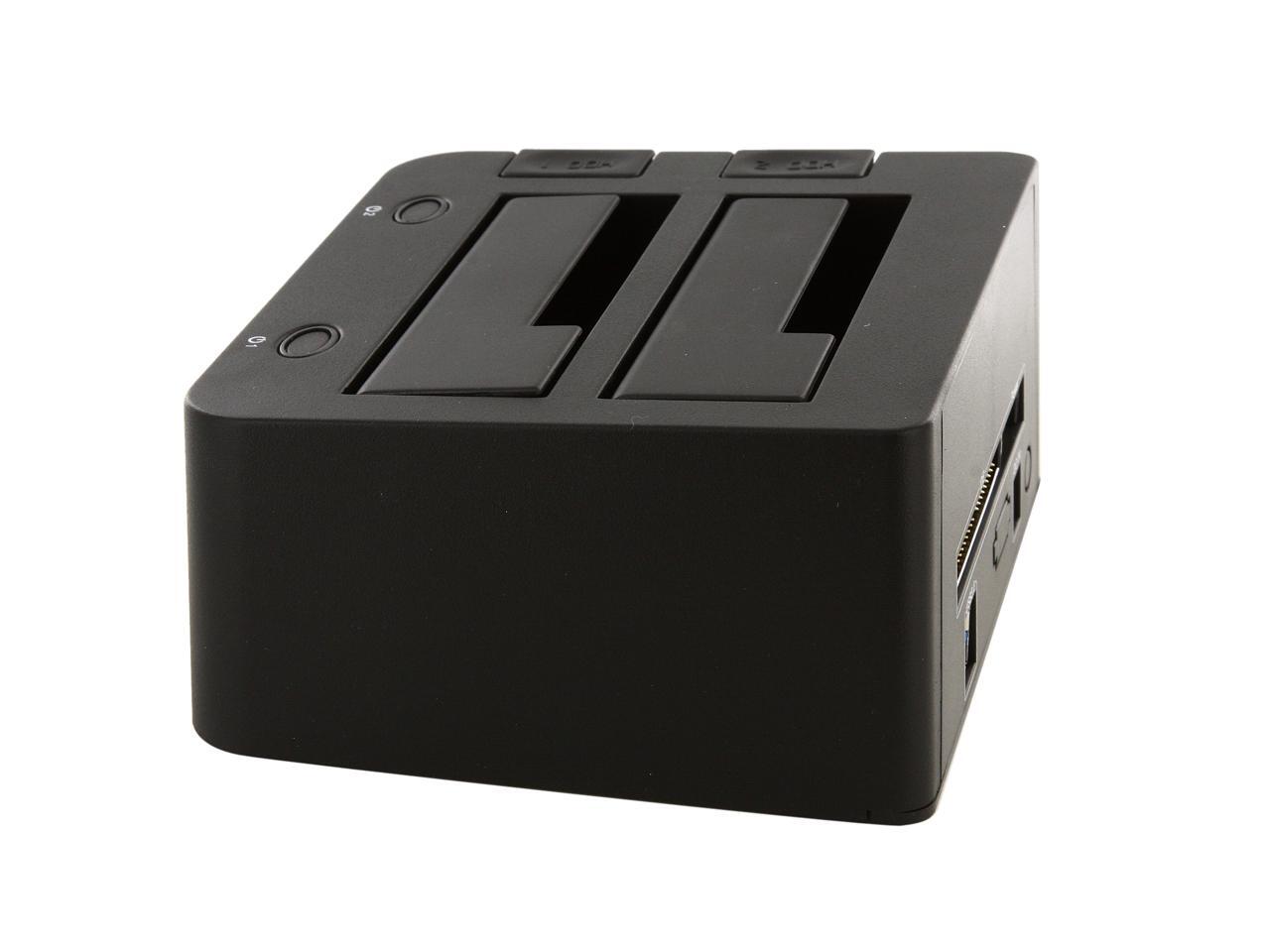

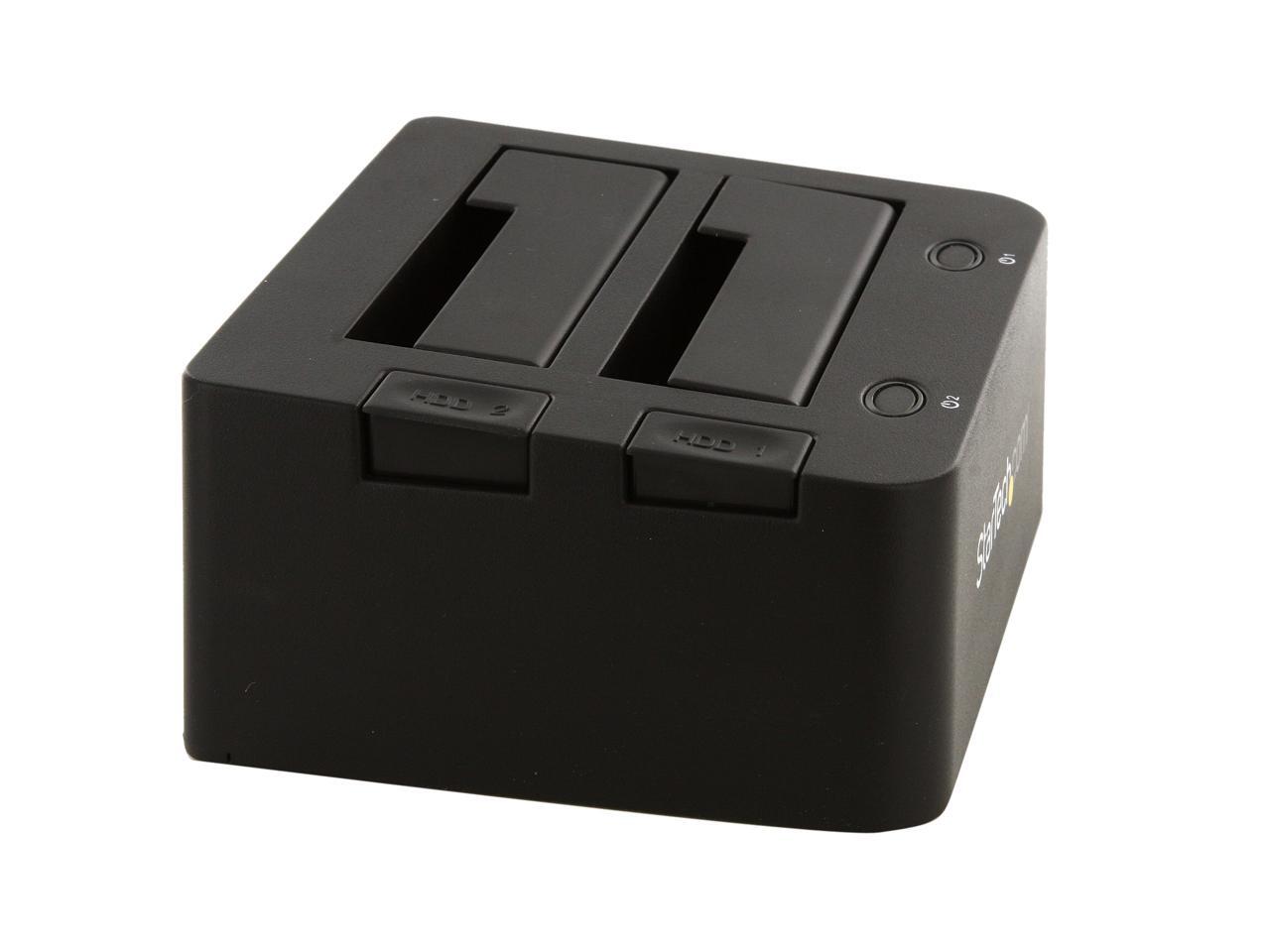

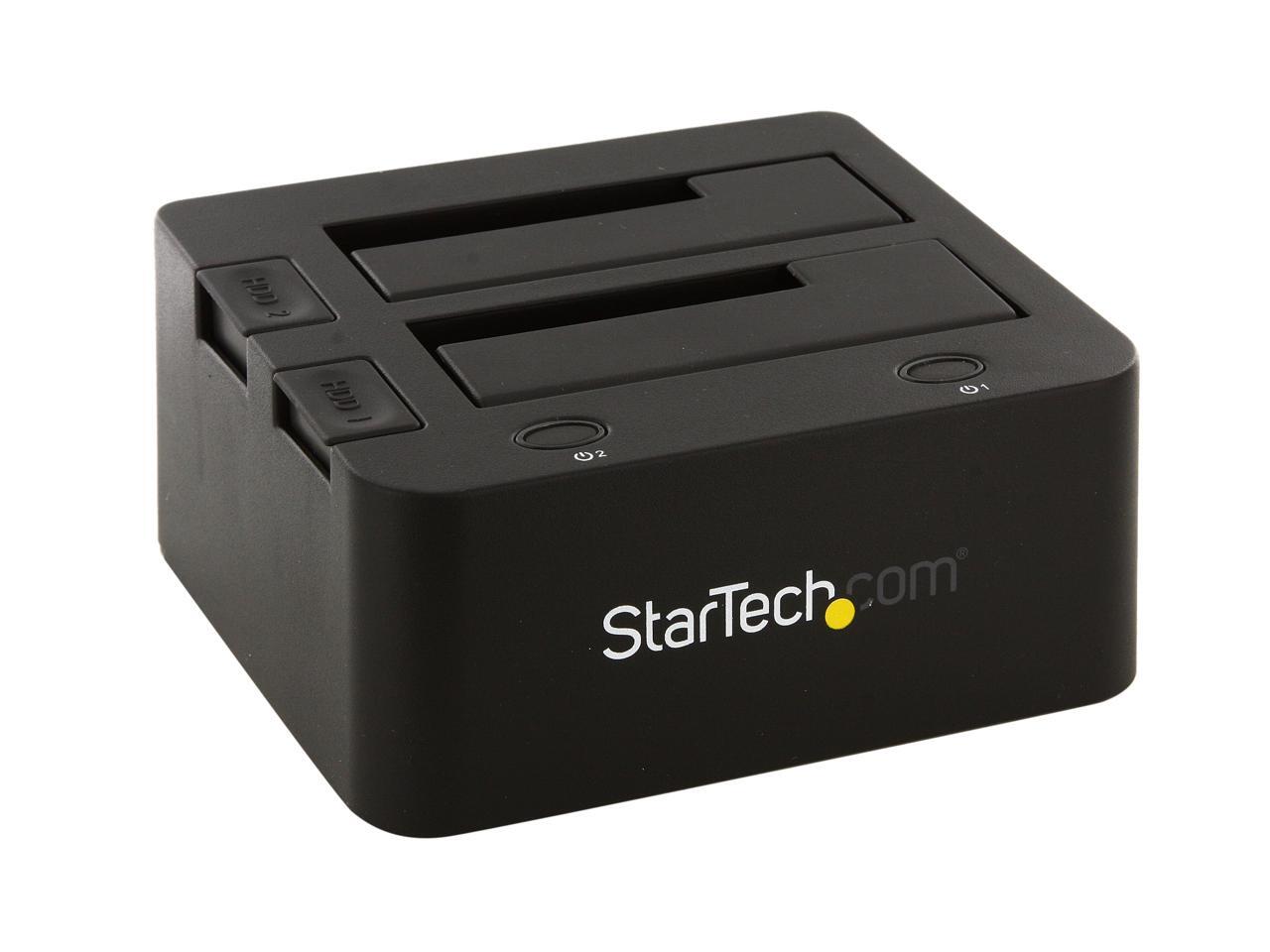

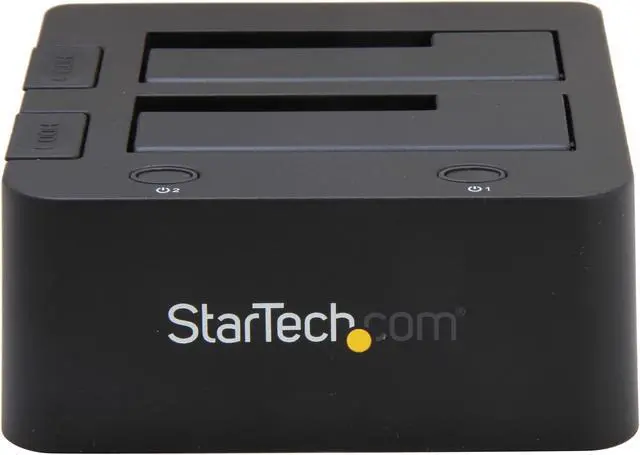

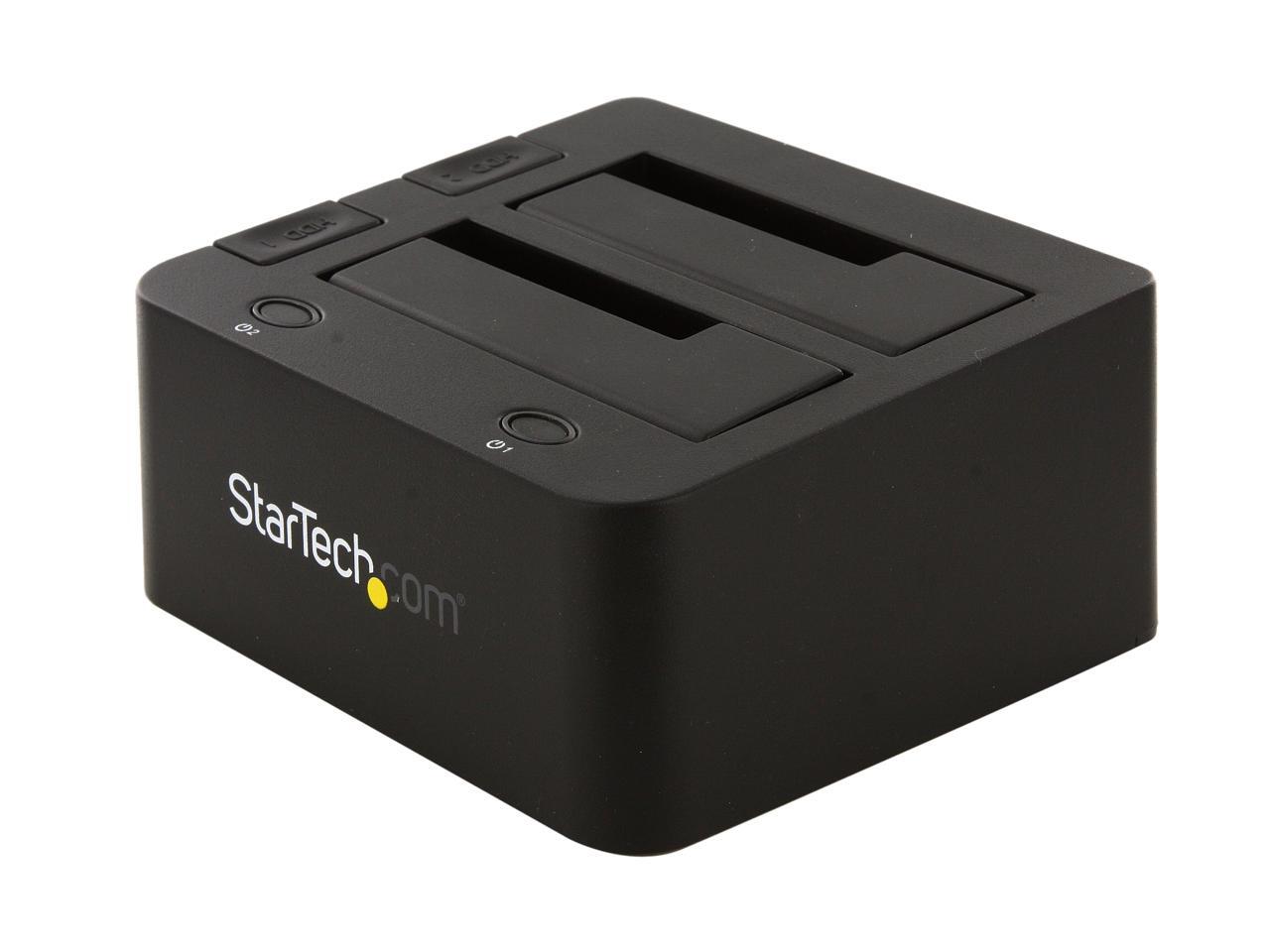

StarTech UNIDOCK3U USB 3.0 to SATA IDE HDD Docking Station for 2.5in or 3.5in Hard Drive
An Alternative Item Is Available:
- Push button drive ejection
- Compact form factor
- Plug-and-Play / Hot-Swapable
- Slot-loading design
- LED indicators
- Compatible with PATA (IDE) 66/100/133 MBps hard drives
Overview
Specs
Reviews (22)
Any questions? Our AI beta will help you find out quickly.
Try me now
USB 3.0-to-SATA IDE Hard Disk Drive Docking Station for 2.5in. or 3.5in. Drives

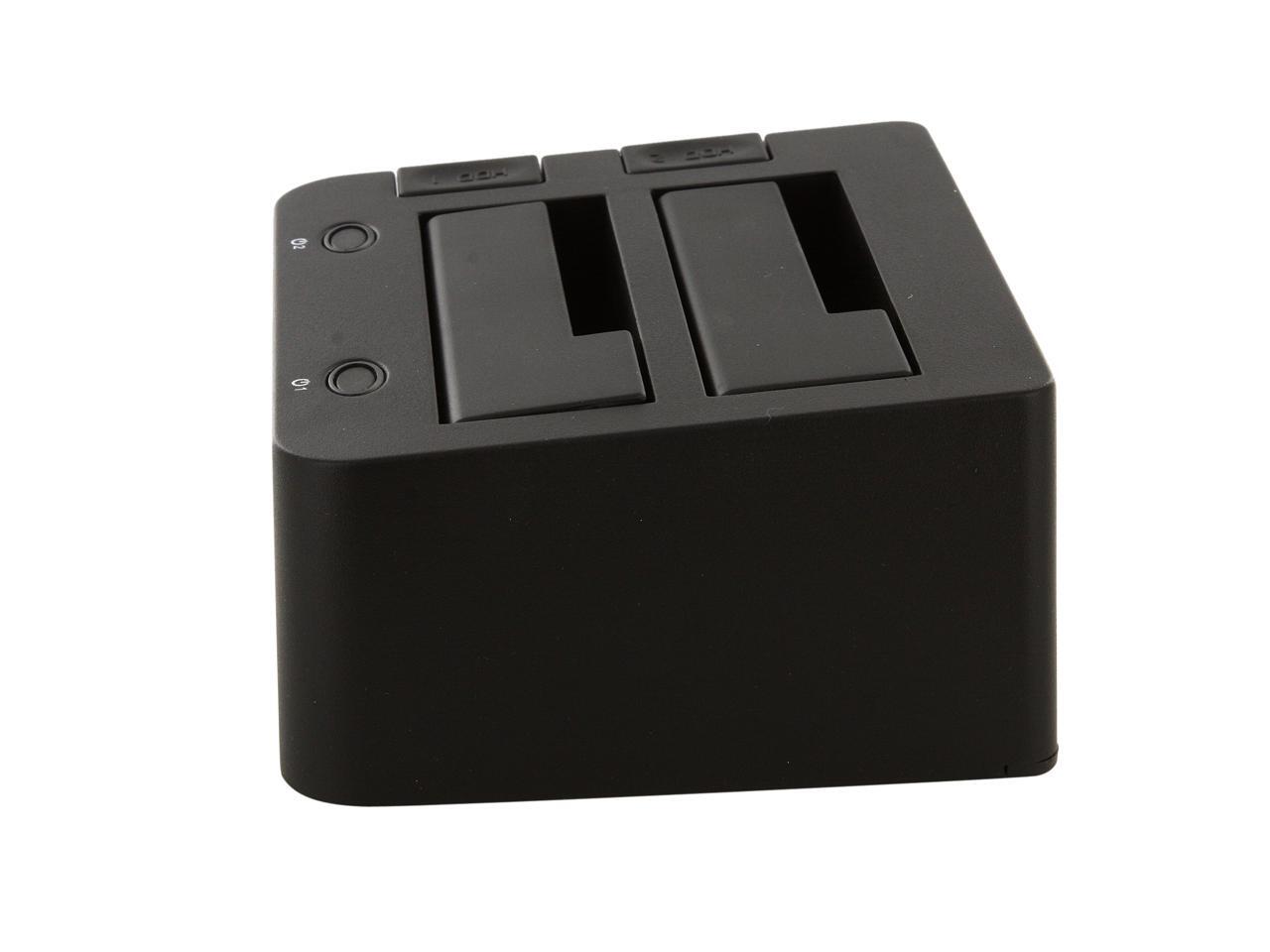

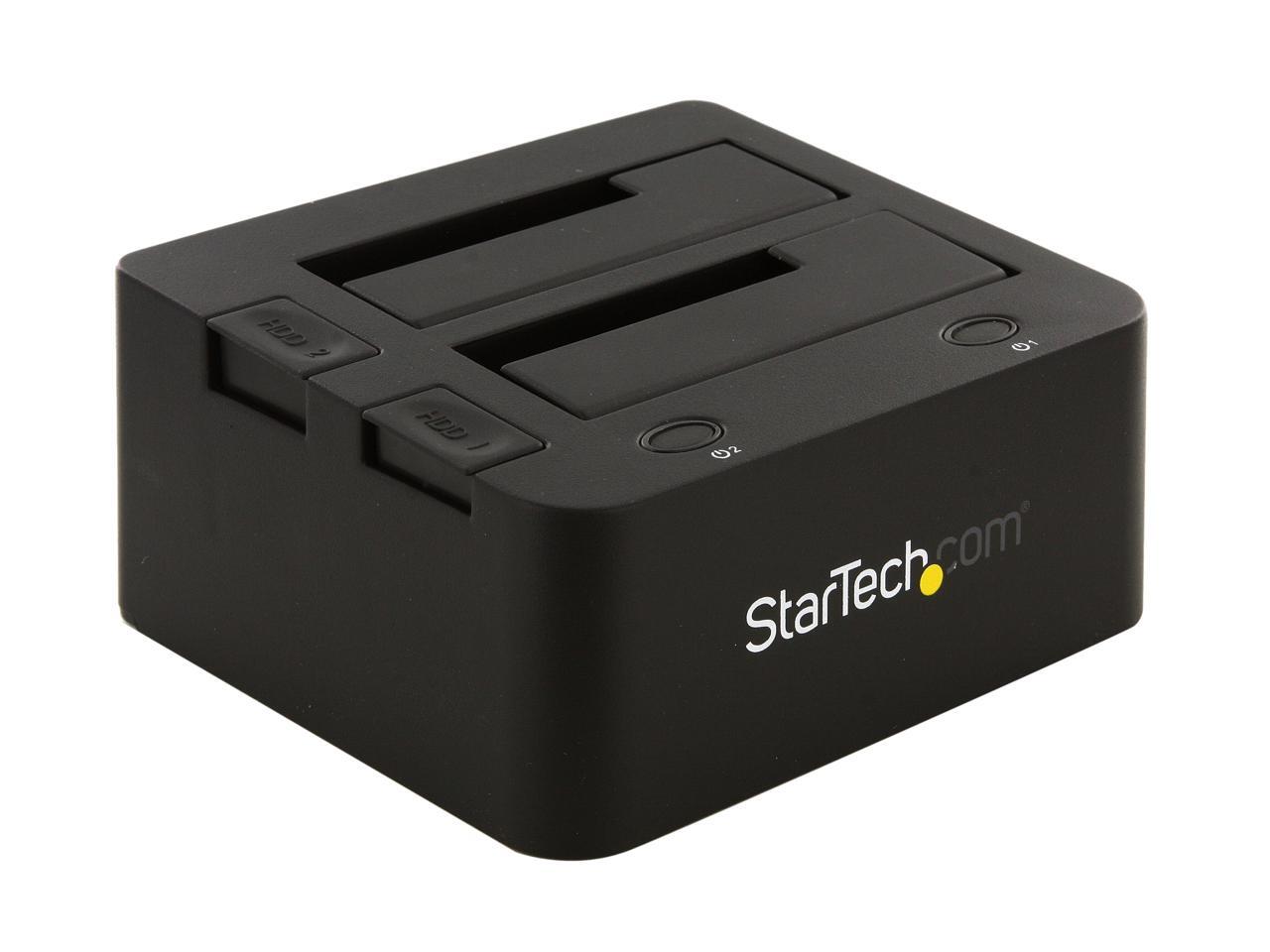

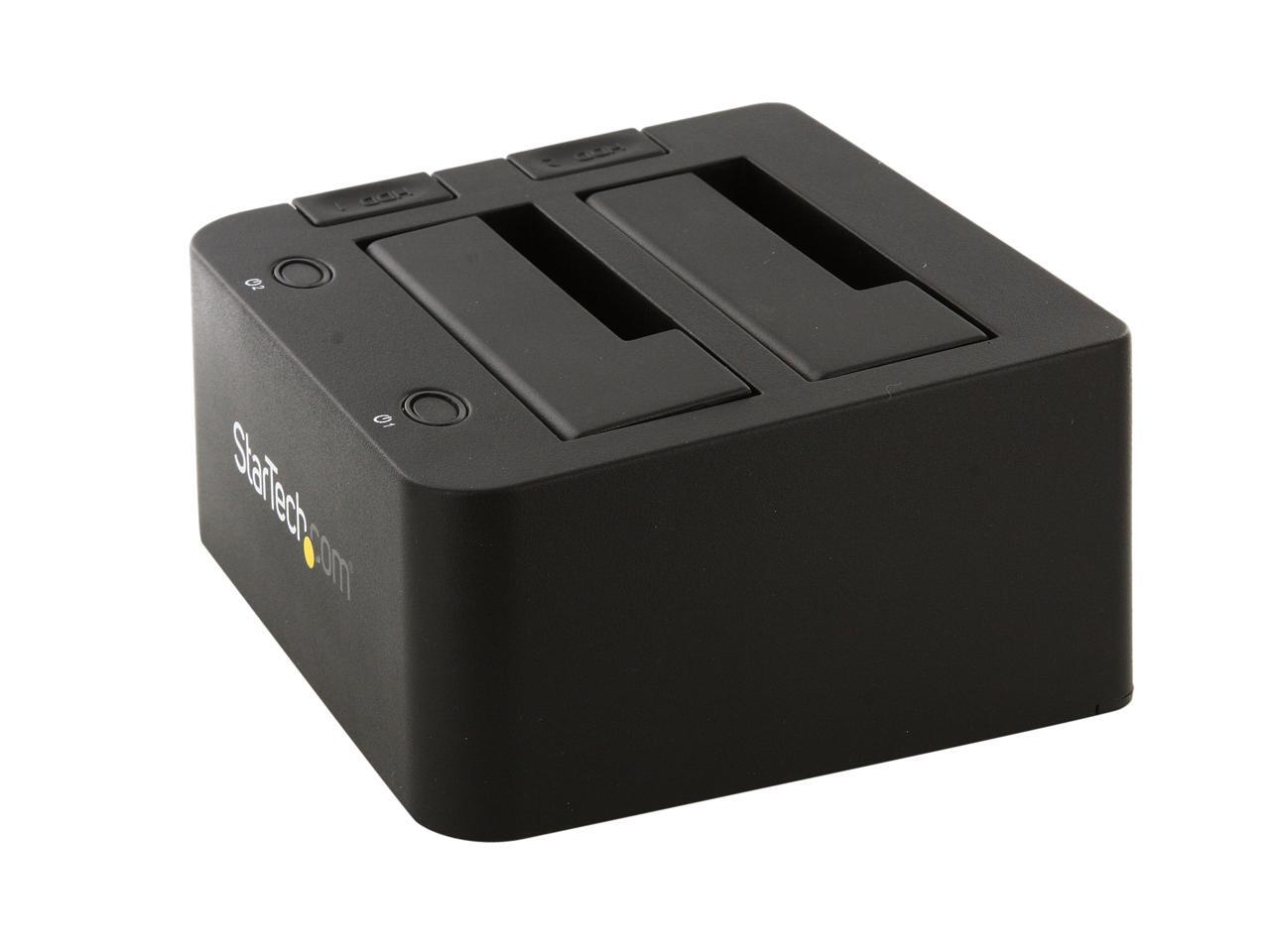

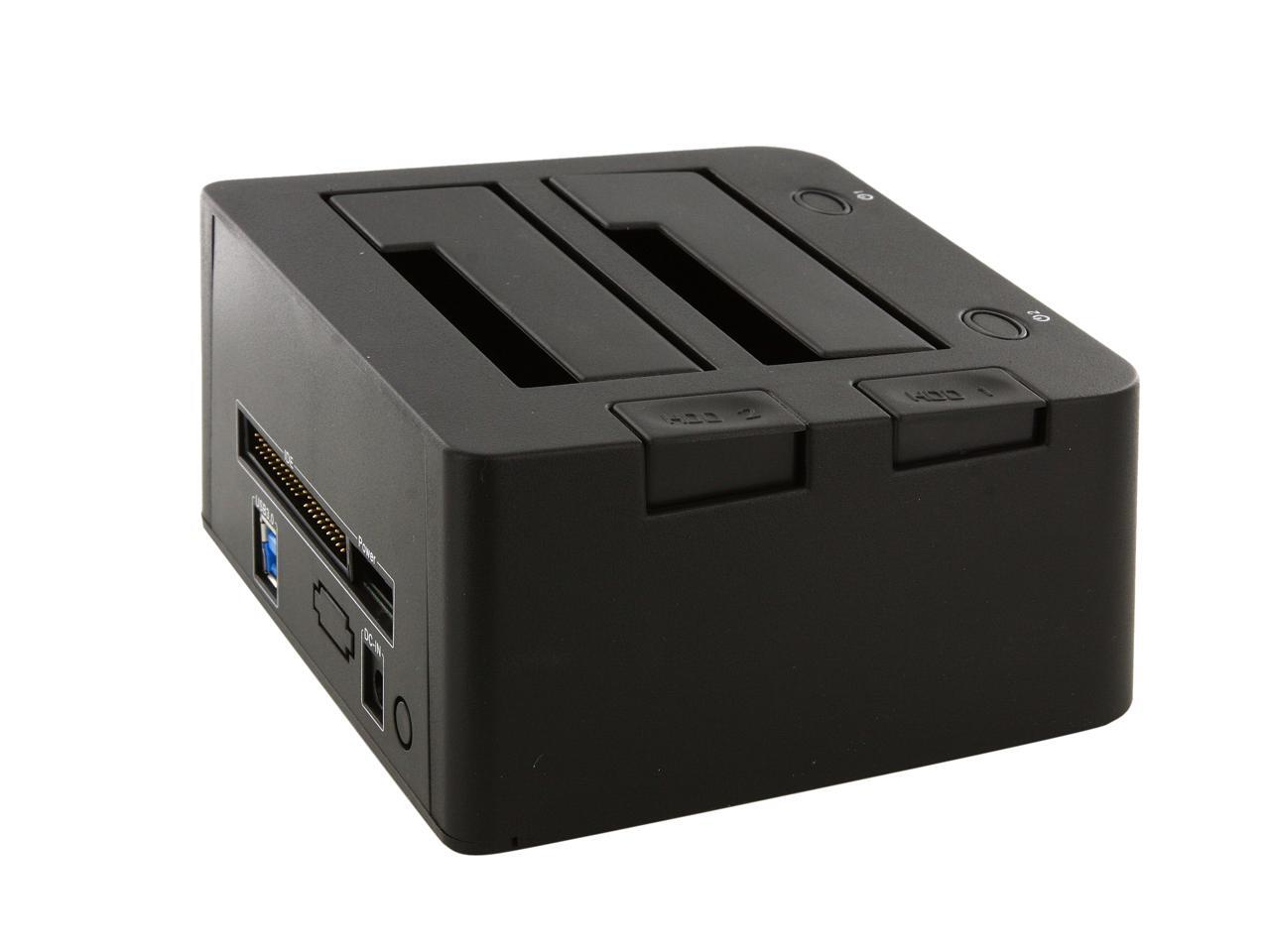

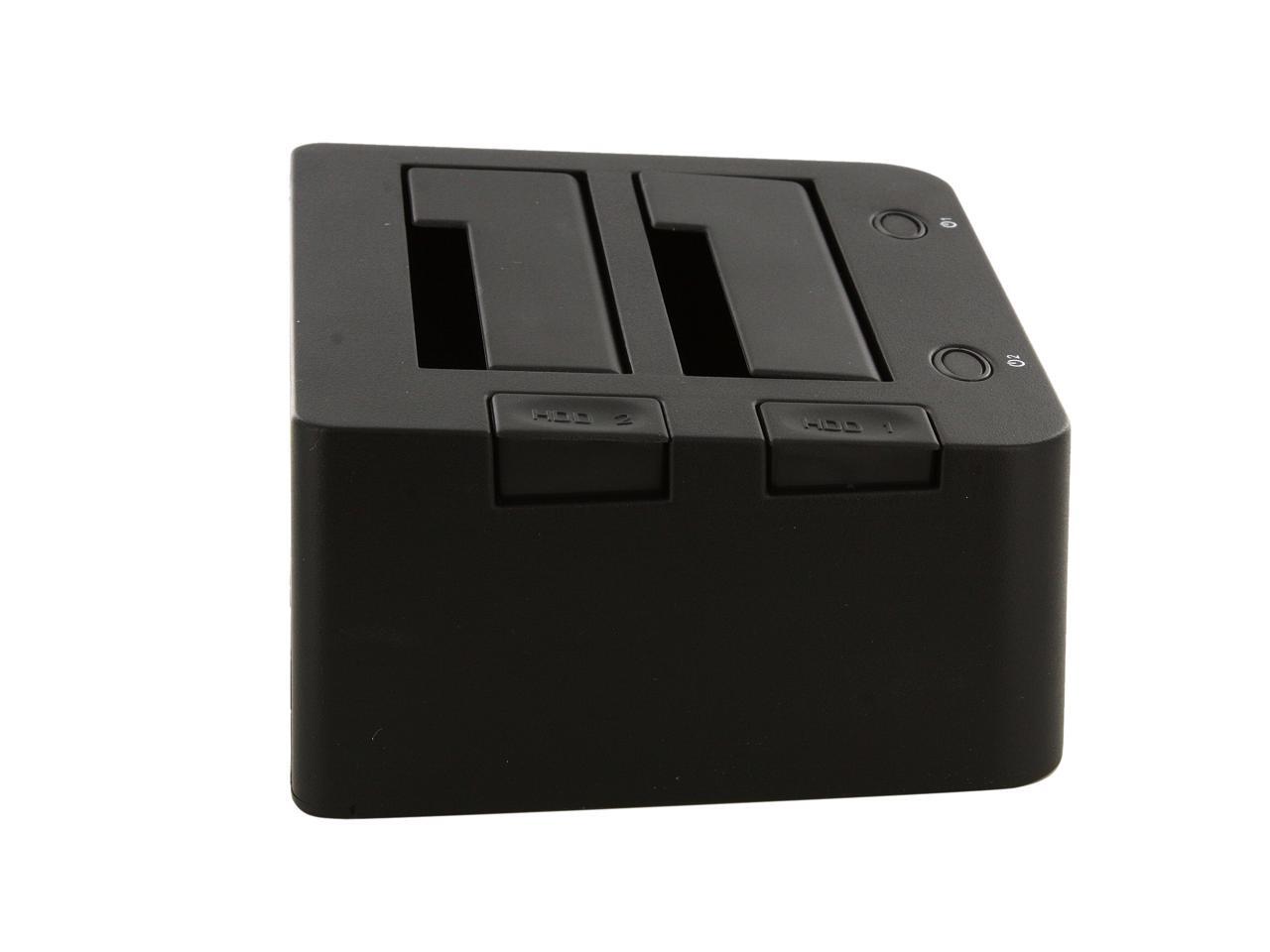

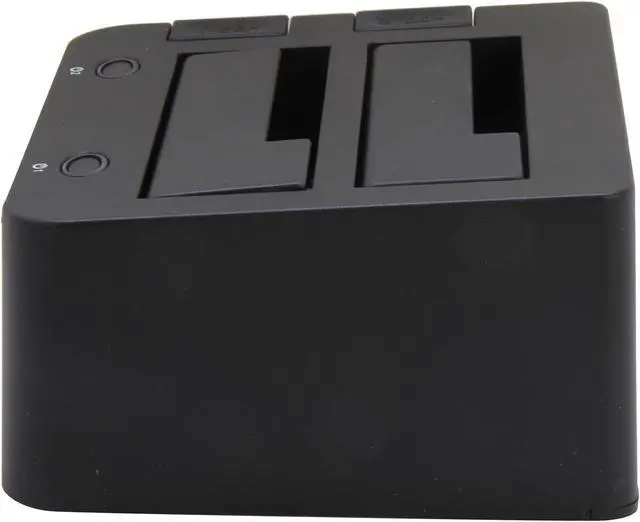

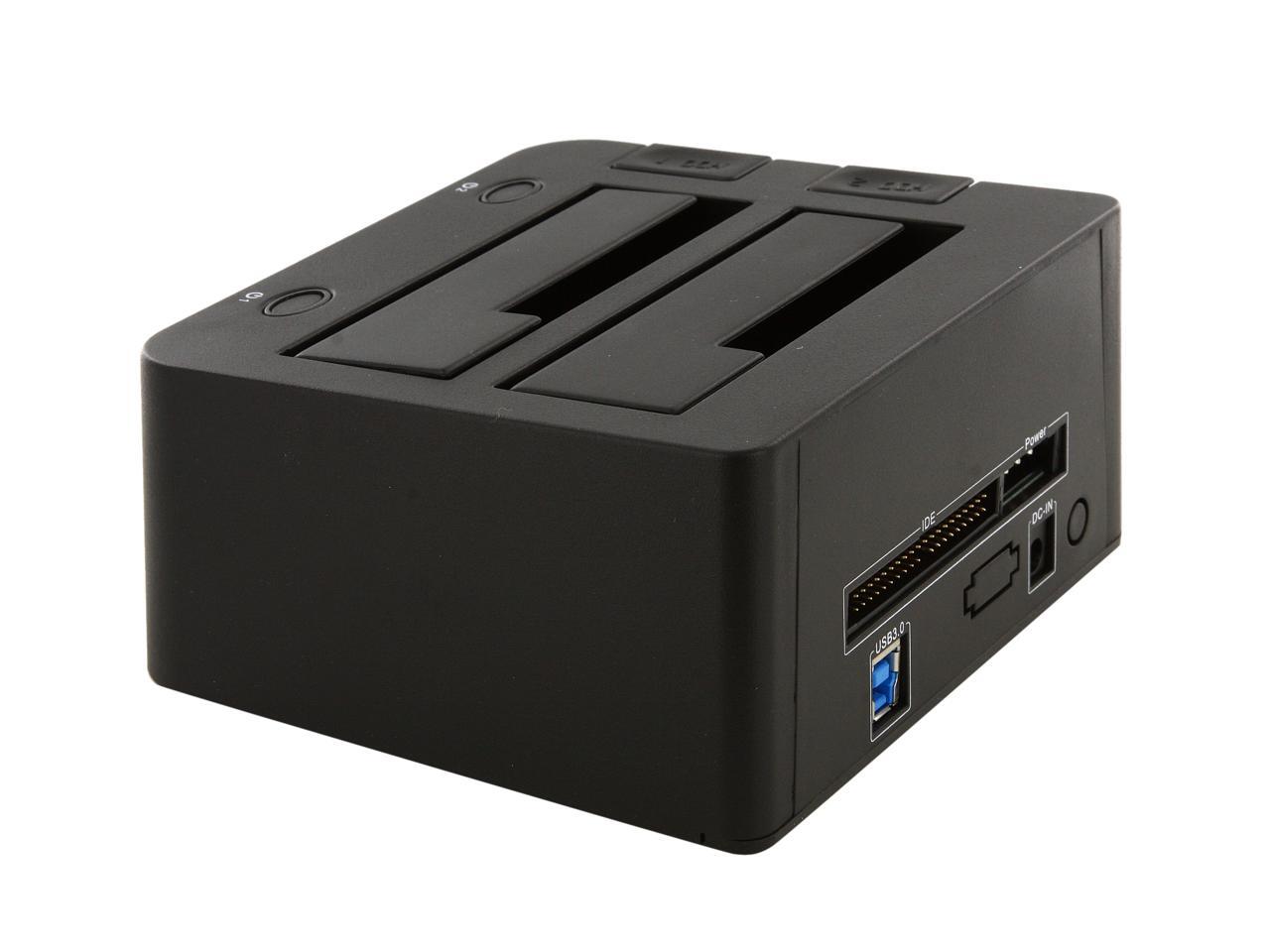

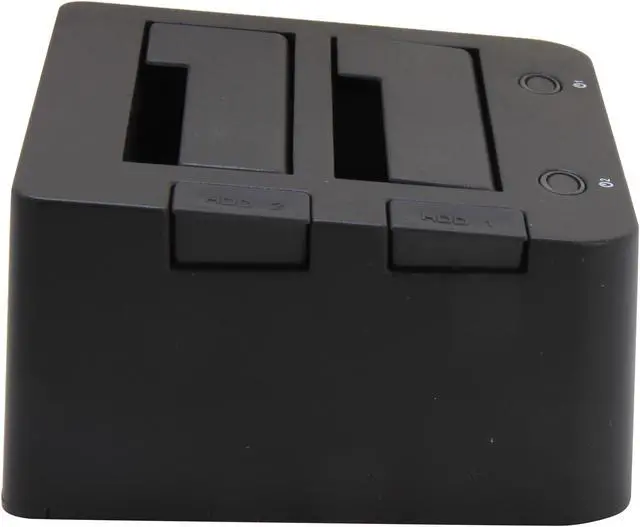

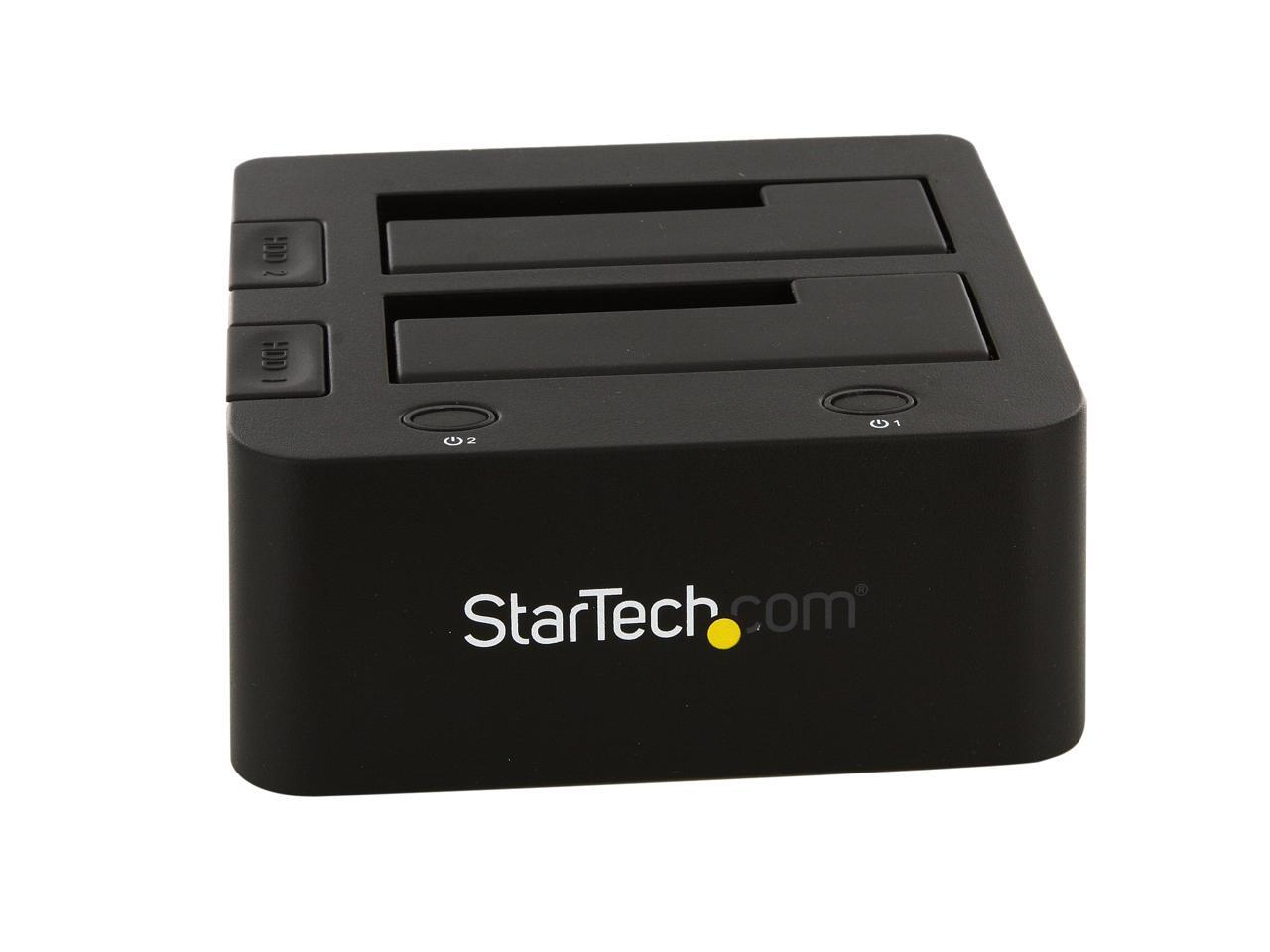

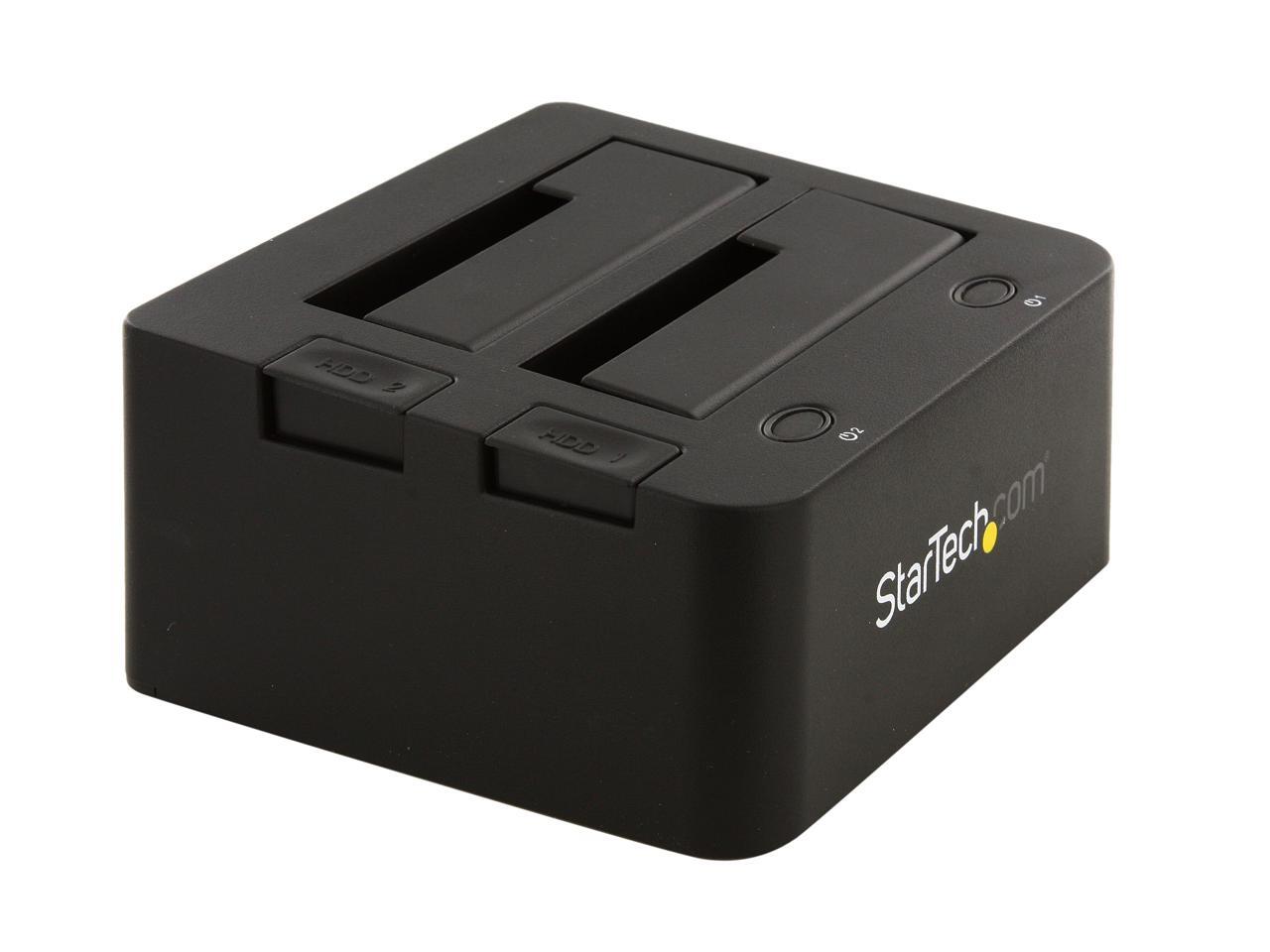

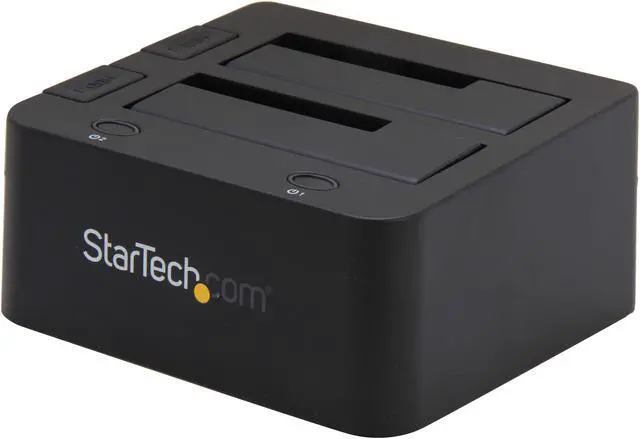

The UNIDOCK3U USB 3.0 to SATA/IDE Hard Drive Docking Station delivers instant access to 2.5in. and 3.5in. IDE and SATA hard drives through two top-loading drive slots - one for Serial ATA drives and one for IDE drives - instead of having to mount the drives into a computer or external enclosure.

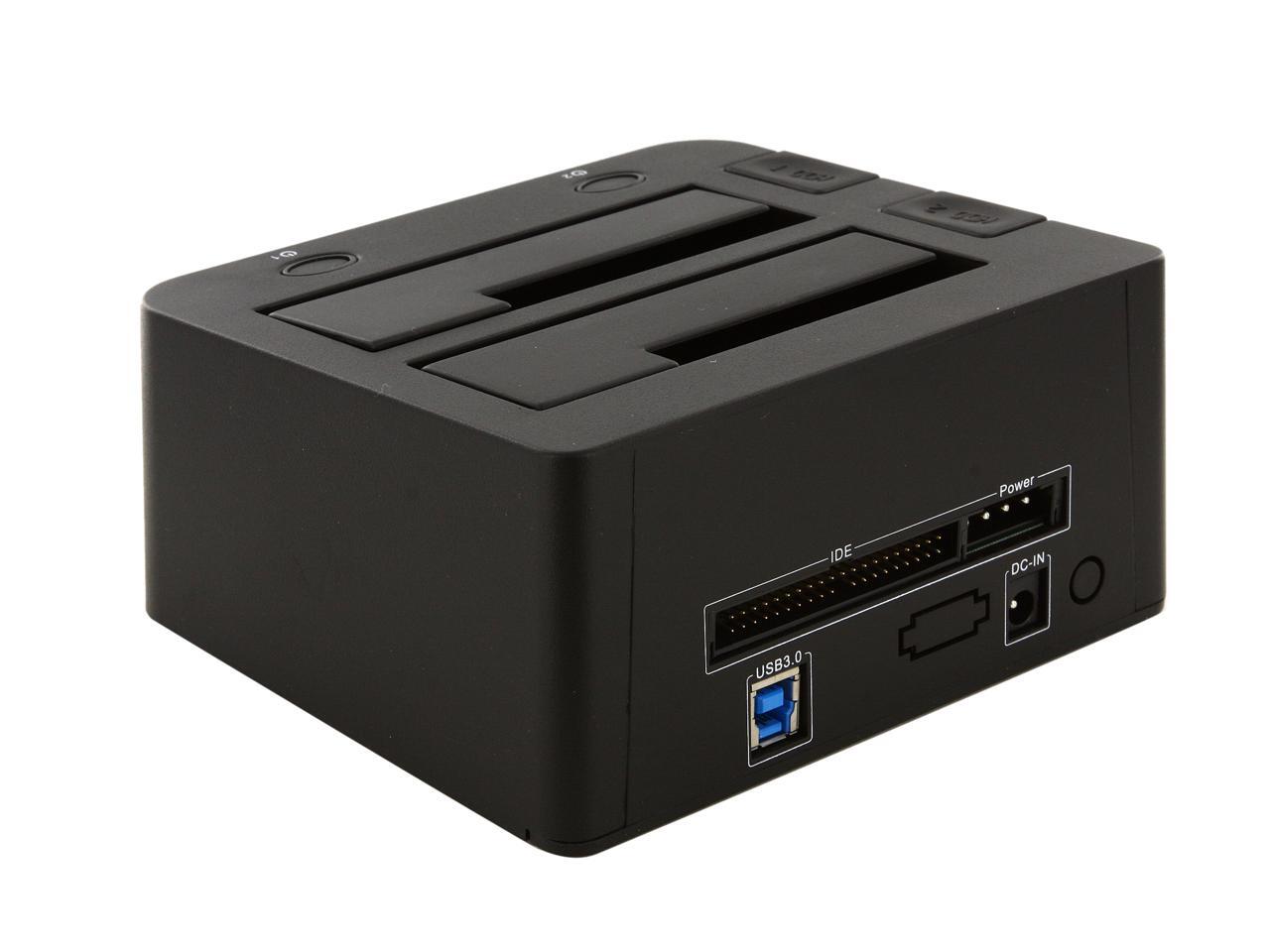

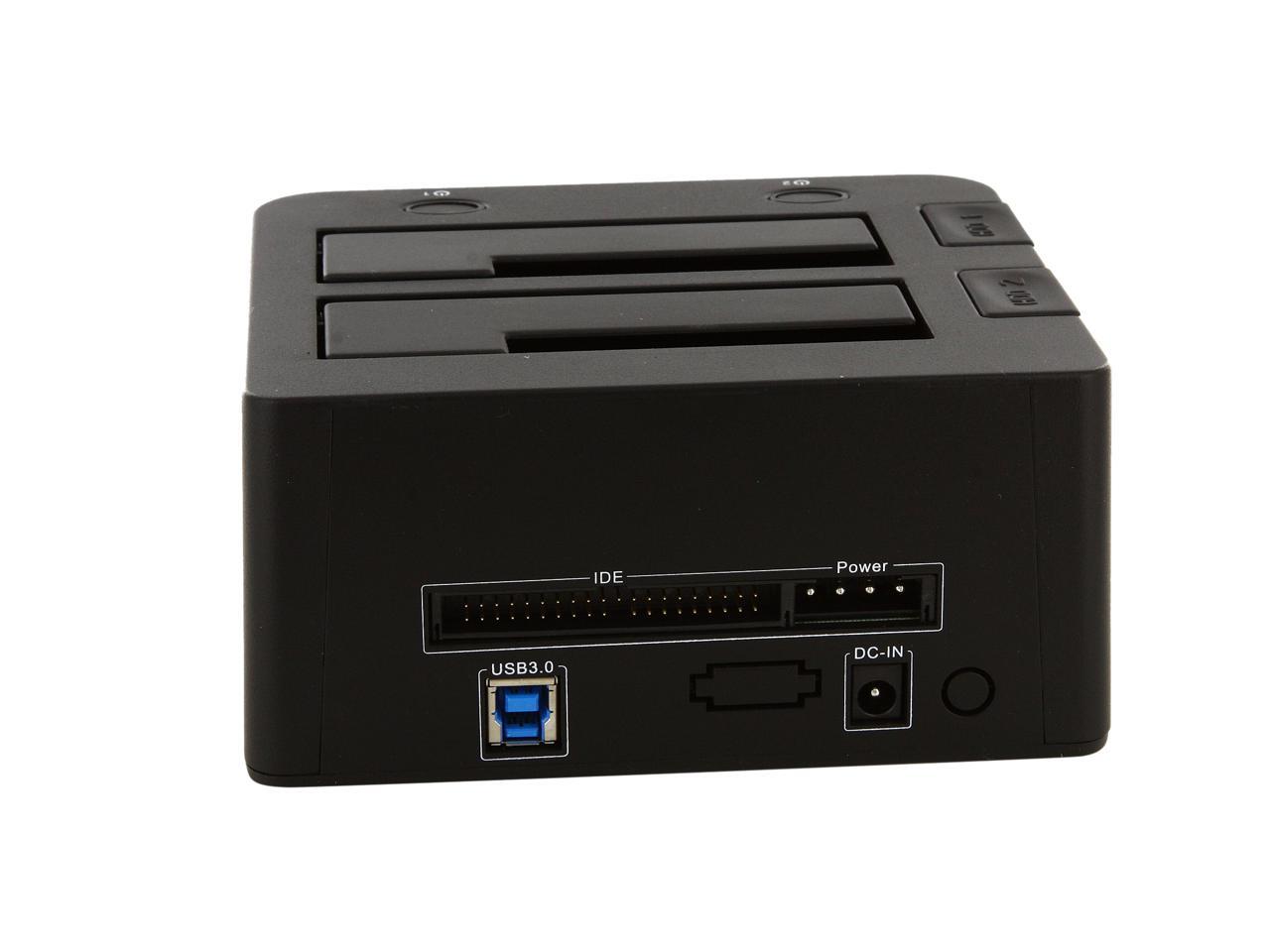

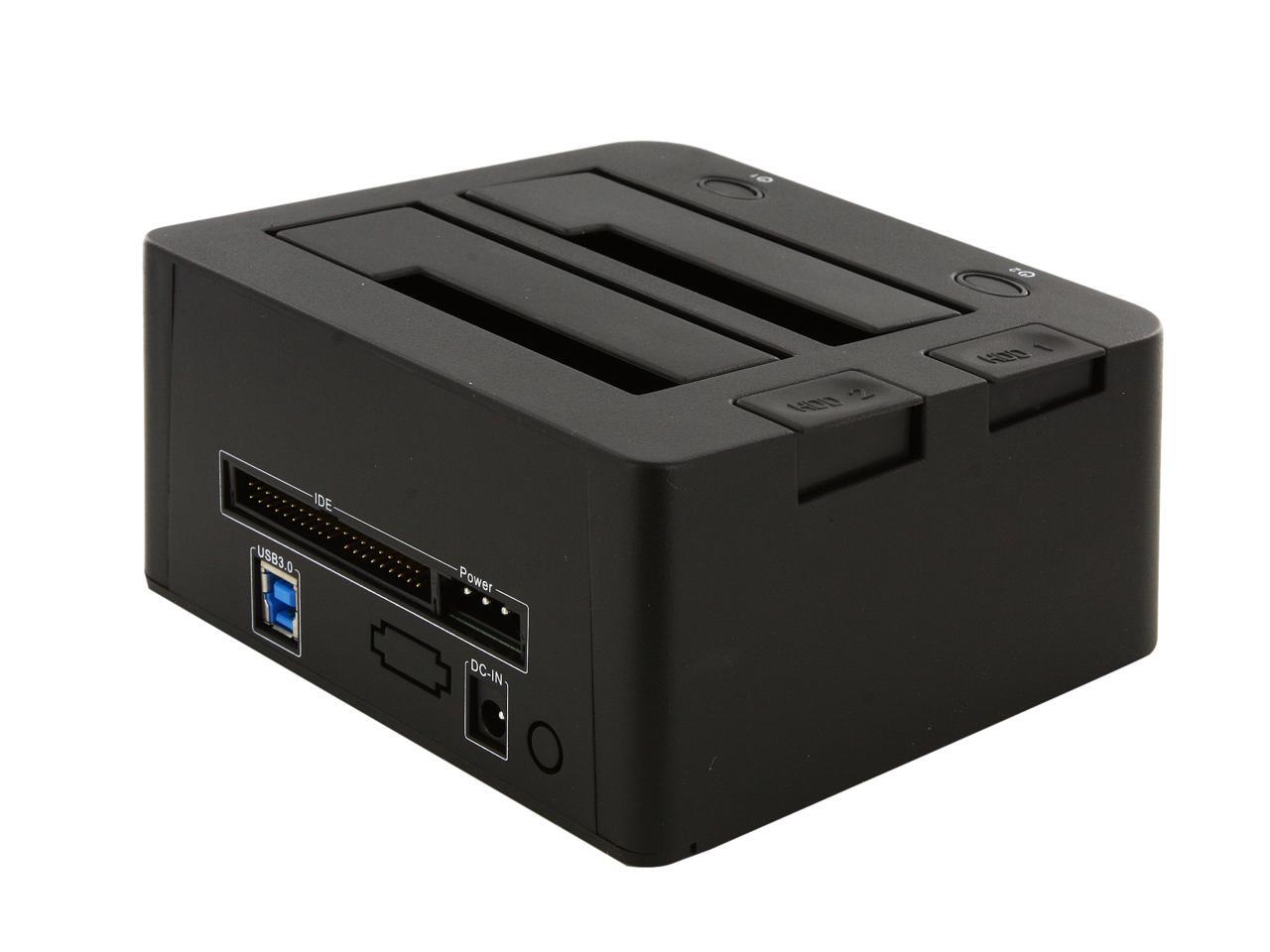

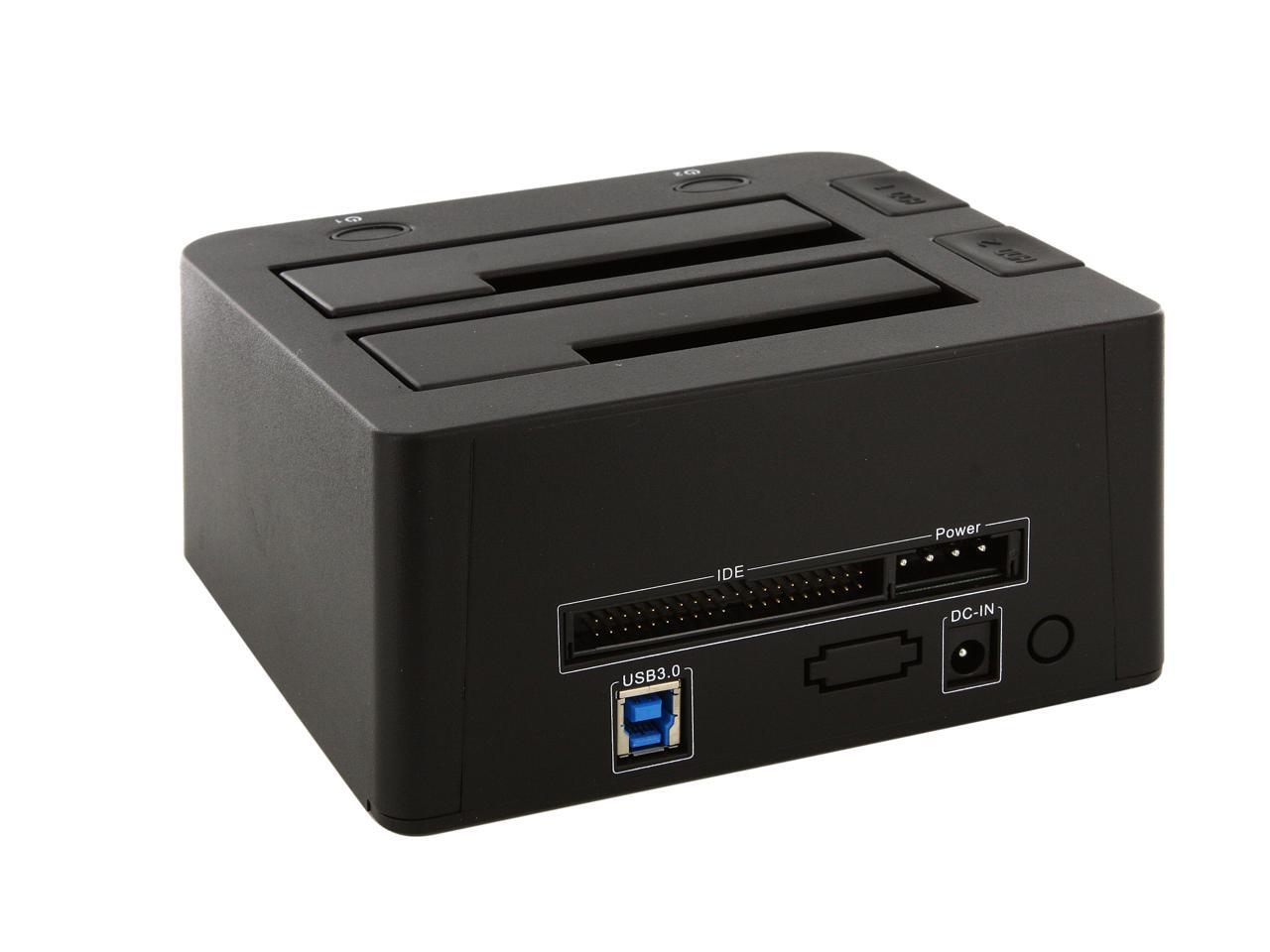

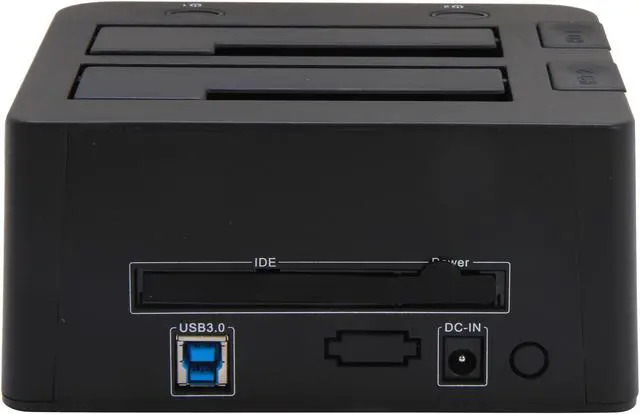

The slot-loading design holds the SATA and IDE drive(s) upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.
Connected to the host computer through a single USB 3.0 connection, both an IDE hard drive and a SATA hard drive (SATA, SATA II, SATA III) can be connected to the HDD dock simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa, or simply harnessing fast and simple access to the contents on both hard drives. Large capacity drives (tested with up to 4TB 3.5in. and 1TB 2.5in. drives) can be used to greatly enhance your computer's storage/backup capabilities.
- Connect a SATA and IDE hard drive at the same time or separately, through a single USB 3.0 connection at up to 5Gbps
- A top slot-loading design mounts both the SATA and IDE drive upright in the dock and off the desk for a neater workspace
- Backed by a StarTech.com two-year warranty and free lifetime technical support
Features
- Top slot-loading SATA and IDE drive bays
- SuperSpeed USB 3.0 compliant host interface, which supports transfer rates up to 5Gbps
- Patented drive ejection mechanism for SATA drives
- Combined power switch and status LED for each drive
- Compatible with PATA (IDE) 66 / 100 / 133MBps hard drives
- Compatible with SATA revision 1 / 2 / 3 (1.5 / 3.0 / 6.0Gbps) drives
- Supports 2.5in. or 3.5in. hard drives (HDD) or solid state drives (SSD)
- Compact, desktop-style form
- Plug-and-Play and hot-swap compatible
Applications
- Transfer files directly between a SATA and IDE hard drive, without having to transfer to the host computer first, or use multiple devices
- Quick access to 2.5in. and 3.5in. drives, for data retrieval
- Enables quick access to drives for imaging for data recovery specialists
- Backup data quickly to an external drive for archiving
- Easier multiple-hard-drive testing or benchmarking for technicians
Technical Specifications
| Warranty Information | |
|---|---|
| Warranty | Two Years |
| Hardware | |
| Interface | USB 3.0 |
| Number of Drives | 2 |
| Drive Size | 2.5in. and 3.5in. |
| Drive Type | SATA and IDE |
| Drive Installation | Removable |
| Fan(s) | No |
| Chipset ID | JMicron - JMS551 |
| Connector(s) | |
| Drive Connectors | 1 - IDE (40-Pin; EIDE/PATA) Male |
| 1 - LP4 (4-pin; Molex Large Drive Power) Male | |
| 1 - SATA Data & Power Combo (7 + 15-pin) Receptacle | |
| Host Connectors | 1 - USB 3.0 B (9-pin; SuperSpeed) Female |
| Performance | |
| Maximum Data Transfer Rate | 5Gbps |
| Type and Rate | USB 3.0 - 5Gbps |
| SATA II (3Gbps) | |
| RAID | No |
| Max Drive Capacity | Currently tested with up to 4TB 5400RPM 3.5in. hard drives and 1TB 5400 RPM 2.5in. hard drives |
| Insertion Rating | 15,000 Cycles (SATA) |
| Software | |
| OS Compatibility |
Windows XP (32- / 64-bit), Server 2003 (32- / 64-bit), Server 2008 R2, Vista (32- / 64-bit), 7 (32- / 64-bit), 8 (32- / 64-bit) Mac OS 10.4, 10.5, 10.6, 10.7, 10.8 Linux |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Length | 5.5in. (140mm) |
| Product Width | 5.1in. (130mm) |
| Product Height | 2.8in. (70mm) |
| Product Weight | 21.5oz (610g) |
| Indicators | |
| LED Indicators | 1 - Power and Drive Activity |
| Power | |
| Power Adapter Included | Yes |
| Input Voltage | 110VAC ~ 240VAC |
| Output Voltage | 12VDC |
| Output Current | 3A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Environmental | |
| Operating Temperature | 41°F to 176°F (5°C to 80°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Humidity | 8% - 90% RH |
| Special Notes / Requirements | |
| System and Cable Requirements | Available USB port |
| Packaging Information | |
| Shipping (Package) Weight | 2.9lbs (1.3kg) |

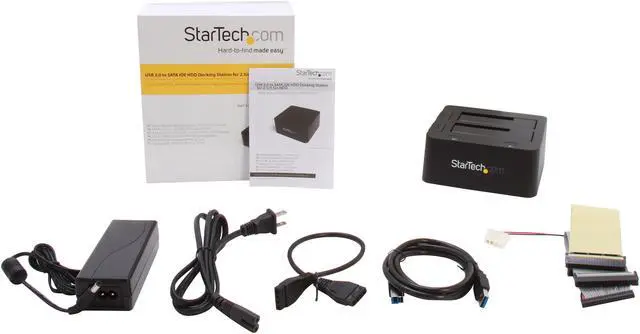

| What's in the Box | |
| Included in Package | 1 - Universal Hard Drive Dock |
| 1 - 40-Pin + LP4 to 44-Pin IDE Cable | |
| 1 - IDE 40 to 40-Pin Cable | |
| 1 - LP4 Power Cable | |
| 1 - USB 3.0 Cable | |
| 1 - Power Cord | |
| 1 - Power Adapter | |
| 1 - Instruction Manual | |
