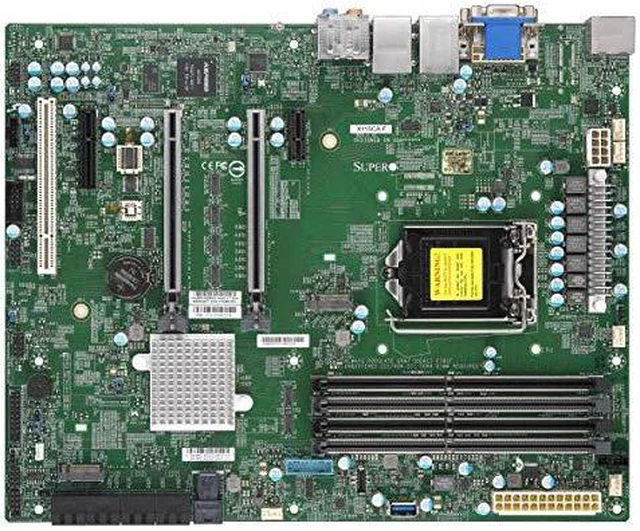

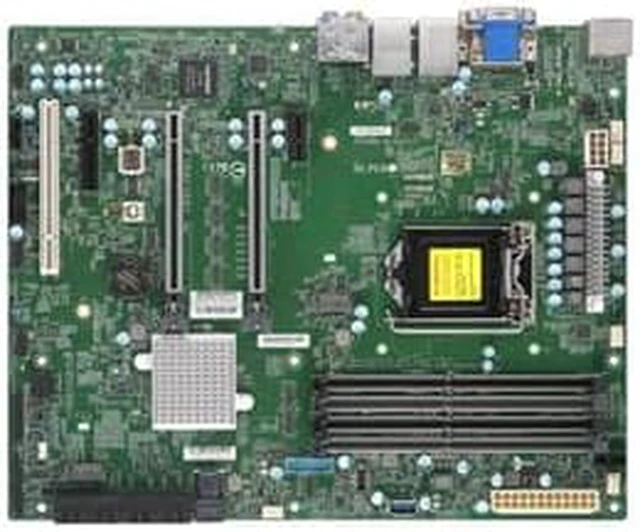

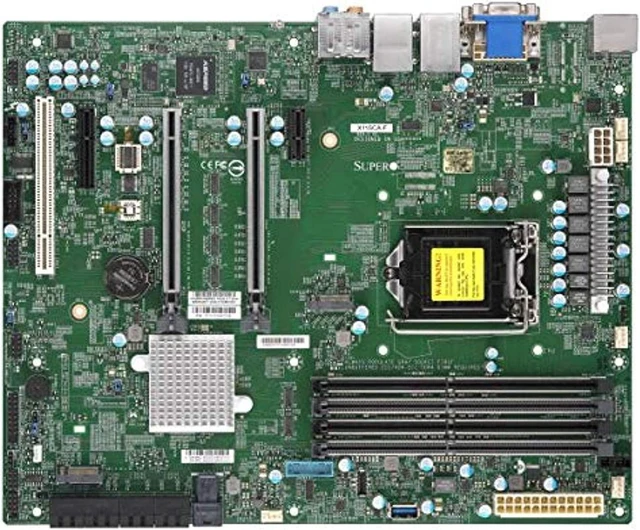

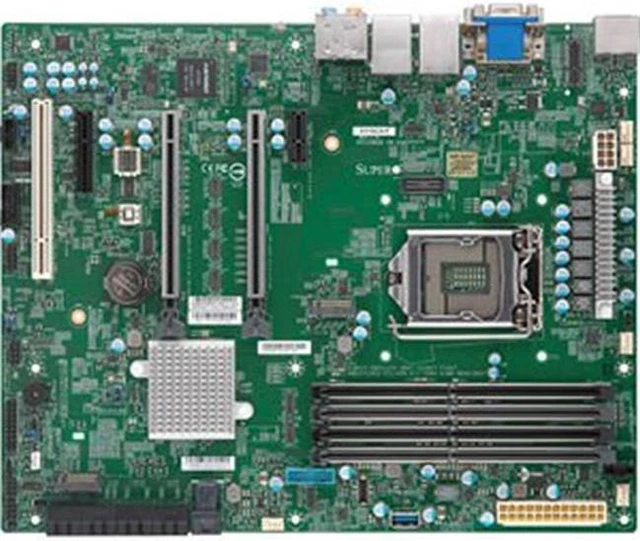

Supermicro Motherboard MBD-X11SCA-F-B Core i3 Socket 1151 C246 Up to 64GB PCIE SATA ATX Nulk Pack

MAIN OVERVIEW FEATURES:

• Chipset Manufacturer: Intel
• Total Processor Supported: 1
• Processor Socket: Socket H4 LGA-1151
• Processor Supported: Celeron, Core i3, Pentium, Xeon
• Number of Memory Slots: 4
• Memory Form Factor: DIMM, UDIMM
• Maximum Memory: 64 GB
• Memory Speed Supported: 2.67 GHz
• Memory Technology: DDR4 SDRAM
• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels: 0, 1, 5, 10
• Onboard Video: On-board Video Chipset
• Graphics Controller Manufacturer: ASPEED
• Graphics Controller Model: AST2500
• Gigabit Ethernet: Yes
• Number of Total Expansion Slots: 5
• Total Number of PCI Express Slots: 4
• Number of PCI Express x1 Slots: 1
• Number of PCI Express x4 Slots: 1
• Number of PCI Express x16 Slots: 2
• Total Number of USB Ports: 4
• Number of USB 3.1 Ports: 4
• VGA: Yes
• HDMI: Yes
• Display
  Port: Yes
• DVI: Yes
• Number of SATA Interfaces: 8
• Number of M. 2
  Interfaces: 2
• Total Number of Onboard USB Ports: 6
• Number of Onboard USB 3.1 Ports: 4
• Form Factor: ATX
• Width: 12" ( 304.80 mm)
• Depth: 9.60" ( 243.84 mm)
• Package Contents:
  • X11SCA-F Workstation Motherboard
  • 2 x SATA3 Cable
  • 1 x X11SCA Series IO Shield
  • 2 x M. 2 SSD Folder
• Environmentally Friendly: Yes
• Environmental Certification: RoHS
• Limited Warranty: 1 Year
