Question 1

Does it support i7 7th generation?

Accepted Answer

"Intel® LGA 1151(H4) 7th/6th Gen Core i7/i5/i3/Pentium®/ Celeron®processors (up to 120W TDP) "  So that would be a yes. Just don't get a i7-7740X, those use a 2066 socket.

Question 2

How many monitors are supported by the motherboard?

Accepted Answer

I've run three monitors. Two at 1600x1200 and a 1920x1080.  Everthing is fine but skip any thought of gaming with that many pixels to drive!

Question 3

What size and type of power supply will this mother board need?

Accepted Answer

Power supply size needed is set more by the video card draw than anything else.  Note: buying to big a supply will generally decrease the efficiency of the supply, too small and you have problems.

Question 4

Are there any restrictions on the sata ports when using a m.2 drive? I can't find an answer in the manual.

Accepted Answer

The answer is"depends".  The PCIE lanes on the chips for this board are limited (16 lanes).  So many devices share this limited number of lanes.  Depending on what you mount to this board you can find yourself coming up short.  The general user will not run out, but read up on the limitations that a chip/motherboard has before just buying.  Some of the latest chips have 24 lanes - at a higher cost of course.

Question 5

If i add 16 GB of ram with the onboard video would i be able to play rust?

Accepted Answer

Onboard video should not be a good idea to run rust.  Check the rust system requirement online.

Question 6

Will this board support VMWare ESIx?

Accepted Answer

It should support it. I found the only thing that this motherboard (and AMD Ryzen7) does not supports is the on-board video.

Question 7

Will this mobo run PCIE at 8x/8x with 2 RX 480s installed in crossfire?

Accepted Answer

According to the specification, it can support crossfire.

Brand	SUPERMICRO
Model	C7Z270-CG-L

CPU Socket Type	LGA 1151
CPU Type	Intel 7th/6th Gen Core i7/i5/i3 series processors; CPU TDP support up to 160W TDP

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 up to 2800(OC)
Maximum Memory Supported	64GB

PCI Express 3.0 x16	2 x PCI-E 3.0 x16 slots (16/NA or 8/8)
PCI Express x4	1 x PCI-E 3.0 x4 slot 2 x PCIe 3.0 x4 M.2 (support 22110, RAID 0, 1 support)
PCI Express x1	3 x PCI-E 3.0 x1 slots

Serial ATA (SATA)	6 x SATA 6Gb/s
SATA RAID	0/1/5/10

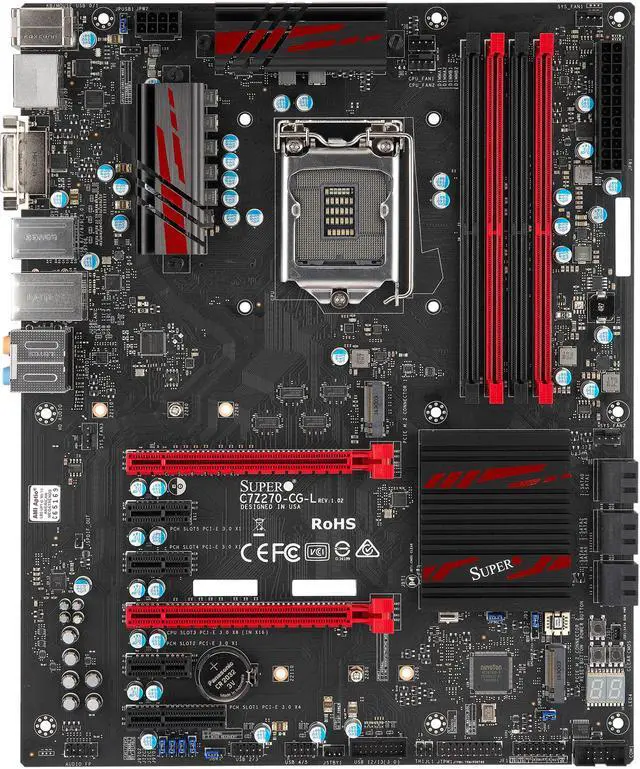

SUPERMICRO C7Z270-CG-L LGA 1151 Intel Z270 HDMI USB 3.1 USB 3.0 ATX Motherboards - Intel

Learn more about the Supermicro C7Z270-CG-L

Customer Reviews of the Supermicro C7Z270-CG-L

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Video Ports	1 x DVI-D
HDMI	1 x HDMI 1.4b
RJ45	1 x RJ45
DisplayPort	1 x DisplayPort 1.2
USB 3.1	2 x USB 3.1 ports (1 Type A, 1 Type C)
USB 3.0	4 x USB 3.0
USB 1.1/2.0	2 x USB 2.0

Onboard Audio
Audio Chipset	Realtek ALC1150
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"

Item#: N82E16813183606
