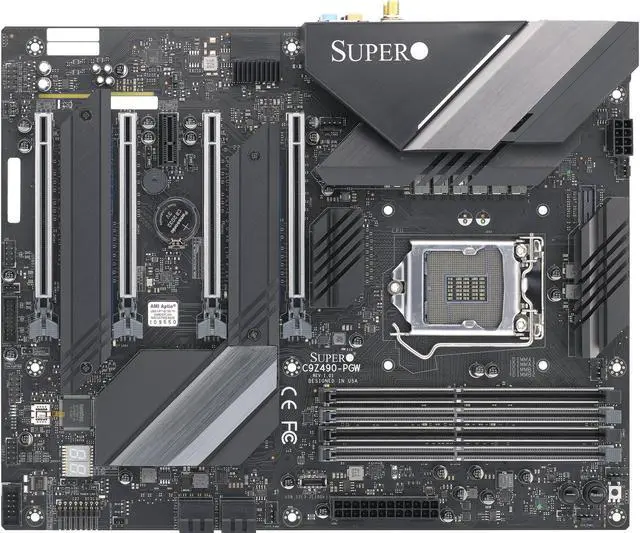

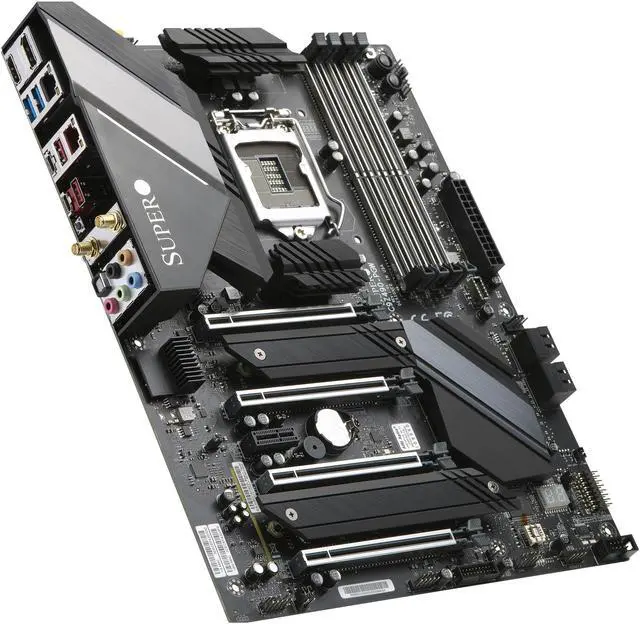

Supermicro MBD-C9Z490-PGW-O, 10th Gen Intel Core CPU Supported, Wi-Fi, Four PCI-e x16, Two M.2 NVMe, USB 3.2 Gen2
- Intel Z490
- Intel 10th Gen Comet Lake, Core i9, Core i7, Core i5, Core i3 CPUs
- Maximum 128GB DDR4-2933 MHz
- Four PCI-E 3.0 x16 Slots
- Two NVMe M.2 Slots, Fast Storage
- Wired Lan, One 10G, and one 1G Ports
- Wireless Lan, One Wi-Fi 6 (802.11ax) Port
- USB 3.2 Gen 2
- One Display Port, One HDMI port
Specs
Reviews (5)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-C9Z490-PGW-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-C9Z490-PGW-O |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | 10th Generation Intel Core i9/Core i7/Core i5/Core i3 / Pentium/Celeron Processor |
| Chipset | Intel Z490 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2933 to 4000+ MHz (OC) |
| Maximum Memory Supported | 128GB |
| PCI Express 3.0 x16 | 4 PCI-E 3.0 x16 slots (16/NA/16/NA or 8/8/8/8) |
|---|---|
| PCI Express x1 | 1 PCI-E 3.0 x1 |
| Other Slots | M.2-E1 port pre-installed one Intel Wi-Fi 6 (802.11ax) +BT5.0 module |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 Form Factor: 2260/2280/22110 Key: M-Key RSTe software raid; 2 M.2 M-Key PCI-E 3.0 x4, 2260/2280/22110 |
| Audio Chipset | Realtek ALC1220 |
|---|
| LAN Chipset | AQUANTIA AQC107 |
|---|---|
| Second LAN Chipset | Intel I219V |
| Max LAN Speed | 10Gbps + 1Gbps |
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | 5.0 |
| Back I/O Ports | 1 x DisplayPort / 1 x HDMI / 1 x USB 3.2 Gen 2 Type-C / 1 x USB 3.2 Gen 2x2 Type-C / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A / 2 x USB 3.2 Gen 2 Type-A |
|---|
| Onboard USB | 4 USB 2.0 ports 2 USB 3.2 Gen1 ports 1 USB 3.2 Gen2 ports |
|---|
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|---|

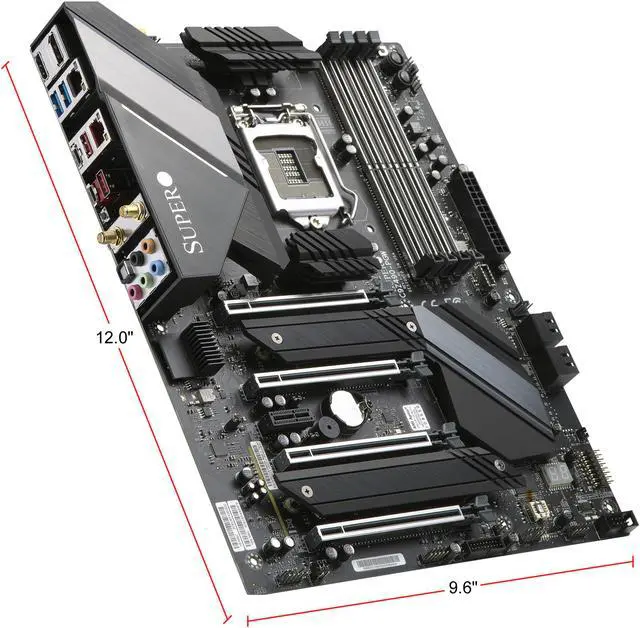

| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | June 04, 2020 |
|---|
