Will the Intel Core i3-4160 Haswell work with this motherboard?

Yes it will. I built one using a Core i3/3850 Haswell last October myself and it purrs like a kitten. The 4160 may run a little hot though, make sure you put a good cooling unit rated for 65W TDP on it - the stock cooler it comes with will be fine unless you're trying to put this in a 1U server chassis - if that's the case you will have to find a good micro-cooler that's very, very short. The stock cooler that comes with this CPU will NOT fit into a 1U server chassis.

does this have a video (Graphics) card slot and if so what are the details on the slot?

This board has an x16 PCI Express lane, which is compatible with most graphics cards. I believe all the lanes are straight from the CPU on the x16 slot. The x8 slot (the shorter one) is meant more for things like RAID cards or network controller cards, and this x8 slot bus goes to the C222 chipset.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

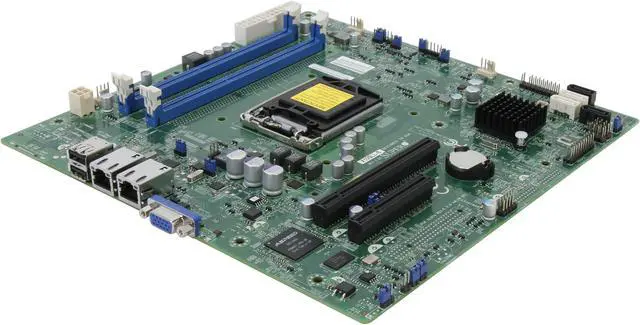

Main image of SUPERMICRO MBD-X10SLL-S-O uATX Server Motherboard LGA 1150 Intel C222 DDR3 1600

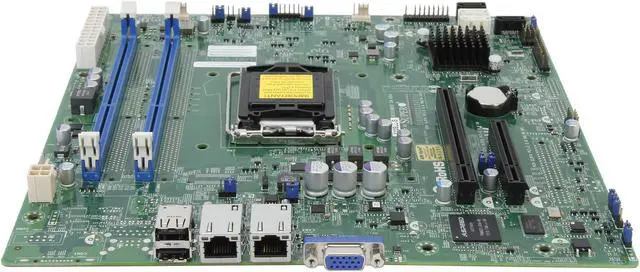

Alt view image 2 of 5 - SUPERMICRO MBD-X10SLL-S-O uATX Server Motherboard LGA 1150 Intel C222 DDR3 1600

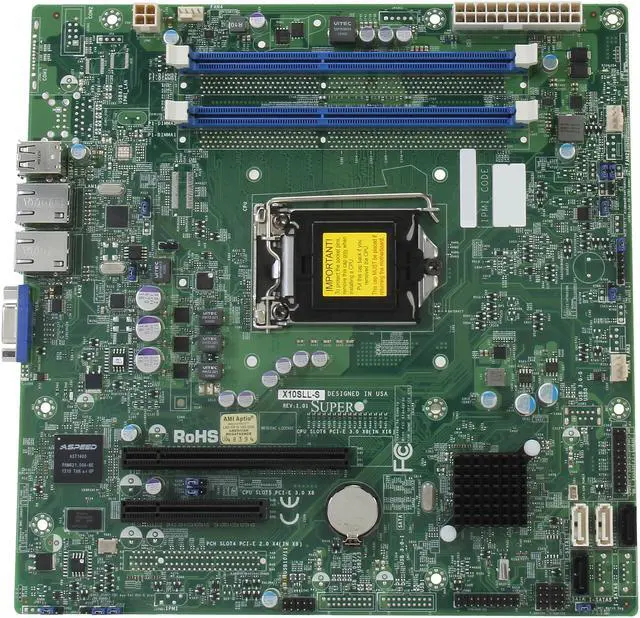

Alt view image 3 of 5 - SUPERMICRO MBD-X10SLL-S-O uATX Server Motherboard LGA 1150 Intel C222 DDR3 1600

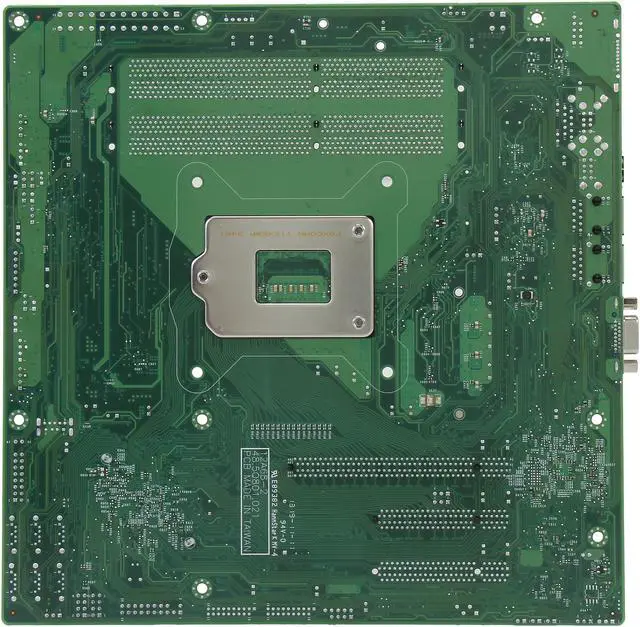

Alt view image 4 of 5 - SUPERMICRO MBD-X10SLL-S-O uATX Server Motherboard LGA 1150 Intel C222 DDR3 1600

Alt view image 5 of 5 - SUPERMICRO MBD-X10SLL-S-O uATX Server Motherboard LGA 1150 Intel C222 DDR3 1600

Shop All Supermicro Products

SUPERMICRO MBD-X10SLL-S-O uATX Server Motherboard LGA 1150 Intel C222 DDR3 1600

(1) Write a Review

LGA 1150
Intel C222
2 x 240pin

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

SUPERMICRO MBD-X10SLL-S-O uATX Server Motherboard

Features

Single socket H3 (LGA 1150) supports Intel® Xeon® E3-1200 v3/v4, 4th gen. Core i3, Pentium, Celeron processors
Intel® C222 Express PCH
Up to 16GB DDR3 ECC 1600MHz UDIMMs in 2 sockets
Dual Gigabit Ethernet LAN ports (1x Intel® i217LM & 1x Intel® i210AT)
2x SATA (6Gbps), 2x SATA (3Gbps)
Expansion slots: 1x PCI-E 3.0 x8 (in x16) and 1x PCI-E 3.0 x8 slots
4x USB 2.0 (2 rear + 2 via header)
SATA DOM power connector support
VGA D-sub connector, TPM header

Specifications

Product SKUs
MBD-X10SLL-S	X10SLL-S (Bulk Pack)
Physical Stats
Form Factor	microATX
Dimensions	9.6" x 9.6", (24.4cm x 24.4 cm)
Processor/Cache
CPU	Intel® Xeon® processor E3-1200 v3/v4 and 4th Gen Core i3, Pentium, Celeron processors Single Socket H3 (LGA 1150)
System Memory
Memory Capacity	2x 240-pin DDR3 DIMM sockets Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type	1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	8GB, 4GB, 2GB, 1GB
Memory Voltage	1.5V, 1.35V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	Intel® C222 Express PCH
SATA	SATA3 (6Gbps) w/ RAID 0, 1 SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
Network Controllers	Intel® i217LM + Intel® i210AT Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA	BMC integrated Aspeed AST1200
Input / Output
Serial ATA	2x SATA3 (6Gbps) ports 2x SATA2 (3Gbps) ports
LAN	2x Gigabit Ethernet LAN ports
USB	4x USB 2.0 ports (2 rear, 2 via header)
VGA	1x VGA D-Sub Connector
Serial Port / Header	1x COM port (1 header)
DOM	SATA DOM (Disk on Module) power connector support
TPM	1x TPM 1.2 20-pin Header
Expansion Slots
PCI-Express	1x PCI-E 3.0 x8 (in x16) slot 1x PCI-E 3.0 x8 slot
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	DMI (SMBIOS) 2.7 ACPI 5.0 USB Keyboard support
Management
Software	SuperDoctor® III Watch Dog NMI
Power Configurations	ACPI / ACPM Power Management Main Switch Override Mechanism Power-on mode for AC power recovery Internal/External modem ring-on
PC Health Monitoring
Voltage	Monitors for CPU Cores, +1.8V, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN	Total of three 4-pin fan headers supporting up to 3 fans 3x fans with tachometer status monitoring Status monitor for speed control Status monitor for on/off control Support 3-pin fans (w/o speed control) Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support FC temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED +5V Standby alert LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header

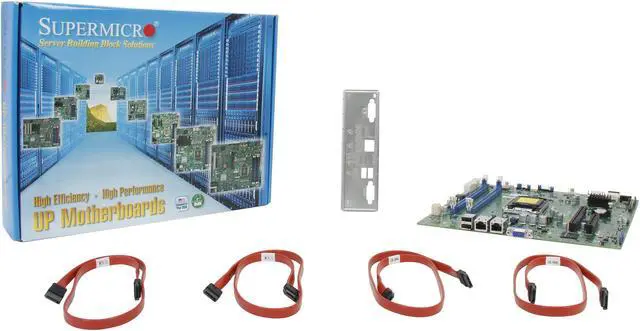

What's in the Box

Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling.

Model
Brand	SUPERMICRO
Model	MBD-X10SLL-S-O

Supported CPU
CPU Socket Type	LGA 1150
CPU Type	Intel Xeon E3-1200 v3 and 4th Gen Core i3, Pentium, Celeron (up to 65W)

Chipsets
North Bridge	Intel C222

Memory
Number of DDR3 Slots	2 x 240pin
DDR3 Standard	DDR3 1600
Maximum Memory Supported	16GB
ECC Supported	Yes

Expansion Slots
PCI Express 3.0 x16	1x PCI-E 3.0 x8 (in x16) slot
PCI Express x8	1x PCI-E 3.0 x8 slot

Storage Devices
SATA	2 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s
SATA RAID	SATA3 (6Gbps) w/ RAID 0, 1 SATA2 (3Gbps) w/ RAID 0, 1, 5, 10

Onboard Video
Onboard Video Chipset	Aspeed AST2400

Onboard LAN
LAN Chipset	Intel I217-LM
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel I210-AT
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
Video Ports	D-Sub
USB 1.1/2.0	2 x USB 2.0

Features
Features	SATA DOM (Disk on Module) power connector support 1x TPM 1.2 20-pin Header 1x COM port (1 header)

Dimensions
Form Factor	uATX
Dimensions (W x L)	9.6" x 9.6"
