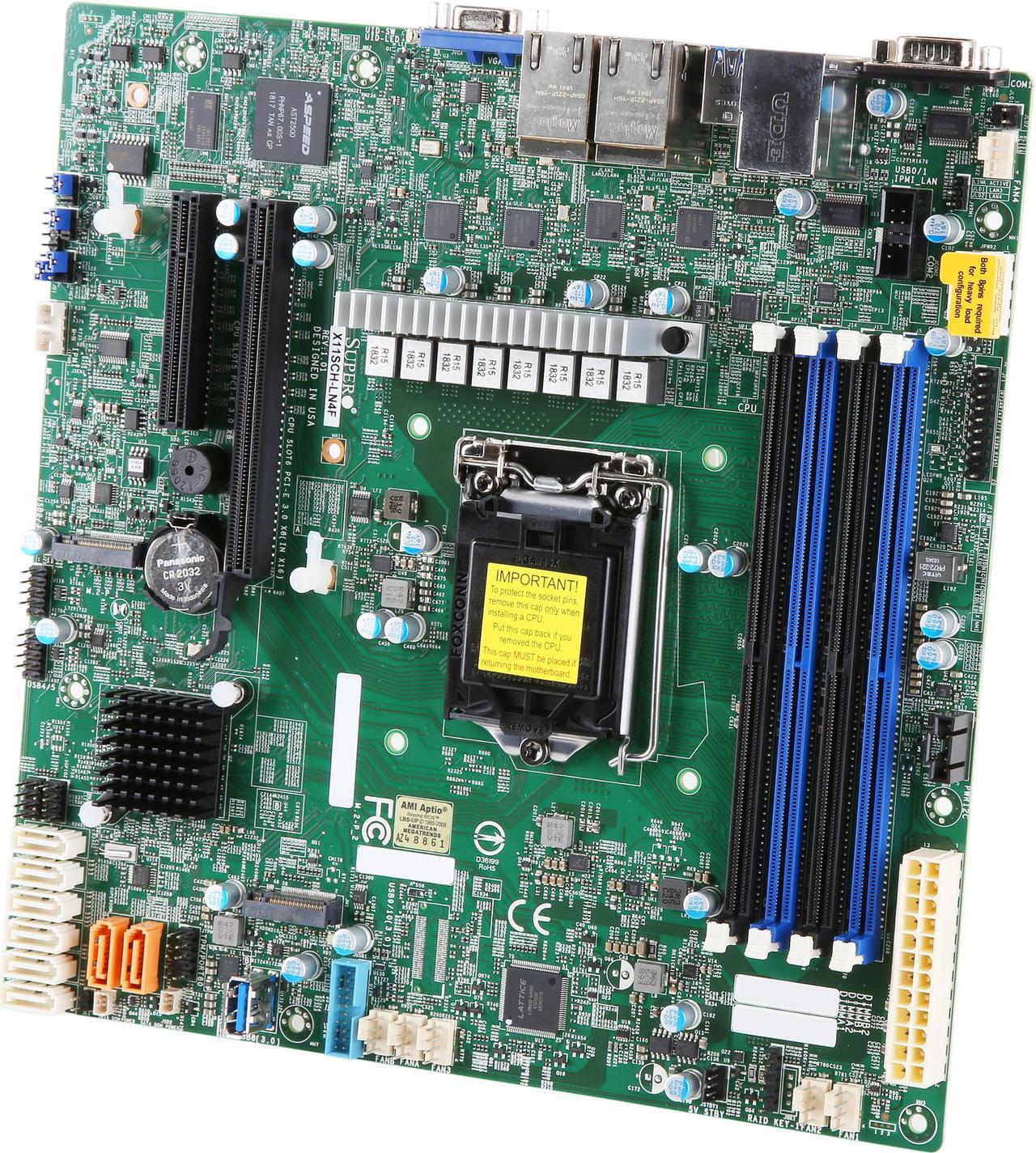

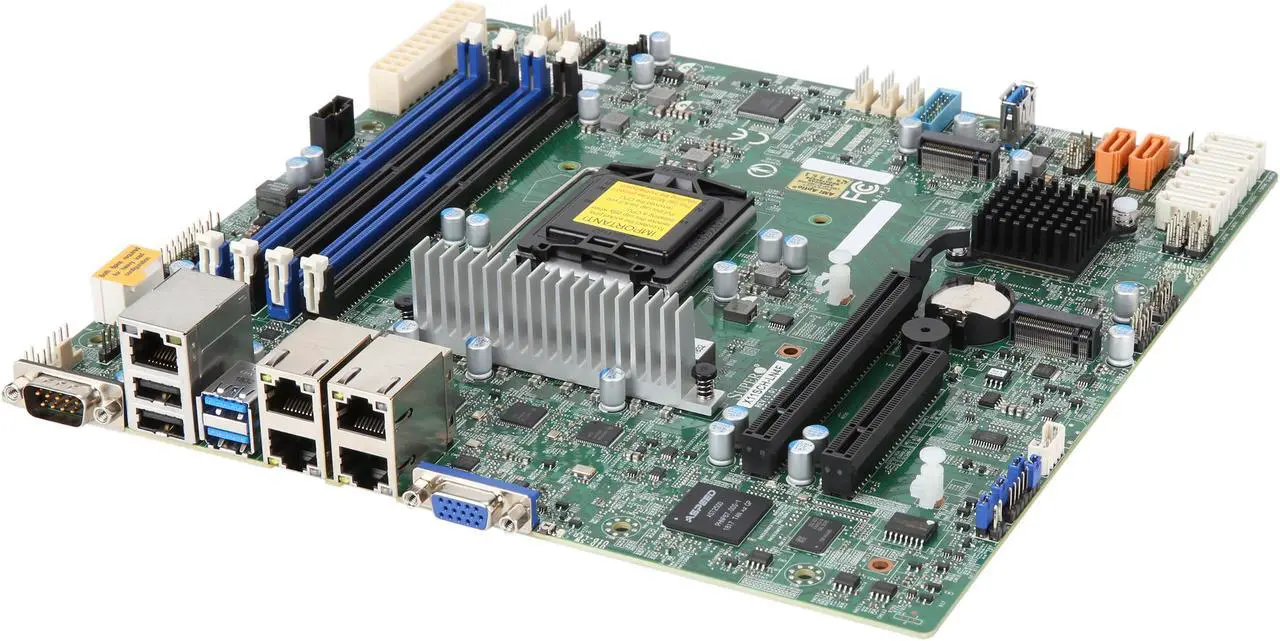

SUPERMICRO MBD-X11SCH-LN4F-O Micro ATX Server Motherboard LGA 1151 Intel C246
- 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
- Intel® C246 chipset
- Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots
- Expansion slots: 1 PCIe 3.0 x8 (in x16) and 1 PCIe 3.0 x8 slots
- 2x M.2 NGFF connectors
- M.2 Interface: PCIe 3.0 x4
- Form Factor: 2280, 22110
- Key: M-Key
- 8 SATA3 (6Gbps) via C246; RAID 0, 1, 5, 10
- 2 USB 3.1 Gen 2 (rear); 3 USB 3.1 Gen 1 (1 Type A, 2 via header(s)); 6 USB 2.0 (2 rear, 4 via header(s))
- Quad GbE LAN ports via Intel® i210
- 2 SuperDOM with built-in power
- I/O: 1 VGA, 2 COM, 1 TPM header
+
+
Specs
Reviews (4)
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Learn more about the Supermicro MBD-X11SCH-LN4F-O
| Brand | SUPERMICRO |
|---|---|
| Model | MBD-X11SCH-LN4F-O |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | 8th Generation Intel Core i3 / Pentium / Celeron Processor, Intel Xeon Processor E-2100 series. Socket LGA 1151 supported, CPU TDP support Up to 95W TDP |
| North Bridge | Intel C246 |
|---|
| DDR4 Standard | DDR4 2666 / 2400 / 2133 MHz ECC SDRAM 72-bit |
|---|---|
| Maximum Memory Supported | Up to 128GB DDR4 ECC UDIMM, in 4 x DIMM slots |
| PCI Express x8 | 1 x PCI-E 3.0 x8 (in x16 slot) 1 x PCI-E 3.0 x8 |
|---|
| SATA | 8 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | Aspeed AST2500 BMC |
|---|
| LAN Chipset | Intel I210 |
|---|---|
| Second LAN Chipset | Intel I210 |
| COM | 1 |
|---|---|
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.1 | 2 x USB 3.1 |
| Features | 8th Generation Intel Core i3 / Pentium / Celeron Processor, Intel Xeon Processor E-2100 series. , Socket LGA 1151 supported, CPU TDP support Up to 95W TDP Intel C246 chipset Up to 128GB DDR4 2666 MHz ECC UDIMM; 4 x DIMM slots Expansion slots: 1 x PCI-E 3.0 x8 (in x16) and 1 x PCI-E 3.0 x8 slots Quad GbE LAN ports via Intel i210 8 x SATA3 (6 Gbps) via C246; RAID 0, 1, 5, 10 I/O: 1 x VGA, 2 x COM, 1 x TPM header 2 x SuperDOM with built-in power 2 x USB 3.1 Gen 2 (rear); 3 x USB 3.1 Gen 1 (1 x Type A, 2 x via header (s) ); 6 x USB 2.0 (2 x rear, 4 x via header (s) ) 2 x M.2 NGFF connectors M.2 Interface: PCI-E 3.0 x4 Form Factor: 2280, 22110 Key: M-Key Double Height Connector |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | February 11, 2019 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-503-8000
- Support Website
- View other products from Supermicro
LOADING...
LOADING...
The SUPERMICRO MBD-X11SCH-LN4F-O is a Micro-ATX server motherboard for builders using supported 8th/9th Gen Intel Core i3, Pentium, or Celeron CPUs, or Intel Xeon E-2100/E-2200 processors. It combines ECC memory support, four Gigabit Ethernet ports, and flexible storage for compact server builds.
Recommended For
- Home-server and small-office NAS builders running TrueNAS or ZFS who want ECC UDIMM support and up to eight onboard SATA drives for a compact storage system.
- Homelab operators building a Proxmox or similar server who want four onboard 1GbE ports for separating or assigning network connections, plus out-of-band IPMI management.
- Remote or unattended server builders who need IPMI-based management and monitoring rather than relying on a locally connected display and keyboard for routine administration.
- Technicians assembling a compact single-socket server around a compatible Xeon E-2100/E-2200 or 8th/9th-generation processor, with ECC memory and room for PCIe or M.2 storage.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Server motherboard builds using supported Intel processors, ECC memory, SATA or M.2 storage, and quad Gigabit Ethernet |

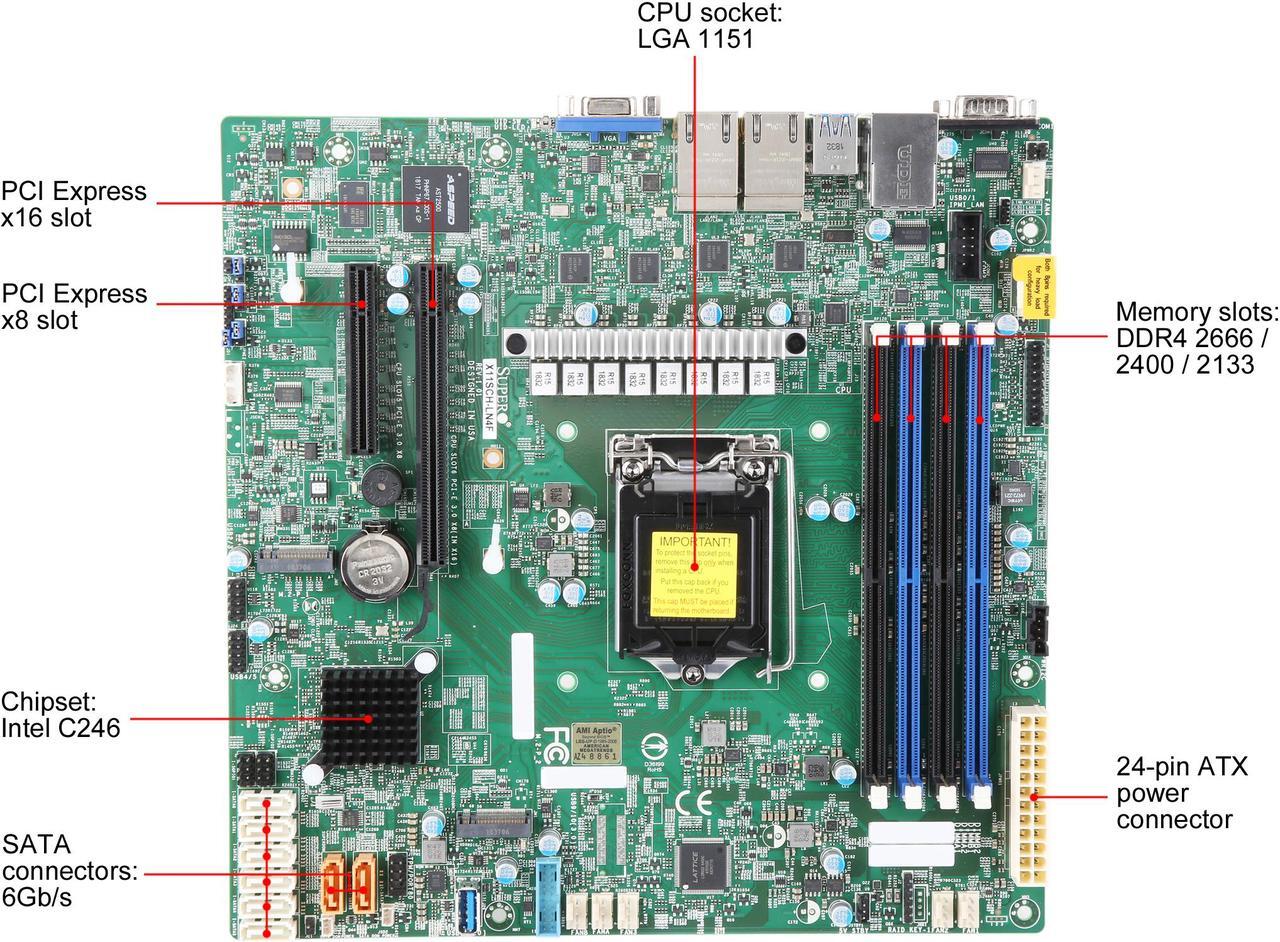

| Processor And Platform | Single LGA 1151 socket for 8th Generation Intel Core i3, Pentium, Celeron, and Xeon E-2100 series processors, with up to 95W CPU TDP support; Intel C246 chipset |
| Memory Configuration | Four DDR4 ECC UDIMM slots support up to 128GB; memory speeds include 2666, 2400, and 2133MHz |
| Expansion Slots | Two PCIe 3.0 slots: one x8 connection in an x16 slot and one x8 slot |
| Storage And RAID | Eight SATA 6Gb/s ports with RAID 0, 1, 5, and 10 support; two M.2 M-Key connectors support PCIe 3.0 x4 drives in 2280 or 22110 form factors |
| Networking | Four Gigabit Ethernet ports powered by Intel I210 controllers |
| USB And Internal I/O | Two rear USB 3.1 Gen 2 ports, three USB 3.1 Gen 1 ports (one Type-A and two via headers), and six USB 2.0 ports (two rear and four via headers) |

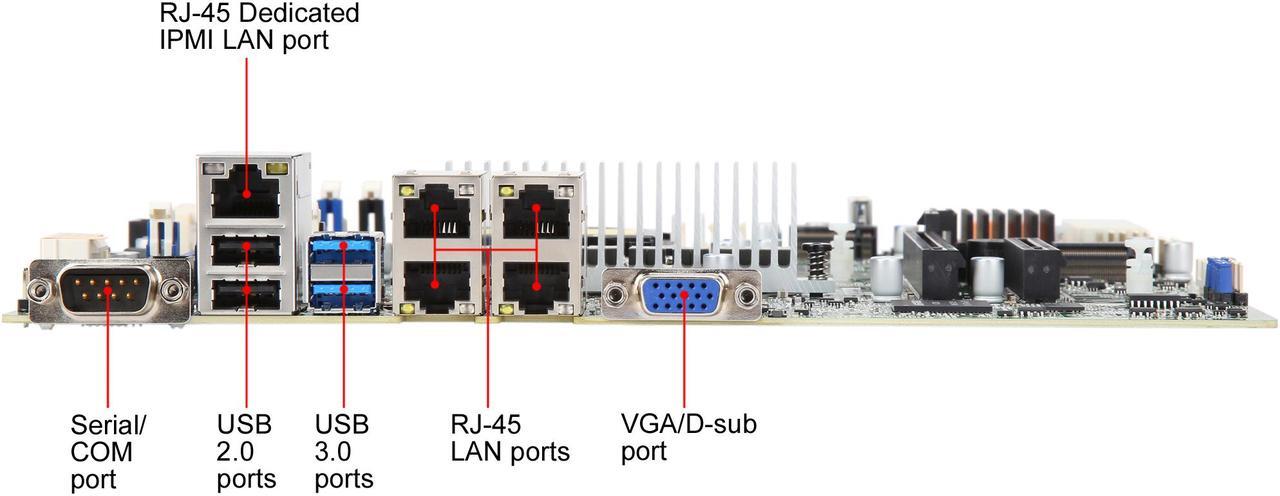

| Onboard Graphics And Rear I/O | Aspeed AST2500 BMC video chipset, one VGA port, two COM ports, and one TPM header |
| Power And Storage Connectors | 24-pin main power connector and two SuperDOM connectors with built-in power |

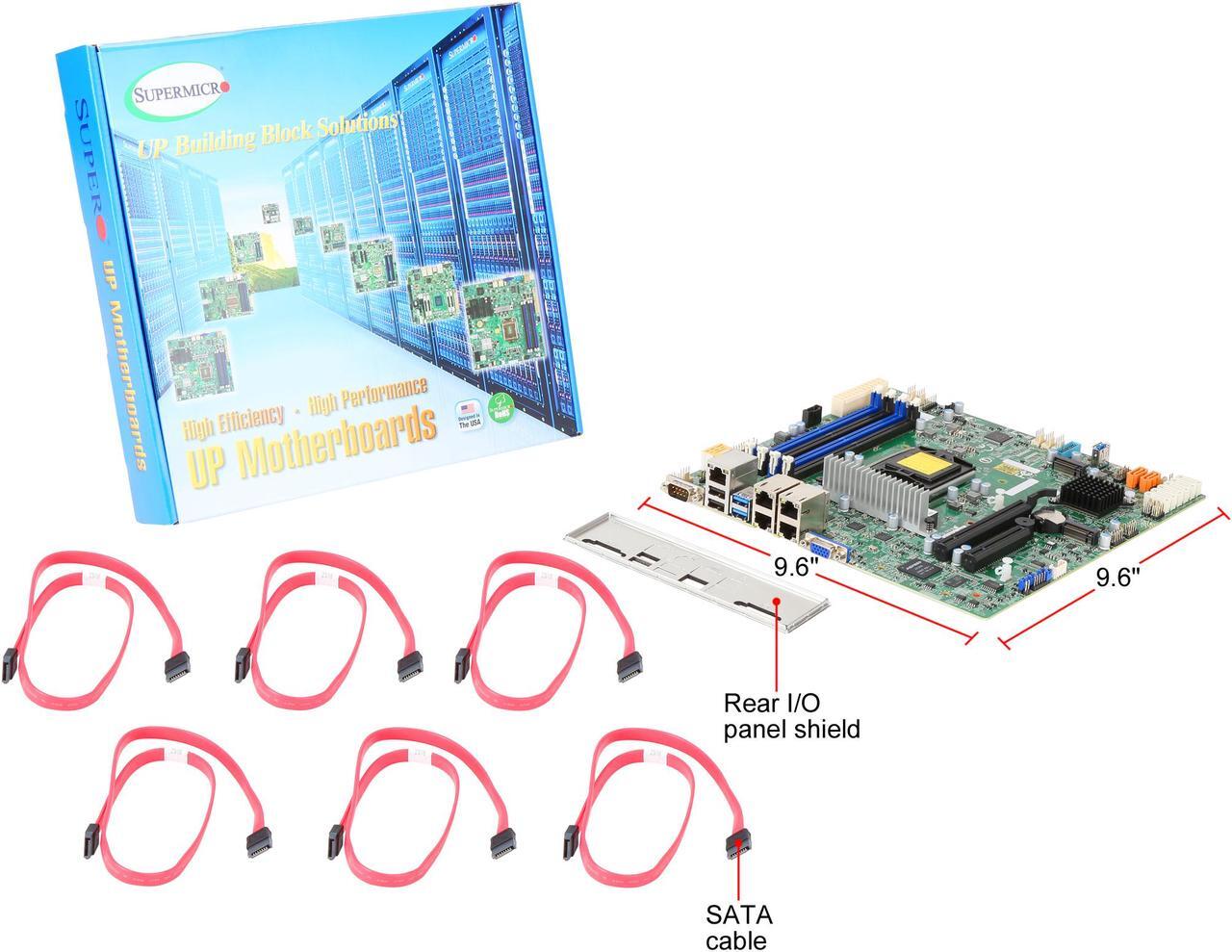

| Form Factor And Dimensions | Micro ATX board measuring 9.6 × 9.6 inches |
| Model Identifiers | SUPERMICRO MBD-X11SCH-LN4F-O |
